Honeywell SG20 Series – Barcode Scanner – 2D

Part Number: SG20BHP-002
Model: SG20 Series

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
2D
Scanner Type
CCD, Imager

Product Description:

  SG20 2D EA30,Blk,BT,USB/KBW/ RS232 I/F

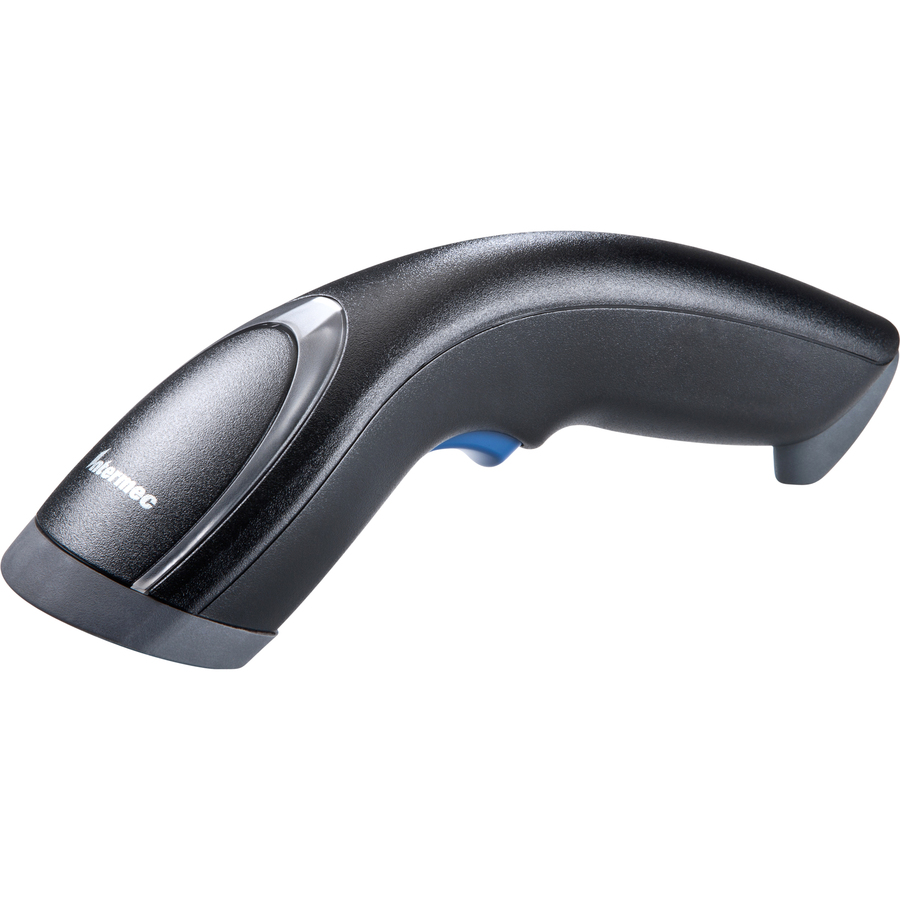

Honeywell SG20 Series Barcode Scanner Model Overview

The Intermec SG20 Series is an affordable, high-performance handheld scanner available in a range of models suited to the demands of general purpose countertop scanning. The SG20 Series Features the industry's fastest 2D-imaging technology for highly responsive, dependable scanning, a unique, ergonomic styling maximizes comfort that saves countertop space, a large LED indicator provides effective visual operational feedback, Bluetooth wireless or tethered (cabled) connectivity,integrates seamlessly with point-of-sale systems, personal computers, common software solutions and a wide range of multi-purpose accessories to increase scanner flexibility.
Honeywell SG20BHP-002 Barcode Scanner Overview

Speed up the customer checkout experience with the SG20 handheld scanner, available with the industry's fastest 2D bar code imaging technology for quick, flawless scans - every time. Ergonomically designed for the needs of countertop scanning applications in retail, office, library, and light manufacturing.

Technical Information
Connectivity Technology:
Wireless
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

1D:

  • Codabar
  • Code 11
  • Code 39
  • Code 93/93i
  • Code 128 / GS1-128
  • EAN/UPC
  • GS1 DataBar Limited
  • GS1 Composite (Linear Only)
  • GS1 DataBar Expanded
  • GS1 DataBar Omnidirectional
  • Interleaved 2 of 5
  • Matrix 2 of 5
  • MSI
  • Plessey
  • Standard 2 of 5
  • Telepen

2D:

  • Australian Post
  • Aztec
  • BPO
  • Canada Post
  • Codablock A
  • Codablock F
  • DataMatrix
  • Dutch Post
  • EAN/UPC
  • GS1 Composite
  • GS1 DataBar Stacked
  • Infomail
  • Intelligent Mail
  • Japan Post
  • Maxicode
  • Micro PDF417
  • Multicode
  • PDF417
  • Planet
  • Postnet
  • QR Code
  • Sweden Post
  • TLC 39
Light Source:
LED
Image Sensor Type:
Imager
Maximum Scan Resolution:
6.60 mil
Scan Pattern:
Omni-directional
Network & Communication
Bluetooth:
Yes
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
  • Serial
Battery Information
Battery Chemistry:
Lithium Ion (Li-Ion)
Physical Characteristics
Form Factor:
Handheld
Product Color:
Black
Height:
2.6"
Width:
2.4"
Depth:
7.9"
Weight (Approximate):
6.17 oz
Miscellaneous
Additional Information:

USB Cable separate

Platform Supported:
PC
Item Numbers
GTIN: 0735548764434, 0783555115657
UPC: 735548764434, 783555115657
EAN: 0735548764434, 0783555115657
UNSPSC: 43211701
