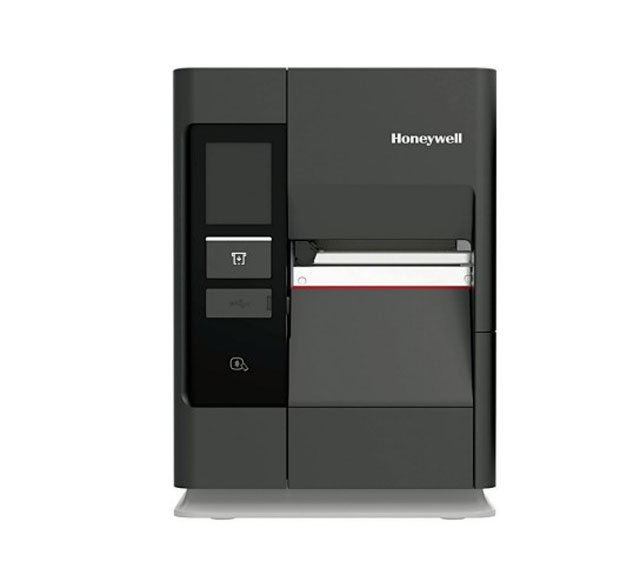

Honeywell PX940V30100060600 Barcode Label Printer

Honeywell PX940 - Industrial Printer, Honeywell PX940, Thermal Transfer, 600 dpi, 6ips, Peeler/Rewinder/Verifier, Bluetooth/Ethernet/USB Host/USB, Full Touch Display, Universal Firmware, 3" Media Hub, Ribbon Ink In/Out, Low Power Bluetooth
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Serial
Print Resolution
600 dpi
Printer Options
Peeler, Rewinder
Max Print Width
4.5 inch
Display Type
Full Touch
Ribbon Core Size
1 inch
  • Direct Thermal/Thermal Transfer Printer offers reliable performance with outstanding printing quality
  • 600 maximum print resolution (dpi) for your convenience and easy usage
  • Produce high-quality documents with this monochrome printer to increase your productivity
  • Enjoy the optimal performance in today's on-demand labeling applications
  • Share the printer easily and efficiently with various other systems with the help of built-in Ethernet port
  • 4.49" maximum label width for dependable, desired results
  • Supports label media type for better reliance and maximum usability
  • Direct Thermal/Thermal Transfer Printer with desktop application/usage provides reliable, feasible printing solution
  • Comes with 1000 MB standard memory to ensure maximum efficiency with great quality printing results
Read More
$5,509.66
3-year Premium Plus ($732.31)
3-year Premium ($578.31)
No Support
Add to Quote
Honeywell PX940 with Verifier Barcode Label Printer Model Overview
PX940 with Integrated Label Verification High-Performance Industrial Printer

The PX940 family of high-performance industrial printers with integrated label verification technology provides error-free printing. Developed
for companies that are subjected to fines levied for non-compliance to regulatory standards, and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are defect-free and 100% accurate every time. The fully integrated verifier allows for quick setting up even when printing and verifying different labels.

With pass/fail and ANSI grades from 1 to 4, bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.3 mm (0.012 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with little error tolerance.

The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer.

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, and easy printhead and tool-free platen roller replacement, help minimize downtime and maintenance needs.

The PX940 printer can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.

Key Features & Benefits:
  • Integrated label verification technology checks and ensures that labels print accurately every time; instantly notifies you of pass/fail status and ANSI grade.
  • Extremely precise printing of up to +/-0.3 mm (0.012 in) virtually eliminates poor-quality, unreadable labels and barcodes.
  • Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
  • Smart printing capability allows you to configure settings on the printer without the need for a host computer.
  • Easy to use and maintain, with a color multilingual touchscreen interface, quick side-loading design, and a built-in printhead cleaning routine that provides optimal print quality and a longer printhead life.
Honeywell PX940V30100060600 Barcode Label Printer Overview
The PX940 high-performance industrial printers with integrated label verification technology provide error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are 100% readable every time. With pass/fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.

The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system all help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5.91 in/s
Maximum Print Resolution (dpi):
600
Maximum Print Length:
21.72"
Maximum Print Width:
4.16"
Application/Usage:
Desktop
Memory
Standard Memory:
1000 MB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Label
  • Black Mark
  • Gap
  • Tag
  • Notch
  • Continuous Label
  • Roll Fed
  • Fanfold
Maximum Roll Diameter:
8.37"
Maximum Label Width:
4.49"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
15.7"
Width:
10.3"
Depth:
19.9"
Weight (Approximate):
51.81 lb
Miscellaneous
Platform Supported:
  • PC
  • Mac
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Honeywell PX940V30100060600 Barcode Label Printer is also known as HSM-PX940V301000606A or PX940V30100060600.
