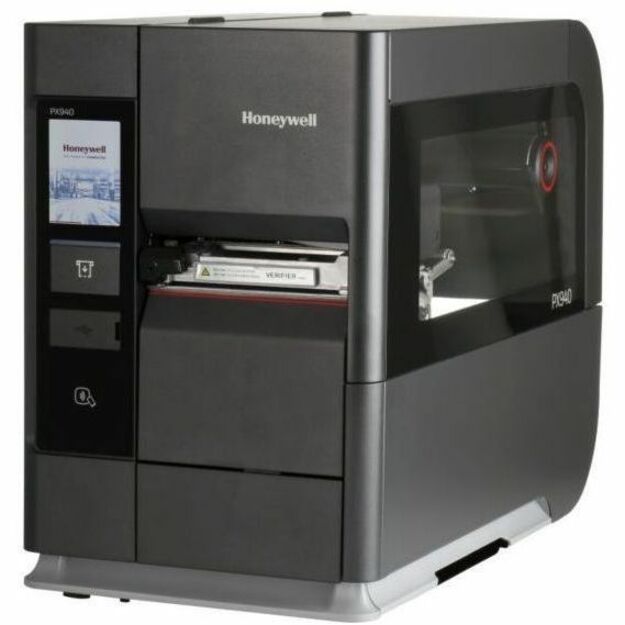

Honeywell PX940 with Verifier Barcode Label Printer Model Overview
PX940 with Integrated Label Verification High-Performance Industrial Printer
The PX940 family of high-performance industrial printers with integrated label verification technology provides error-free printing. Developed
for companies that are subjected to fines levied for non-compliance to regulatory standards, and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are defect-free and 100% accurate every time. The fully integrated verifier allows for quick setting up even when printing and verifying different labels.
With pass/fail and ANSI grades from 1 to 4, bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.3 mm (0.012 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with little error tolerance.
The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, and easy printhead and tool-free platen roller replacement, help minimize downtime and maintenance needs.
The PX940 printer can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
Key Features & Benefits:
Integrated label verification technology checks and ensures that labels print accurately every time; instantly notifies you of pass/fail status and ANSI grade.
Extremely precise printing of up to +/-0.3 mm (0.012 in) virtually eliminates poor-quality, unreadable labels and barcodes.
Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
Smart printing capability allows you to configure settings on the printer without the need for a host computer.
Easy to use and maintain, with a color multilingual touchscreen interface, quick side-loading design, and a built-in printhead cleaning routine that provides optimal print quality and a longer printhead life.
The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.
Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.
The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
What are the key features of the Honeywell PX940 industrial printer?
The Honeywell PX940 is a high-performance industrial thermal transfer printer operating at 203 dpi with print speeds up to 14 inches per second. It features Bluetooth connectivity, a full touch display, universal firmware support, and multiple connectivity options including USB, USB Host, and Ethernet. The printer comes equipped with a 3-inch media hub and supports ribbon ink in/out configurations, making it ideal for high-volume production environments.
Does the PX940 include barcode verification capabilities?
Yes, we offer the PX940 with an integrated verifier that automatically grades printed barcodes using ANSI standards (grades 1-4) and pass/fail verification. When a label fails to meet your established quality threshold, the printer automatically voids the bad label and reprints a new one, ensuring compliance with regulatory standards and eliminating costly fines from unscannable barcodes.
What industries is the Honeywell PX940 designed for?
The PX940 is purpose-built for transportation and logistics, pharmaceuticals and healthcare, shipping, distribution centers, industrial manufacturing, and automotive parts manufacturing. Its precision printing, integrated verifier, and robust connectivity make it ideal for environments requiring regulatory compliance and high-quality barcode standards.
What connectivity options does the PX940 support?
The PX940 offers comprehensive connectivity with USB, USB Host, and Ethernet interfaces, plus low-power Bluetooth capability for wireless integration. This multi-connectivity approach allows flexible deployment in diverse warehouse and manufacturing environments, whether you need wired integration with existing systems or wireless flexibility for mobile operations.
Can the PX940 handle different print languages and label formats?
Yes, the PX940 features universal firmware that supports multiple print languages, providing flexibility for various labeling requirements across different applications and regions. Combined with the 3-inch media hub and thermal transfer technology, it can handle diverse label sizes and formats commonly used in logistics, healthcare, and manufacturing operations.
What makes the PX940 suitable for regulatory compliance environments?
The integrated barcode verifier with ANSI grading (1-4) automatically validates each printed label against quality standards, preventing non-compliant barcodes from reaching your supply chain. This automatic quality control eliminates the risk of shipping unscannable labels that could result in regulatory fines, making the PX940 essential for pharmaceutical, healthcare, and regulated manufacturing operations. Contact us today to learn how we can support your compliance requirements with the PX940.
The Honeywell PX940V30100060202 Barcode Label Printer is also known as
HSM-PX940V3010006020
or PX940V30100060202.
Full specifications (PDF)
