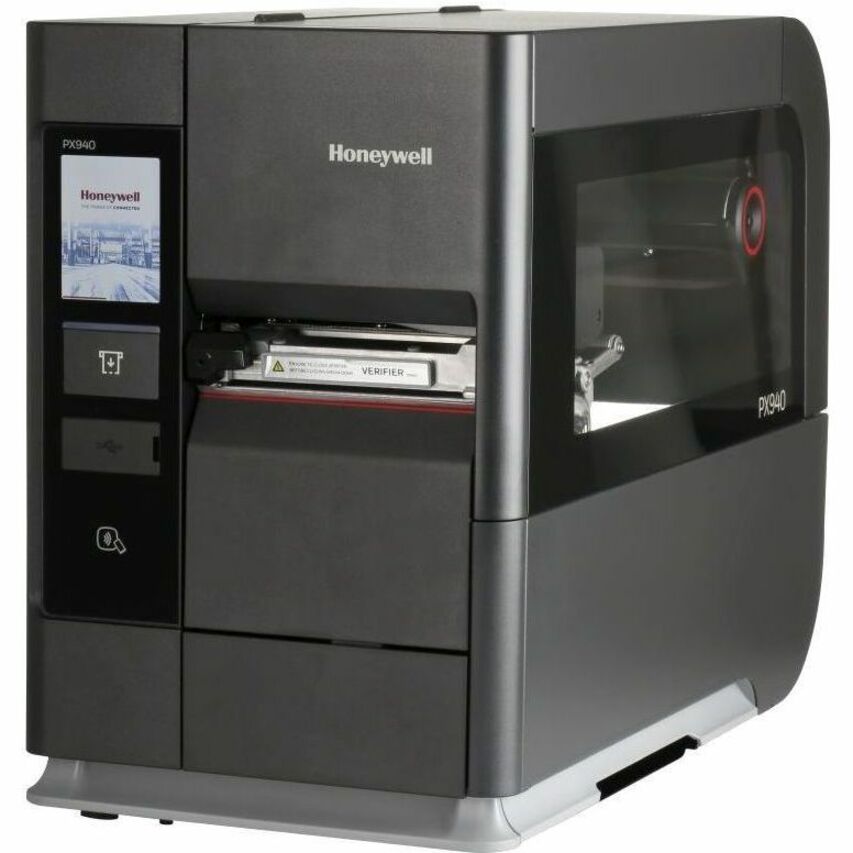

Honeywell PX940 with Verifier Barcode Label Printer Model Overview
PX940 with Integrated Label Verification High-Performance Industrial Printer
The PX940 family of high-performance industrial printers with integrated label verification technology provides error-free printing. Developed
for companies that are subjected to fines levied for non-compliance to regulatory standards, and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are defect-free and 100% accurate every time. The fully integrated verifier allows for quick setting up even when printing and verifying different labels.
With pass/fail and ANSI grades from 1 to 4, bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.3 mm (0.012 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with little error tolerance.
The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, and easy printhead and tool-free platen roller replacement, help minimize downtime and maintenance needs.
The PX940 printer can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
Key Features & Benefits:
Integrated label verification technology checks and ensures that labels print accurately every time; instantly notifies you of pass/fail status and ANSI grade.
Extremely precise printing of up to +/-0.3 mm (0.012 in) virtually eliminates poor-quality, unreadable labels and barcodes.
Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
Smart printing capability allows you to configure settings on the printer without the need for a host computer.
Easy to use and maintain, with a color multilingual touchscreen interface, quick side-loading design, and a built-in printhead cleaning routine that provides optimal print quality and a longer printhead life.
The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.
Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.
The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer.
With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
What print resolution and speed does the Honeywell PX940V30100000602 offer?
The Honeywell PX940 delivers 600 dpi print resolution at 6 inches per second (ips), providing high-quality barcode output suitable for demanding industrial applications. This combination ensures crisp, scannable labels that meet strict regulatory standards and reduce the risk of costly reprints due to quality failures.
Does the PX940 have a built-in label verifier?
Yes, this model includes an integrated verifier that automatically grades printed labels using ANSI standards (grades 1-4) and pass/fail criteria. Labels that fail to meet your established quality threshold are automatically voided and reprinted, ensuring compliance with regulatory requirements and eliminating unscannable barcodes.
What connectivity options are available on the PX940?
The PX940V30100000602 supports multiple connectivity options including USB, USB Host, Ethernet, and low-power Bluetooth, giving you flexibility in how you integrate the printer into your warehouse or distribution center network. This multi-protocol approach accommodates both legacy and modern IT infrastructure.
What industries and applications is the Honeywell PX940 designed for?
The PX940 is purpose-built for transportation and logistics, pharmaceuticals and healthcare, shipping, distribution centers, industrial manufacturing, and automotive parts manufacturers. Its high-performance thermal transfer printing and quality verification make it ideal for environments where label accuracy directly impacts compliance and operational efficiency.
What is the media handling capacity of the PX940?
The PX940 features a 3-inch media hub that accommodates various label sizes and types, supporting thermal transfer printing with ribbon ink management (both in and out). This flexible media platform allows you to print diverse label formats without requiring multiple printers.
How does the PX940 help reduce regulatory fines and compliance costs?
The integrated verifier automatically detects and rejects substandard labels before they enter your supply chain, preventing the distribution of unscannable barcodes that could trigger regulatory fines. By ensuring every printed label meets ANSI quality grades and your established standards, the PX940 eliminates costly compliance violations and customer returns.
The Honeywell PX940V30100000602 Barcode Label Printer is also known as
HSM-PX940V3010000060
or PX940V30100000602.
Full specifications (PDF)
