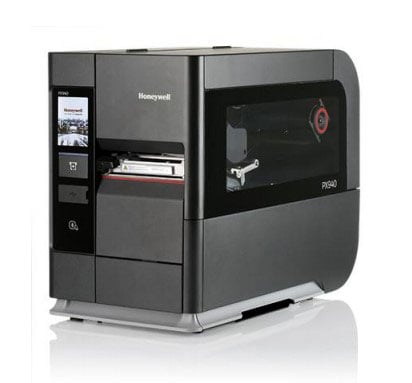

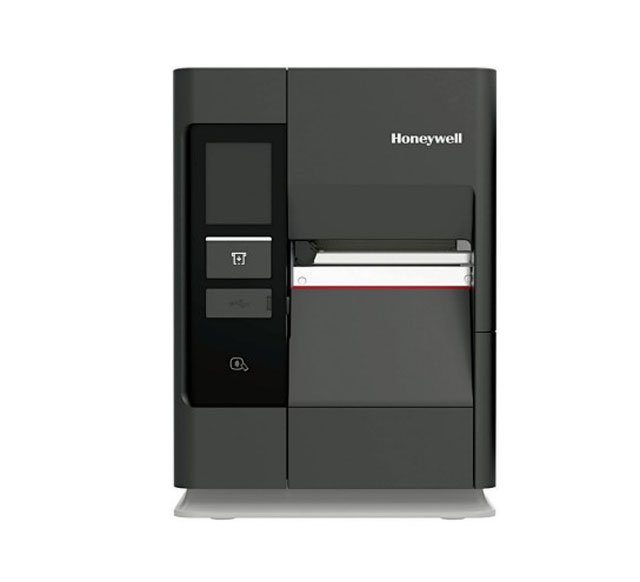

Honeywell PX940A00100060302 Barcode Label Printer

Honeywell PX940 - Industrial Printer, Honeywell PX940, Thermal Transfer, 300 dpi, 12ips, Real Time Clock, Ethernet/RS-232/USB /USB Host, Full Touch Display, Universal Firmware, 3" Media Hub, Ribbon Ink In/Out, Low Power Bluetooth, Label Taken Sensor, US Power Cord

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Serial

Print Resolution

300 dpi

Printer Options

Peeler, Real-Time Clock, Rewinder, Label Taken Sensor

Max Print Width

4.5 inch

Display Type

LCD

Ribbon Core Size

1 inch

A smart choice for carrying out high volume label printing in multiple areas with reduced cost of ownership
300 maximum print resolution (dpi) for your convenience and easy usage
The printer is capable of printing sharp and detailed monochrome documents quickly
Label Print gives dependable results with maximum productivity
Optimize your workflows by sharing the resources of the printer via Ethernet connectivity
4.49" maximum label width for dependable, desired results
0.24" maximum label length to easily accommodate your needs with added productivity
Supports label media type for dependable, efficient results with maximum productivity
Direct Thermal/Thermal Transfer Printer with desktop application/usage provides maximum usability with better reliance
Rugged feature for better reliance and usability

Need a different version? See all Honeywell PX940 Barcode Label Printers

$3,773.52

Recommended TrueSupport Coverage (/mo.)

Add to Quote

Honeywell PX940A00100060302 Barcode Label Printer

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

11.81 in/s

Maximum Print Resolution (dpi):

300

Maximum Print Length:

86.64"

Maximum Print Width:

4.16"

Barcode Symbology Supported:

Code 39
HIBC Code 39
Code 93
Code 128
ISBT-128
HIBC Code 128
EAN 128
GS1-128
EAN-8
EAN-13
UPC-A
Interleaved 2 of 5
SCC-14
RSS14E
GS1 DataBar Expanded
Data Matrix
ISBT Data Matrix
QR Code

Peel Facility:

Yes

Real Time Clock:

Yes

Rewinder:

Yes

Application/Usage:

Desktop
Industrial
Transportation & Logistic
Pharmacy
Healthcare

Features:

Rugged

Mobile Device Printing:

Yes

Memory

Standard Memory:

1 GB

Interfaces/Ports

Serial Port:

Yes

USB Host:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Bluetooth:

Yes

Near Field Communication (NFC):

Yes

Display & Graphics

Display Screen:

Yes

Screen Size:

3.5"

Display Screen Type:

LCD

Touchscreen:

Yes

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Notch
Tag
Continuous Label

Media Sensor:

Label Taken Sensor

Media Thickness:

10 mil

Maximum Roll Diameter:

8.37"

Maximum Label Width:

4.49"

Maximum Label Length:

0.24"

Fonts & Emulation

Language Emulation:

ZPL II
ZSim2
Direct Protocol (DP)
Fingerprint
Intermec Printer Language (IPL)
DPL
WMS
XML

Power Description

Power Source:

AC Supply

Frequency:

50 Hz
60 Hz

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Storage Temperature:

158°F (70°C)

Physical Characteristics

Height:

15.7"

Width:

10.3"

Depth:

19.9"

Weight (Approximate):

50.71 lb

Miscellaneous

Platform Supported:

PC
Android
iOS

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS

Item Numbers

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Honeywell PX940A00100060302 Barcode Label Printer is also known as HSM-PX940A0010006030 or PX940A00100060302.
