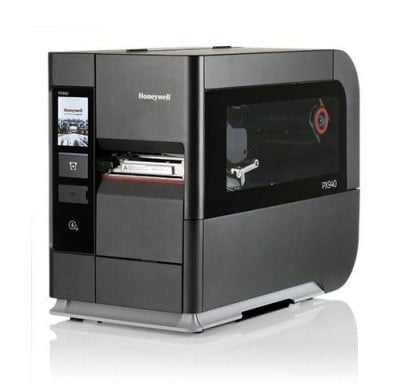

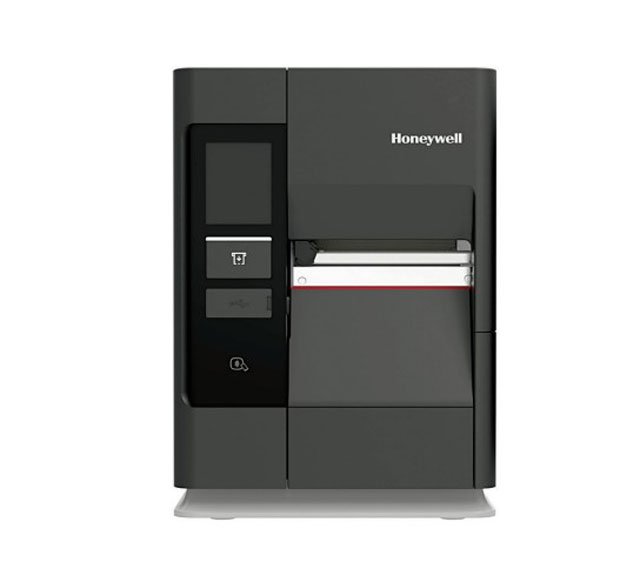

Honeywell PX940 – Barcode Label Printer – 300 dpi – Thermal Transfer – Peeler, Real-Time Clock, Rewinder

Part Number: PX940A00100060300
Model: PX940
3-year Premium Plus ($721.73)
3-year Premium ($567.73)
No Support
Add to My Shopping List Add to Compare
$3,810.34
Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Bluetooth, Ethernet, Serial (RS-232), USB, USB Host, Serial
Print Resolution
300 dpi

Product Description:

  Industrial Printer, Honeywell PX940, Thermal Transfer, 300 dpi, 12ips, Real Time Clock, Ethernet/RS-232/USB /USB Host, Full Touch Display, Universal Firmware, 3" Media Hub, Ribbon Ink In/Out, Low Power Bluetooth, Label Taken Sensor
Explore all Honeywell PX940 with Verifier Barcode Label Printers
Add to Quote
Honeywell PX940A00100060300 Barcode Label Printer
Honeywell PX940A00100060300 Barcode Label Printer
Honeywell PX940A00100060300 Barcode Label Printer
Honeywell PX940A00100060300 Barcode Label Printer
Honeywell PX940A00100060300 Barcode Label Printer Honeywell PX940A00100060300 Barcode Label Printer Honeywell PX940A00100060300 Barcode Label Printer

Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Honeywell PX940 with Verifier Barcode Label Printer Model Overview

PX940 with Integrated Label Verification High-Performance Industrial Printer

The PX940 family of high-performance industrial printers with integrated label verification technology provides error-free printing. Developed
for companies that are subjected to fines levied for non-compliance to regulatory standards, and returned shipments due to unreadable barcodes, the PX940 series prints barcodes that are defect-free and 100% accurate every time. The fully integrated verifier allows for quick setting up even when printing and verifying different labels.

With pass/fail and ANSI grades from 1 to 4, bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.3 mm (0.012 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with little error tolerance.

The PX940 printers are suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® and smart printing capability, in which users can configure and fine-tune settings without the need for a host computer.

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, and easy printhead and tool-free platen roller replacement, help minimize downtime and maintenance needs.

The PX940 printer can support a wide range of media – including ink-in and ink-out ribbons with one-inch core size – enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.

Key Features & Benefits:
  • Integrated label verification technology checks and ensures that labels print accurately every time; instantly notifies you of pass/fail status and ANSI grade.
  • Extremely precise printing of up to +/-0.3 mm (0.012 in) virtually eliminates poor-quality, unreadable labels and barcodes.
  • Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
  • Smart printing capability allows you to configure settings on the printer without the need for a host computer.
  • Easy to use and maintain, with a color multilingual touchscreen interface, quick side-loading design, and a built-in printhead cleaning routine that provides optimal print quality and a longer printhead life.
Honeywell PX940A00100060300 Barcode Label Printer Overview
High-Performance Industrial Printer with Integrated Label Verification

The PX940 high-performance industrial printer with integrated label verification technology provides error-free printing.

Developed for companies that are subjected to fines levied for non-compliance to regulatory standards and returned shipments due to unreadable barcodes, the PX940 prints barcodes that are 100% readable every time. With pass/ fail and ANSI grades from 0.0 (F) to 4.0 (A), bad labels that do not meet an established threshold are voided and a new label is reprinted. The PX940 printer has print registration of up to +/- 0.2 mm (0.0079 in). The trend toward miniaturization requires printing on smaller and smaller labels. The PX940 will print accurately on small labels, edge to edge with high precision.

The PX940 printer is suited for transportation and logistics, pharmaceuticals and healthcare, shipping and distribution centers, industrial manufacturing, automotive parts suppliers, and applications that are regulated and require high precision and error-free printing. The PX940 printer is available in two versions: one with the integrated verifier, and an option without the integrated verifier. Both versions are available with standard features such as Bluetooth® LE, used with Print Set MC and smart printing capability. Smart printing allows users to configure printer settings and print without the need for a host computer

With a Honeywell firmware platform that supports multiple print languages, the PX940 printer is an easy replacement for competitive printers. A rugged all-metal print mechanism, easy printhead and tool-free platen roller replacement, and a predictive maintenance system help to minimize downtime and maintenance. The PX940 printer can support a wide range of media - including ink-in and inkout ribbons with one-inch core size - enabling maximum time between media resupply. Fast time-to-label and print speeds of up to 350 mm/s (14 ips) ensure that the PX940 printer can scale with the changing needs of dynamic operations.
Full specifications (PDF)
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
11.81 in/s
Maximum Print Resolution (dpi):
300
Maximum Print Length:
86.64"
Maximum Print Width:
4.16"
Application/Usage:
Desktop
Mobile Device Printing:
Yes
Print Technology:
Direct Thermal /Thermal Transfer
Memory
Standard Memory:
1 GB
Interfaces/Ports
Serial Port:
Yes
USB:
Yes
Network & Communication
Ethernet:
Yes
Bluetooth:
Yes
Near Field Communication (NFC):
Yes
Media Types & Handling
Media Type:
  • Label
  • Gap
  • Black Mark
  • Notch
  • Tag
  • Continuous Label
Maximum Roll Diameter:
8.37"
Maximum Label Width:
4.49"
Power Description
Power Source:
AC Supply
Physical Characteristics
Height:
15.7"
Width:
10.3"
Depth:
19.9"
Weight (Approximate):
50.71 lb
Miscellaneous
Platform Supported:
  • PC
  • Android
  • iOS
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108

Recommended Accessories

Category

  • Cables, Connectors, and Adapters (1)
  • Printer Accessories (8)
  • Spare Parts (4)

Recommended Accessories for Model: Honeywell PX940A00100060300 Barcode Label Printer

Top Cables, Connectors, and Adapters Purchased With Honeywell PX940A00100060300

Top Printer Accessories Purchased With Honeywell PX940A00100060300

See All Printer Accessories for Honeywell PX940A00100060300 Barcode Label Printer >

Top Spare Parts Purchased With Honeywell PX940A00100060300

See All Spare Parts for Honeywell PX940A00100060300 Barcode Label Printer >

Frequently Asked Questions

The Honeywell PX940 is a high-performance industrial printer featuring 300 dpi resolution, 12 inches per second print speed, thermal transfer technology, and a full touch display for easy operation. It includes multiple connectivity options (Ethernet, RS-232, USB, USB Host), low power Bluetooth capability, real-time clock functionality, and a 3-inch media hub with ribbon ink in/out monitoring. The printer also offers an integrated label verifier option that automatically voids and reprints labels that don't meet ANSI quality grades 1-4, helping ensure compliance with regulatory standards.

Yes, the PX940 is specifically designed for pharmaceutical and healthcare applications where regulatory compliance is critical. Its integrated verifier option with pass/fail and ANSI grade verification (1-4) ensures that only compliant labels are produced, protecting your organization from fines and costs associated with unscannable barcodes. We offer the PX940 with or without the integrated verifier to match your specific compliance requirements.

The Honeywell PX940 supports multiple connectivity standards including Ethernet, RS-232 serial, USB, USB Host, and low power Bluetooth, making it flexible for integration into various warehouse and logistics environments. This multi-protocol approach allows you to connect the printer to existing network infrastructure, legacy systems, or mobile devices without requiring extensive reconfiguration. Contact us today to discuss which connectivity options best fit your operational setup.

The PX940 is purpose-built for transportation and logistics, pharmaceuticals and healthcare, shipping, distribution centers, industrial manufacturing, and automotive parts manufacturing. Its combination of precision printing, quality verification, and robust connectivity makes it ideal for high-volume environments where label accuracy directly impacts regulatory compliance and operational efficiency. Available from us with configurations tailored to your industry's specific demands.

The Honeywell PX940 includes a real-time clock and label taken sensor to monitor printer activity and ensure consistent operation in demanding warehouse and distribution environments. The thermal transfer printing technology provides reliable performance across varying temperature and humidity conditions typical of industrial facilities. Visit barcodesinc.com for detailed environmental specifications and to confirm compatibility with your facility's operating conditions.

Yes, the Honeywell PX940 features universal firmware that supports multiple print languages and label formats, allowing you to standardize on a single printer platform across different regions and applications. This flexibility reduces training requirements and simplifies supply chain management when operating in diverse logistics and manufacturing environments. Contact us today to discuss specific language and format requirements for your operation.

The Honeywell PX940A00100060300 Barcode Label Printer is also known as HSM-PX940A001000603 or PX940A00100060300.
