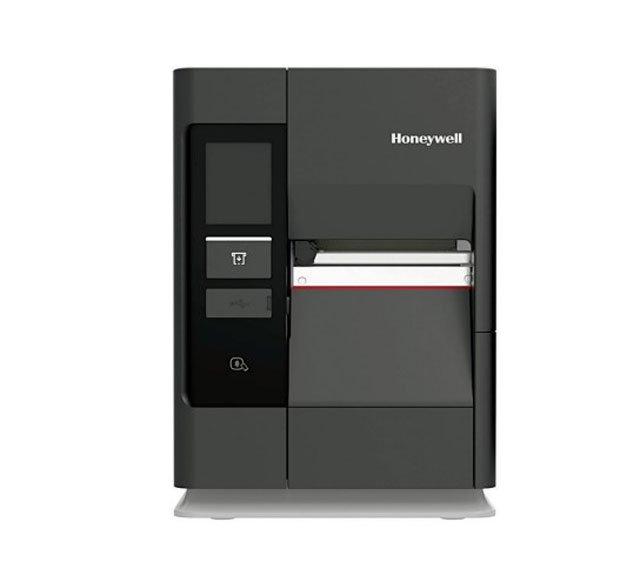

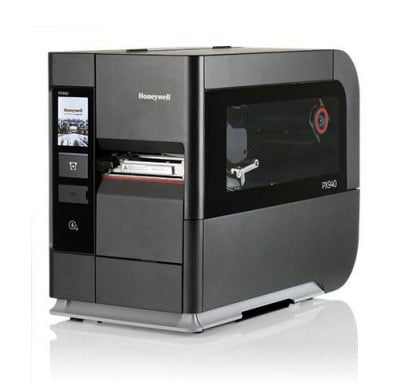

Honeywell PX940A00100060202 Barcode Label Printer

Honeywell PX940 - Industrial Printer, Honeywell PX940, Thermal Transfer, 203 dpi, 14ips, Peeler/Rewinder, Bluetooth/Ethernet/USB Host/USB, Label Taken Sensor, Ribbon Ink In/Out, US Power Cord

Printer Type

Industrial

Printing Technology

Thermal Transfer

Interface Options

Bluetooth, Ethernet, Serial (RS-232), USB, USB Host

Print Resolution

203 dpi

Printer Options

Peeler, Real-Time Clock, Rewinder

Max Print Width

4.5 inch

Display Type

LCD

Ribbon Core Size

1 inch

Integrated label verification technology checks and ensures that barcodes are accurate every time; instantly notifies you of pass/fail status and ANSI grade.
Extremely precise printing of up to +/-0.2 mm (0.0079 in) virtually eliminates poor-quality, unreadable labels and barcodes.
Operational Intelligence software provides predictive analytics and data on printer health to help managers oversee their entire printer fleet and proactively prevent issues, ensuring maximum uptime.
Smart printing capability allows users to configure and print without the need for a host computer.
Easy to use and maintain, with a color multilingual touchscreen interface and quick side-loading design.

Need a different version? See all Honeywell PX940 Barcode Label Printers

$3,084.36

Recommended TrueSupport Coverage (/mo.)

Quantity	Unit Price	Discount
2	$3,053.52	1% OFF
5	$2,991.83	3% OFF

Add to Quote

Honeywell PX940A00100060202 Barcode Label Printer

Detailed Specs

Full specifications (PDF)

Technical Information

Recommended Use:

Label Print

Print Color Capability:

Monochrome

Maximum Mono Print Speed:

14 in/s

Maximum Print Resolution (dpi):

203

Maximum Print Length:

15.75 ft

Maximum Print Width:

4.25"

Barcode Symbology Supported:

Code 39
HIBC Code 39
Code 93
Code 128
ISBT-128
HIBC Code 128
GS1-128
EAN-8
EAN-13
UPC-A
UPC-E
Interleaved 2 of 5
ITF-14
GS1 DataBar Expanded
Data Matrix
QR Code
1D
2D
UPC/EAN Shipping Container
POSTNET
UCC/EAN 128 Serial Shipping Container
HIBCC
GM1724
OGMARS
AIAG
MH10.8
ISBT Data Matrix
RSS14E
SCC-14
EAN 128

Peel Facility:

Yes

Real Time Clock:

Yes

Rewinder:

Yes

Application/Usage:

Desktop
Industrial

Features:

Rugged

Connectivity Technology:

Wired

Fonts Included:

Monotype font engine
non-Latin fonts available through WTLE

Memory

Standard Memory:

1 GB

Interfaces/Ports

USB Host:

Yes

USB:

Yes

Network & Communication

Ethernet:

Yes

Ethernet Technology:

Fast Ethernet

Bluetooth:

Yes

Near Field Communication (NFC):

Yes

Display & Graphics

Display Screen:

Yes

Screen Size:

3.5"

Display Screen Type:

LCD

Media Types & Handling

Media Type:

Label
Gap
Black Mark
Tag
Notch
Continuous Label
Roll Fed
Fanfold

Media Thickness:

10 mil

Maximum Roll Diameter:

8.37"

Maximum Label Width:

4.49"

Fonts & Emulation

Language Emulation:

ZSim2
DPL
XML
IPL
ZPL II
DP
FP
WMS

Software

Software Included:

Fingerprint (FP)
Direct Protocol (DP)
Intermec Printer Language (IPL) support on 203 dpi and 300 dpi only
ZSim2 (ZPL-II)
DPL
XML-enabled for SAP® AII and Oracle® WMS

Power Description

Power Source:

AC Supply

Input Voltage:

120 V AC
230 V AC

Environmental Conditions

Operating Temperature:

41°F (5°C) - 104°F (40°C)

Operating Relative Humidity:

20% - 85%

Storage Temperature:

-4°F (-20°C) - 158°F (70°C)

Physical Characteristics

Height:

15.7"

Width:

10.3"

Depth:

19.9"

Weight (Approximate):

50.71 lb

Miscellaneous

Power Cable Localization:

Platform Supported:

PC
Android
iOS

Energy Star:

Yes

Environmentally Friendly:

Yes

Environmental Certification:

RoHS
ENERGY STAR 2.0

Item Numbers

GTIN: 0783555262696

UPC: 783555262696

EAN: 0783555262696

UNSPSC: 43212108

Q&A

Questions? Get help from a
Printer Expert!

The Honeywell PX940A00100060202 Barcode Label Printer is also known as HSM-PX940A0010006020 or PX940A00100060202.
