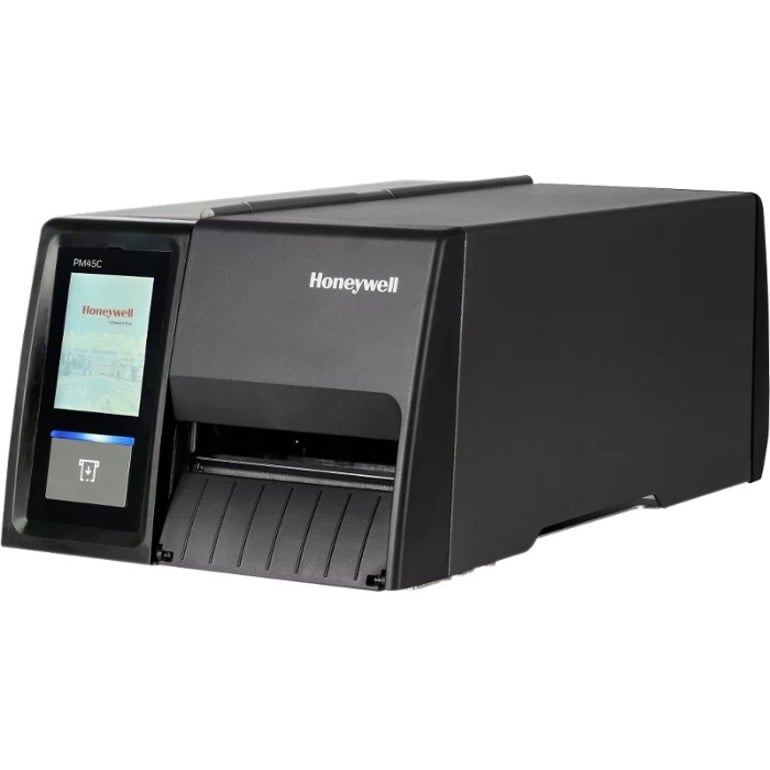

Honeywell PM45CA0000030200 Barcode Label Printer

Honeywell PM45C - Barcode Label Printer, Honeywell PM45 Compact, Icon Display, Ethernet, Fixed Hanger, Rewinder, Label Taken Sensor, Thermal Transfer, 203 DPI, No Power Cord
Printer Type
Industrial
Printing Technology
Thermal Transfer
Interface Options
Ethernet, USB, Serial
Print Resolution
203 dpi
Printer Options
Rewinder, Label Taken Sensor
  • Thermal Transfer Printer for maximum label/receipt printing usability and feasibility
  • 203 maximum print resolution (dpi) for your convenience and easy usage
  • Monochrome print color capability to meet your printing requirements with maximum efficiency
  • Enjoy the optimal performance in today's on-demand labeling applications
  • 4.49" maximum label width for your convenience and feasible usability
  • Supports gap media type for maximum feasibility and better accommodation of your requirements
  • Thermal Transfer Printer with industrial application/usage provides maximum usability with better reliance
  • Rugged feature for maximum efficiency and convenience
  • Comes with 256 MB standard memory to ensure maximum efficiency with great quality printing results
  • Wired connectivity technology allows convenient and reliable connectivity for maximum efficiency
Read More
$2,957.85
Recommended TrueSupport Coverage (/mo.)

x

Are you sure you don't need TrueSupport?

The average internal IT
cost for device support is over per year!

With TrueSupport you're
covered - and for way less!
  • Hardware Helpdesk Support
  • RMA Repair Facilitation
  • OEM Service Contract Management
  • Premium Phone & Email Support
  • Billed annually per device

Only /month
Subtotal ( items)

x
You've just added this product to the cart:

Go To Cart
Add to Quote
Honeywell PM45C Barcode Label Printer Model Overview
The Honeywell PM45c industrial printer offers a compact solution designed to tackle increasing challenges relating to production flexiblity, cost control, and inventory turnover. The PM45c offers businesses reliable high-volume printing through its versatility and precision. With print registration of up to +/- 0.5mm, the PM45c can ensure high print quality even on small electronic components and pharmaceutical labels. The PM45c makes last minute changes simple through the embedded Honeywell Smart Parse software that allows for quick position changes, sizing of objects and barcodes, and font type on labels, without requiring changes to a backend system or any additional programming.
Honeywell PM45CA0000030200 Barcode Label Printer Overview
Enterprises today are facing increasing challenges on production flexibility, inventory turnover, and cost control. The Honeywell PM45 industrial printer is designed to give businesses the flexibility and precision for high-volume printing. The PM45 printer's track-and-trace functionality is aimed at improving print efficiency and supply chain transparency within a variety of industries, including food and beverage, pharmaceuticals, manufacturing, warehouse, and distribution center management.

Built on the Honeywell print platform, the durable PM45 printer offers print speeds of up to 14 ips. With print registration of up to +/-0.5 mm, the PM45 printer can ensure high-quality prints for barcodes, texts, and images, even on small electronic components and medical device labels.

As a highly connected industrial printer, the PM45 is packed with enhanced WWAN connectivity to enable deployment with minimal limitation from site network topology. The PM45 printer's versatility allows the user to incorporate RFID, parallel, industrial, and applicator interfaces to address unpredictable future business needs. To help your transformation to intelligent manufacturing and supply chain management, the PM45 printer supports variable network protocols and multiple print languages to enable easy integration into your system, whether it is cloud-based or on a local server.

Embedded with Honeywell's Smart Parse software, the PM45 allows for quick position changes, sizing of objects and barcodes, or font type on labels, without the need for backend system changes or programming skills. With Honeywell's Operational Intelligence software, users can remotely manage and monitor the PM45 printer's diagnostics and output performance. The PM45 supports a wide range of media - including ink-in and ink-out ribbons with a 1-inch core size - enhancing the time between media resupplies.

The PM45 printer is an ideal replacement for existing Honeywell or mixed printers, especially with Honeywell's firmware platform supporting multiple print languages. A rugged, all-metal print mechanism, easy printhead, and tool-free platen roller replacement helps minimize downtime and maintenance needs.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
13.78 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Length:
15.75 ft
Maximum Print Width:
4.25"
Barcode Symbology Supported:
  • 1D
  • 2D
  • UPC/EAN Shipping Container
  • UCC/EAN 128 Serial Shipping Container
  • POSTNET
  • HIBCC
  • ISBT-128
  • GM1724
Peel Facility:
Yes
Application/Usage:
Industrial
Features:
  • Rugged
  • Liner Take Up Spindle
Connectivity Technology:
Wired
Memory
Standard Memory:
256 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Network Ready:
Yes
Ethernet:
Yes
Ethernet Technology:
Gigabit Ethernet
Media Types & Handling
Media Type:
  • Gap
  • Notch
  • Black Mark
  • Continuous Label
  • Label
Maximum Roll Diameter:
5.98"
Maximum Label Width:
4.49"
Fonts & Emulation
Language Emulation:
  • Fingerprint
  • IPL
  • ZSim2
  • ZPL II
  • DPL
  • XML
  • Direct Protocol (DP)
Power Description
Power Source:
AC Supply
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
20% - 85%
Storage Temperature:
-4°F (-20°C) - 158°F (70°C)
Storage Relative Humidity:
5% - 90%
Physical Characteristics
Height:
7.1"
Width:
10"
Depth:
17"
Weight (Approximate):
27.78 lb
Miscellaneous
Platform Supported:
PC
Energy Star:
Yes
Item Numbers
UNSPSC: 43212108
Questions? Get help from a
Printer Expert!

How many labels will you print per day?

The Honeywell PM45CA0000030200 Barcode Label Printer is also known as HSM-PM45CA0000030200 or PM45CA0000030200.
