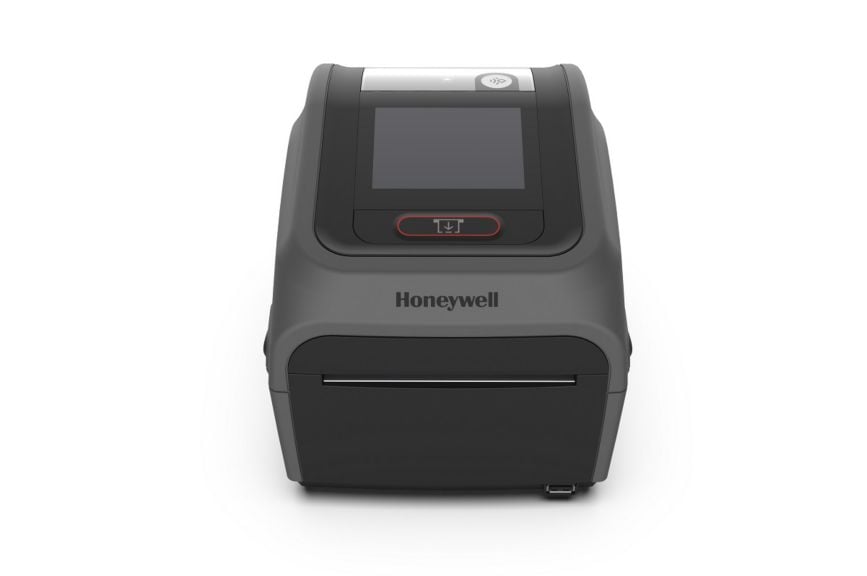

Honeywell PC45T – Barcode Label Printer – 300 dpi – Thermal Transfer – Real-Time Clock
Full specifications (PDF)
Honeywell PC45 Barcode Label Printer Model Overview
Key features:
- Honeywell Operational Intelligence: Gain actionable insights into mobility devices, printer usage, and network connectivity.
- Enhanced Connectivity: Experience seamless connections with Wi-Fi 5 and Bluetooth 5.1 LE for continuous productivity.
- Smart Parse Technology: Easily resize objects, barcodes, or fonts without backend adjustments.
- Optimized Workflow: Low label and ribbon warnings predict and reduce downtime.
- Diverse Accessories: A wide range of accessories is available to meet various customer needs.
Specifications:
- Mechanical Characteristics:
- PC45d: 168 mm L x 181.3 mm W x 215.6 mm H, Weight: 1.8 kg
- PC45t: 179.6 mm L x 212.9 mm W x 285.5 mm H, Weight: 2.7 kg
- Environmental:
- Operating Temperature: 0°C to 45°C
- Storage Temperature: -20°C to 70°C
- Humidity: 10% to 90%, non-condensing
- Print Specifications:
- Max Width at 203 dpi: 108 mm
- Print Speed (203 dpi): 2ips to 8ips
- Print Resolution: 203 dpi (8 dots/mm), 300 dpi (12 dots/mm)
- Wireless Connectivity:
- WLAN: IEEE 802.11 a/b/g/n/ac
- Supported EAP: TTLS, TLS, PEAP, LEAP
- Bluetooth: Bluetooth 5.2
- Power Supply:
- Input: 100-240V AC/50-60 Hz
- Output: 24V DC, 3.15 A
- Warranty: Two-year warranty with additional service packages available.
Recommended Accessories
Category
- Printer Accessories (11)
Recommended Accessories for Model: Honeywell PC45T000003300 Barcode Label Printer
Top Printer Accessories Purchased With Honeywell PC45T000003300
-
Honeywell 205-187-001 AccessoryPrinter Spare Parts, Honeywell, Self-Strip Module, Label Taken Sensor. Compatible with PC45DIn Stock$48.23 -
Honeywell 205-187-002 AccessoryPrinter Spare Parts, Honeywell, Platen Roller, Compatible with PC45DIn Stock$33.54 -
Honeywell 205-187-003 AccessoryPrinter Spare Parts, Honeywell, Linerless Platen Roller, PC45DItem on backorder — chat for lead time$33.54
Frequently Asked Questions
What connectivity options does the Honeywell PC45T offer?
The PC45T delivers comprehensive connectivity with Wi-Fi 5 and Bluetooth 5.1 LE as standard features, along with Ethernet for wired connections. It also supports optional WWAN connectivity, giving you flexible deployment options whether your operation requires wireless, wired, or hybrid network configurations. This multi-connectivity approach ensures your barcode printing stays connected and productive in any warehouse or logistics environment.
Is the Honeywell PC45T compatible with Printer Edge management?
Yes, the PC45T is fully compatible with the Honeywell Printer Edge platform, which provides centralized management for your entire printer network. Printer Edge delivers real-time visibility into printer performance, automated software updates, and enhanced security features—helping you optimize operations and reduce downtime across your organization. This enterprise-level management capability makes the PC45T ideal for larger deployments requiring coordinated printer administration.
What are the main improvements of the PC45T over the previous PC43 series?
The PC45T represents the next generation of desktop printers, building on the proven E-class and PC43 series with enhanced features including a large touch screen interface, improved enterprise-level ruggedness, and a broader range of new accessories. The PC45T also adds modern connectivity with Wi-Fi 5 and Bluetooth 5.1 LE, plus integration with Honeywell Printer Edge for centralized management—capabilities that weren't available in earlier generations. These upgrades make the PC45T better suited for rapidly changing warehouse and logistics environments.
What print specifications does the Honeywell PC45T provide?
The PC45T is a 4-inch thermal transfer barcode label printer with 300 DPI resolution, delivering sharp, high-quality barcode output suitable for warehouse and logistics applications. It features 1.0 inch notchless ribbon adapters and includes a real-time clock (RTC) for timestamp accuracy on printed labels. The printer comes equipped with a power supply and supports Latin font for flexible labeling needs.
Can the PC45T predict maintenance needs to avoid downtime?
Yes, the PC45T includes optional low media and low ribbon enabled sensors that provide predictive maintenance capabilities, helping you avoid unexpected downtime. These sensors give you real-time warnings when supplies are running low, allowing you to proactively replenish labels and ribbons before operations are interrupted. This intelligent monitoring is part of Honeywell's commitment to optimizing workflow efficiency in demanding warehouse environments.
What makes the PC45T suitable for enterprise warehouse operations?
The PC45T is purpose-built for enterprise environments with its enterprise-level ruggedness, large touch screen interface, and integration with Honeywell Printer Edge for network-wide management. Its compact design combines powerful performance with reliable connectivity options (Wi-Fi 5, Bluetooth 5.1 LE, Ethernet, and optional WWAN), making it adaptable to various warehouse layouts and deployment scenarios. Contact us today to learn how the PC45T can optimize your barcode printing infrastructure.
