Honeywell PC42T – Barcode Label Printer – 203 dpi – Thermal Transfer

Part Number: PC42TPE01062
Model: PC42T

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Printer Type
Desktop
Printing Technology
Thermal Transfer
Interface Options
USB
Print Resolution
203 dpi

Product Description:

  Desktop Printer, Honeywell PC42T, Thermal Transfer, 203 dpi, 4ips, ZPL 2/DPL/DP/EPL, USB/USB Host, Ribbon Sample, US Power Cord

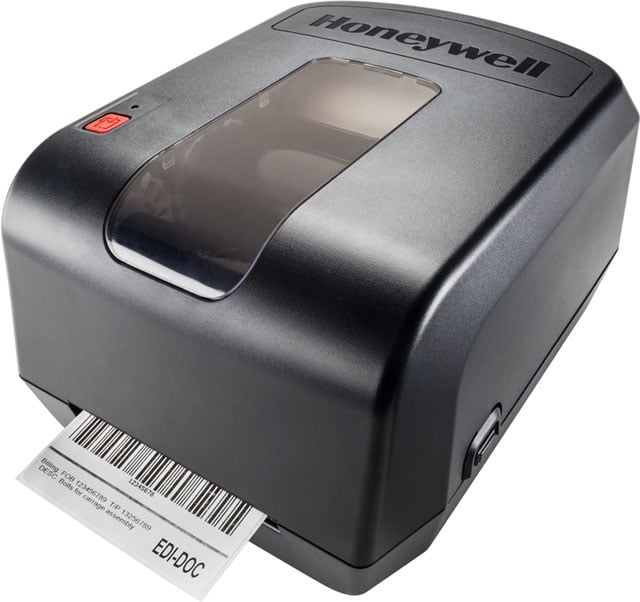

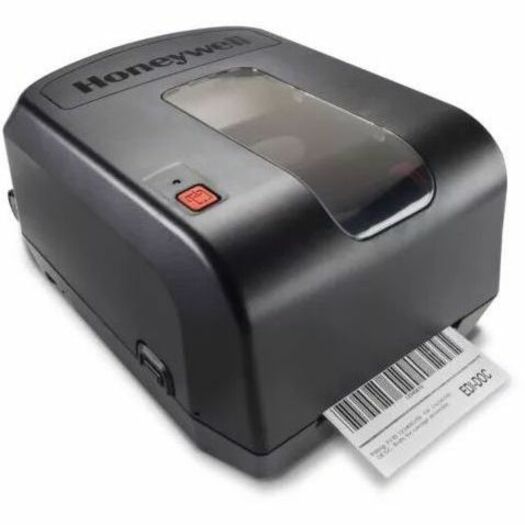

Honeywell PC42t Barcode Label Printer Model Overview

The Honeywell PC42T 4" Desktop Printer is your perfect solution for efficient and affordable thermal label printing. Designed with over 40 years of expertise in barcode technology, this compact printer offers exceptional user-friendliness and rapid installation. Ideal for light-duty labeling needs in a range of industries, it supports media widths up to 110 mm (4.3 in) and features extensive connectivity options, including USB and Ethernet. Maximize productivity with fewer interruptions thanks to its support for longer ribbon lengths, which can be shared across various printers.


Key Features
  • Economical solution for light-duty thermal printing applications.
  • Supports a wide range of media, including 12.7 mm (1/2 in) or 25.4 mm (1 in) ribbon cores, depending on the model.
  • Industry-standard connectivity includes USB host, Ethernet, and serial communications.
  • Easy to use, with a quick-opening design for media replenishment.
  • Supports ESim (EPL), ZSim (ZPL-II), and Direct Protocol (DP) for maximum compatibility.

Specifications
  • Dimensions (LxWxH): 297 mm x 226 mm x 177 mm (11.7 in x 8.9 in x 7.0 in)
  • Weight: 2.5 kg (5.5 lbs)
  • Max Media Diameter: 127.0 mm (5.0 in)
  • Media Width: 25.4 mm (1.0 in) to 110 mm (4.3 in)
  • Print Resolution: 8.0 dpmm (203 dpi)
  • Max Print Speed: 101.6 mm/s (4.0 ips)
  • Standard Interfaces: USB Device, USB Host with Serial or Ethernet (depending on model)
  • Operating Temperature: +5°C to +40°C (+41°F to +104°F)
  • Input: 100-240V AC @ 50-60 Hz, 1.5 A
Honeywell PC42TPE01062 Barcode Label Printer Overview

Based on more than 40 years of barcode printing innovations, the PC42t Plus desktop printer sets new standards for user-friendliness and affordability.

Exceptionally compact and easy to use, this printer is simple to install and ready to print quickly. Quiet, reliable operation and an intuitive design make the PC42t Plus the right fit for light-duty labeling applications in a variety of industries.

Available in either 12.7 mm (0.5 in) or 25.4 mm (1 in) ribbon core configurations and with a print speed up to 125 mm (5 ips), the PC42t Plus supports media as wide as 110 mm (4.3 in) and fits right into existing printing environments. The 25.4 mm configuration is compatible with ribbon lengths up to 300 m (984 ft) - more than four times the length of competitive offerings. With support for longer ribbons, downtime is reduced and ribbons can be shared with larger printers to provide increased media flexibility.

The PC42t Plus printer includes broad, industry-standard connectivity. Up to four ports are built-in: standard USB device and USB host, plus optional serial or serial+Ethernet. With rich interfaces, a compact size, and common media specifications, the PC42t Plus easily drops into virtually any application environment.

The PC42t Plus printer supports ZPL II and EPL emulation, along with Direct Protocol (DP) and DPL, and auto-senses the printing languages without any pre-setting, providing an easy upgrade path from a variety of legacy Intermec, Datamax, and competitive printers.

With its affordable price and modern features, the PC42t printer represents a smart solution for the small or medium business looking to improve productivity in label-making operations. Economical to purchase and use, the PC42t printer is also a great choice for those looking to deploy thermal label printing for the first time, or for those transitioning away from more expensive inkjet- or laser-based label printing methods.

FEATURES AND BENEFITS

  • An economical solution for light-duty thermal printing applications.
  • Supports a wide range of media, including 12.7 mm (0.5 in) or 25.4 mm (1 in) ribbon cores (depending on the model).
  • Industry-standard connectivity includes USB host and device, and options for Ethernet and serial communications.
  • Easy to use, with a quick-opening design for media replenishment.
  • Supports ESim (EPL), ZSim (ZPL II), DPL, and Direct Protocol (DP) print languages for maximum compatibility.
Technical Information
Recommended Use:
Label Print
Print Color Capability:
Monochrome
Maximum Mono Print Speed:
5 in/s
Maximum Print Resolution (dpi):
203
Maximum Print Width:
4.10"
Barcode Symbology Supported:
  • 1D
  • 2D
  • EAN-8
  • MSI
  • EAN-13
  • POSTNET
  • RSS-14
  • PLANET
  • UCC 128
  • HIBC Code 128
  • HIBC Code 39
  • EAN
  • Plessey
  • Grid Matrix
  • PDF417
  • Micro PDF-417
  • Maxi Code
  • AZTEC
  • Code 49
  • Data Matrix
  • Code 16K
  • Dot Code
  • QR Code
Application/Usage:
  • Desktop
  • Business
Memory
Standard Memory:
64 MB
Flash Memory:
64 MB
Interfaces/Ports
Serial Port:
Yes
USB Host:
Yes
USB:
Yes
Network & Communication
Network Ready:
Yes
Ethernet:
Yes
Ethernet Technology:
Ethernet
Display & Graphics
Display Screen:
Yes
Screen Size:
4"
Display Screen Type:
LED
Media Types & Handling
Media Type:
Label
Maximum Roll Diameter:
5"
Maximum Label Width:
4.30"
Maximum Label Length:
39"
Fonts & Emulation
Language Emulation:
  • EPL
  • DPL
  • ZPL II
Power Description
Power Source:
AC Supply
Frequency:
  • 50 Hz
  • 60 Hz
Environmental Conditions
Operating Temperature:
41°F (5°C) - 104°F (40°C)
Operating Relative Humidity:
10% - 80%
Storage Temperature:
-40°F (-40°C) - 140°F (60°C)
Storage Relative Humidity:
10% - 90%
Physical Characteristics
Form Factor:
Desktop
Height:
6.9"
Width:
8.9"
Depth:
11.7"
Weight (Approximate):
5.51 lb
Miscellaneous
Certifications & Standards:
  • CE
  • KC
  • RM
  • D Mark
  • EN 60950-1
  • IEC 60950-1
  • EMC Directive (EN55032 Class A + EN55024)
Warranty
Limited Warranty:
1 Year
Item Numbers
UNSPSC: 43212108
