Honeywell HF811 – Barcode Scanner – 2D – Scanner Only

Part Number: HF811-01RT00004K-R
Model: HF81X
to get Free Ground Shipping on your order.
3-year Premium Plus ($54.70)
No, stay at premium support package
Add to My Shopping List Add to Compare
$1,565.38

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Form Factor
Fixed Mount
Scanner Capability
2D
Scanner Type
DPM (Direct Part Marking), Imager

Product Description:

  Barcode Scanners, Honeywell HF811, 2 megapixel, Narrow FOV, Red LED illumination
Explore all Honeywell HF81X Barcode Scanners
Add to Quote

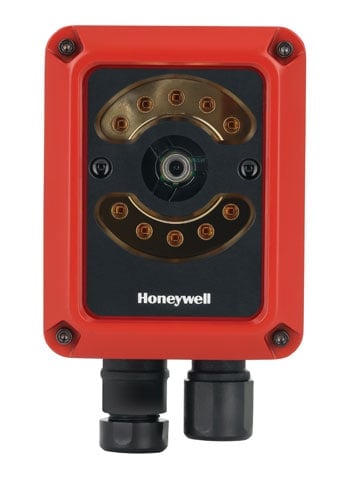

Honeywell HF811-01RT00004K-R Barcode Scanner
Honeywell HF811-01RT00004K-R Barcode Scanner
Honeywell HF811-01RT00004K-R Barcode Scanner Honeywell HF811-01RT00004K-R Barcode Scanner
Full specifications (PDF)

Honeywell HF81X Barcode Scanner Model Overview

The HF810 and HF811 Fixed Mount Scanners by Honeywell are engineered for versatility and high performance in diverse environments. Featuring advanced encoding and decoding technologies, these compact 2D industrial scanners excel in package sorting and light manufacturing workflows. With dedicated DPM capabilities and easy integration into factory settings, the HF810 and HF811 are ideal for businesses seeking efficiency and reliability in their operations.

Key Features:
  • Enhanced performance: Dedicated DPM algorithm for rapid scanning in manufacturing workflows.
  • Flexible configuration: Network-ready with I/O functionality for accessories like external triggers and auxiliary lighting.
  • Plug and Play: DataMax Plus configuration tool enables rapid setup with an autotune function for optimizing scanning parameters.


Specifications:
  • Mechanical:
    • Dimensions (H x W x D): 70 mm x 55 mm x 45 mm
    • Weight: 180g
    • Lens: Liquid Lens
  • Electrical:
    • Input Voltage: 240V
    • Output Current: 24VDC/5A
    • Communication: RS232, RS485, TCP/IP, Field Bus Protocol (Profinet, EthernetIP, Modbus TCP)
  • Environmental:
    • Operating Temperature: 0°C to 50°C
    • Storage Temperature: -20°C to 70°C
    • Humidity: 5% to 95% relative humidity, non-condensing
    • IP Rating: IP65
  • Scan Performance:
    • Scan Pattern: Area image
    • HF811 Resolution: 2 MP
    • HF810 Resolution: 0.5 MP
    • Scan Angle: Horizontal: 20-39° (Narrow vs. Wide FOV), Vertical: 11-22° (Narrow vs. Wide FOV)
    • Decode Capability: Reads standard 1D, PDF, 2D (QR, Datamatrix, Maxicode, Aztec) DPM
  • Warranty: 3-year factory warranty
Honeywell HF811-01RT00004K-R Barcode Scanner Overview
Built with flexibility in mind, the HF810 and HF811 are designed to perform in a wide variety of environments and enable seamless integration with package sorting and light manufacturing processes.

About the HF810 & HF811

With Honeywell's enhanced technology in encoding and decoding, HF810 and HF811 Fixed-mount 2D Industrial Scanners offer powerful performance, including DPM capabilities, in a compact form factor that can be networked to build a complete manufacturing or warehouse management solution for end users.
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • 2D (QR, Datamatrix, Maxicode, Aztec)
  • PDF417
  • 1D
  • DPM
Image Sensor Type:
Imager
Field of View (Horizontal):
20°
Field of View (Vertical):
11°
Maximum Ambient Light:
100000 lux
Direct Part Marking (DPM) Decoding:
Yes
Interfaces/Ports
Host Interface:
  • Serial
  • Ethernet
Physical Characteristics
Form Factor:
Fixed Mount
Product Color:
Black
Height:
2.8"
Width:
2.2"
Depth:
1.8"
Weight (Approximate):
6.35 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP65
Application/Usage:
  • Industrial
  • Manufacturing
  • Warehouse
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
