Honeywell 3320G-4USB-0 Barcode Scanner

Honeywell 3320G-4USB-0-N Barcode Scanner A newer version of this item is available.
It is replaced by the Honeywell 3320G-4USB-0-N Barcode Scanner.

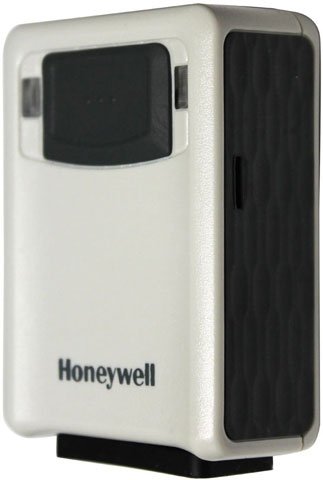

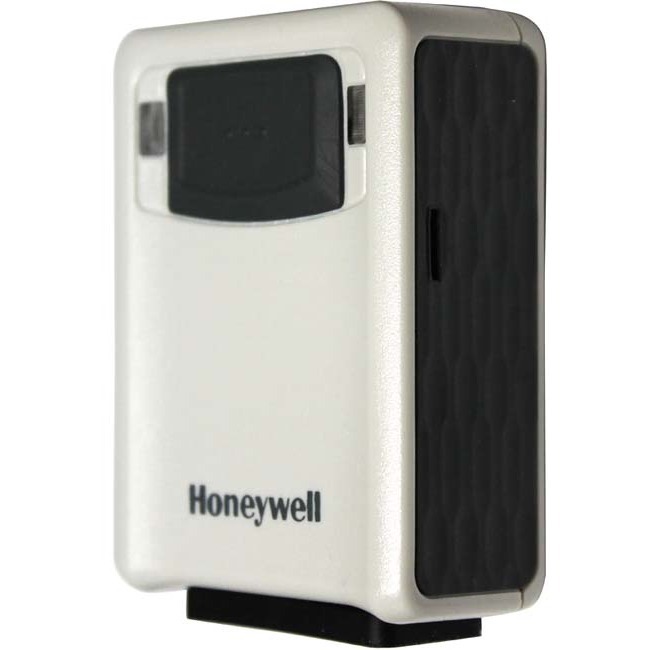

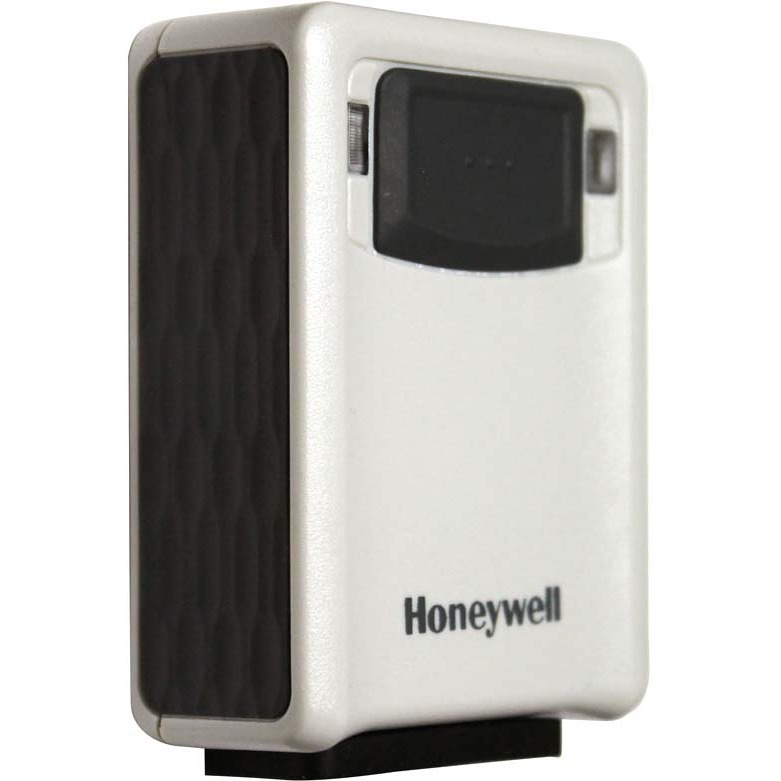

Honeywell Vuquest 3320g - USB Kit, 2D Area Imager. Includes USB cable. Color: Ivory.
  • At a low cost, it gives more control by manual scanning, thus adds to the effectiveness and profitability
  • Allows productive and precise reading of 1D barcodes
  • Regardless of angle orientation, the imager makes it easy to scan 1D and 2D barcodes
  • Perfect for applications that require direct association with a workstation or a notebook
Read More

Need a different version? See all Honeywell 3320g Barcode Scanners

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Honeywell 3320G-4USB-0 Barcode Scanner
Honeywell 3320G-4USB-0 Barcode Scanner Honeywell 3320G-4USB-0 Barcode Scanner Honeywell 3320G-4USB-0 Barcode Scanner Honeywell 3320G-4USB-0 Barcode Scanner Honeywell 3320G-4USB-0 Barcode Scanner
Honeywell 3320G-4USB-0 Barcode Scanner
Honeywell 3320G-4USB-0 Barcode Scanner
Honeywell 3320G-4USB-0 Barcode Scanner
Honeywell 3320G-4USB-0 Barcode Scanner

Full specifications (PDF)
Honeywell 3320g Barcode Scanner Model Overview
The Honeywell Vuquest 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments. Powered by Adaptus Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware. Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners.
Honeywell 3320G-4USB-0 Barcode Scanner Overview

The Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments, providing superior-performance scanning of all printed barcodes, and digital barcodes on any smart device.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
Reads standard 1D, PDF, 2D, Postal and OCR symbologies.
Image Sensor Type:
Imager
Scanning Distance:
17.13"
Cable Type Included:
USB
Field of View (Horizontal):
42°
Field of View (Vertical):
33°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
45°
Motion Tolerance:
106 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
Designed to withstand 1.5 m (5 ft) drops
Minimum Print Contrast:
20%
Minimum Element Resolution (Code 39):
5 mil
Maximum Element Resolution (Code 39):
10 mil
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
6.7 mil
Interfaces/Ports
Host Interface:
USB
Physical Characteristics
Form Factor:
Desktop
Product Color:
Ivory
Height:
1"
Width:
2"
Length:
2.9"
Weight (Approximate):
2.72 oz
Miscellaneous
Application/Usage:
  • Kiosk
  • Industrial
Item Numbers
GTIN: 0016463331704, 0120764824831, 0887988628743, 0995476121147, 5711783261964, 7898409753206
UPC: 016463331704, 120764824831, 887988628743, 995476121147
EAN: 0016463331704, 0120764824831, 0887988628743, 0995476121147, 5711783261964, 7898409753206
UNSPSC: 43211701
Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Honeywell 3320G-4USB-0 Barcode Scanner is also known as HSM-3320G4USB0 or 3320G4USB0.
