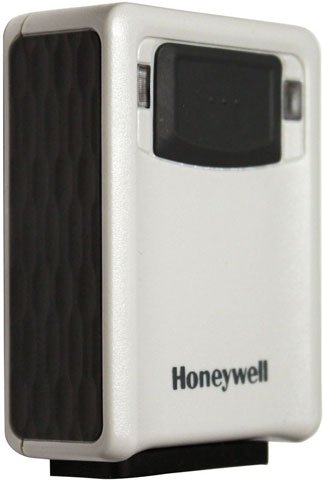

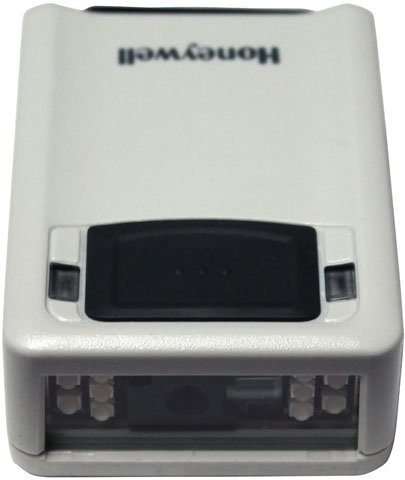

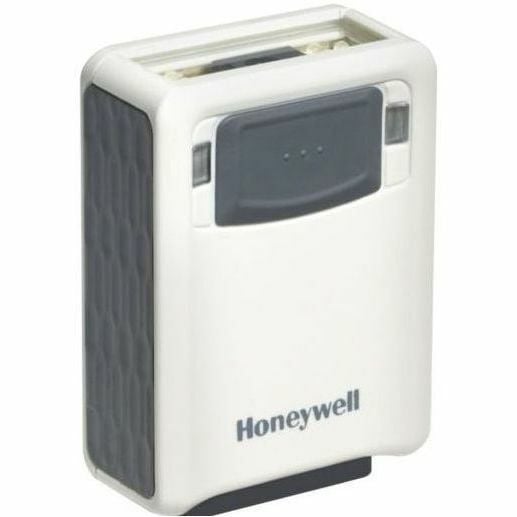

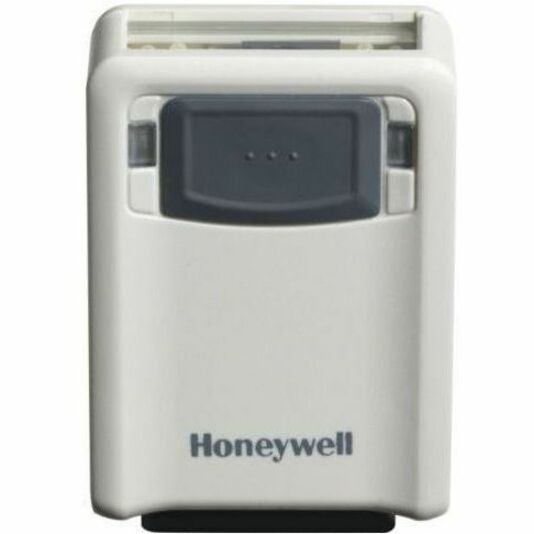

The Honeywell Vuquest™ 3320g is a compact area-imaging scanner designed to provide superior scanning performance for all types of barcodes, including 1D, PDF, and 2D formats. Lightweight and durable, this scanner blends seamlessly into any retail environment while offering advanced capabilities powered by Adaptus™ Imaging Technology 6.0. Its unobtrusive illumination minimizes distractions, ensuring a user-friendly experience. Equipped with the Total Freedom™ 2.0 development platform, the Vuquest 3320g enhances functionality by allowing custom decoding and formatting plug-ins, catering to unique business requirements.
Key features:
Intelligent multi-interface design: Automates interface detection and supports various connections.
Direct scanning from screens: Scans barcodes from mobile devices with ease.
Laser-free aiming: Provides accurate scanning without risk of eye injury.
Flexible licensing solution: Upgrade scanning capabilities as needed with simple license purchases.
Specifications:
Dimensions: 73 mm x 51 mm x 26 mm (2.9 in x 2.0 in x 1.0 in)
Weight: 77 g (2.7 oz)
Operating Temperature: 0°C to 40°C (32°F to 104°F)
Storage Temperature: -20°C to 70°C (-4°F to 158°F)
Humidity: 5% to 95% relative humidity, non-condensing
Drop Resistance: Designed to withstand drops of up to 1.5 m (5 ft)
IP Rating: IP53 for environmental sealing
Decode Capability: Reads standard 1D, 2D, Postal and OCR symbologies
Warranty: Two-year factory warranty
Honeywell 3320G-4USB-0-N Barcode Scanner Overview
The Honeywell Vuquest™ 3320g compact area-imaging scanner offers aggressive scanning of all 1D, PDF and 2D barcodes in a lightweight, durable and portable form factor. The scanner's sleek and elegant design also blends seamlessly in retail environments. Powered by Adaptus™ Imaging Technology 6.0, the Vuquest 3320g scanner delivers superior barcode scanning and digital image capture. Aggressive reading of barcodes on highly reflective surfaces, such as mobile phone screens, eliminates the need to purchase additional specialty hardware. Designed with the customer in mind, the unobtrusive illumination contained within the Vuquest 3320g scanner reduces the annoying after-effects commonly associated with the illumination used in imaging-based scanners. The TotalFreedom™ 2.0 second-generation development platform expands scanner functionality by allowing decoding and formatting plug-ins to be loaded directly onto the Vuquest 3320g scanner, enabling enterprises to rapidly support proprietary or newly developed symbologies. The ability to control the triggering of an external device such as a beeper, photo eye or illumination via external I/O capabilities allows the Vuquest 3320g scanner to enter new markets once reserved for expensive industrial products. With its small size, ergonomically friendly thumb-activated button and clearly visible indicator LEDs, the Vuquest 3320g scanner offers a dependable handheld or wearable scanning solution. The Vuquest 3320g scanner also offers universal mounting and robust presentation mode scan performance, making the device an ideal fixed-mount scanning solution for use in light industrial applications and kiosks
What barcode types can the Honeywell 3320G scanner read?
The Honeywell Vuquest 3320g is a 2D area-imaging scanner that reads all 1D barcodes, PDF417, and 2D barcodes including QR codes. It features Adaptus Imaging Technology 6.0 for superior barcode scanning performance across a wide range of symbologies. For a complete listing of all supported barcode types, visit the Honeywell compliance documentation.
Can the Honeywell 3320G scan barcodes on mobile phone screens?
Yes, the Vuquest 3320g is specifically designed with mobile phone reading technology to scan barcodes displayed on mobile devices and other reflective surfaces. This aggressive reading capability eliminates the need to purchase additional specialty hardware, making it ideal for modern retail and logistics environments.
What interface options does the 3320G-4USB model support?
The 3320G-4USB model features USB connectivity via cable connection. The scanner is designed with an intelligent multiple interface architecture that supports popular interfaces on a single device, providing flexibility for various deployment scenarios. Cables are sold separately, so contact us today to ensure you have the correct connectivity options for your setup.
Is the Honeywell 3320G suitable for hands-free scanning?
Yes, the Vuquest 3320g is available as a hands-free scanner option, making it ideal for retail checkout counters and warehouse environments where operators need to keep their hands free. Its sleek and elegant design blends seamlessly into retail environments while maintaining durability for high-volume scanning applications.
What are the key differences between the Honeywell 3320G and previous Vuquest models?
The Vuquest 3320g represents Honeywell's compact area-imaging technology with Adaptus Imaging Technology 6.0, offering improved barcode reading on reflective surfaces like mobile phones. Its lightweight and portable design, combined with reduced illumination that minimizes eye strain, makes it an advancement over earlier imaging scanner models.
Is the Honeywell 3320G still available for purchase?
The Honeywell Vuquest 3320g is currently discontinued. However, we offer a wide range of current-generation Honeywell barcode scanners and 2D imaging solutions for warehouse, retail, and logistics applications. Contact us today to explore alternative scanner models that meet your specific scanning requirements.
The Honeywell 3320G-4USB-0-N Barcode Scanner is also known as
HSM-3320G4USB0N
or 3320G4USB0N.
Full specifications (PDF)
