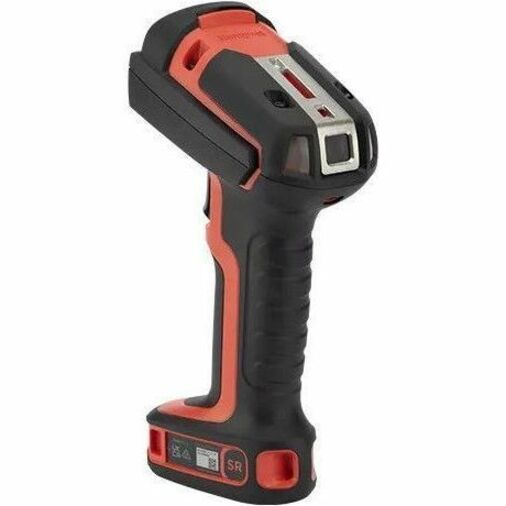

Honeywell Granit Ultra 2105iXLR – Barcode Scanner

Part Number: 2105IXLR-3SER-CLHN

Model: Granit Ultra 2105iXLR

3-year Premium Plus ($158.45)

3-year Premium ($103.75)

No Support

$1,246.77

Item on backorder — chat for lead time

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Connectivity Technology

Cable/Wireless

Scanning Capability

1D2D

Barcode Symbology Supported

1D: Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar2D: Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCodeDigital Watermarking: DigimarcOCR: OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface

Light Source

Laser

Product Description:

Barcode Scanner, Honeywell Granit Ultra 2105iXLR, Granit Ultra RS232 Kit: Cordless, Bluetooth, Rugged, 1D/2D, Extreme Long Range, Vibrator, Contact Charging, Red Scanner (2105IXLR-3-CL), Battery (BAT-SCN11), RS232 Cable (CBL-020-300-C00), Horizontal Base (CCB23-100BT-07N), NA

Explore all Honeywell Granit Ultra 2105iXLR Barcode Scanners

Add to Quote

Honeywell 2105IXLR-3SER-CLHN Barcode Scanner

Detailed Specs

Full specifications (PDF)

Technical Information

Connectivity Technology:

Cable/Wireless

Scanning Capability:

Barcode Symbology Supported:

1D:

Code 39, code 128, code 93, code 11, code 32 Pharmaceutical, codabar, EAN, UPC, China Post, GS1 databar

2D:

Aztec, Data Matrix, QR/Micro QR code, Maxicode, Chinese sensible (Han Xin) code, postal code, PDF417, DotCode

Digital Watermarking:

Digimarc

OCR:

OCR A, OCR B, MICR E-13B and SEMI Font, in a 6 to 60 point OCR typeface

Light Source:

Laser

Image Sensor Type:

Imager

Scan Mode:

Trigger

Scan Pattern:

Area

Scanner Range:

Ultra Long Range

Scanning Distance:

98.43 ft

Features:

Notification LED
Beep
Vibration
Ergonomic Design
Data Formatter

Cable Type Included:

Serial

Field of View (Horizontal):

45°

Field of View (Vertical):

14°

Reading Angle (Skew):

65°

Reading Angle (Pitch):

65°

Reading Angle (Roll):

360°

Maximum Ambient Light:

100000 lux

Drop Specification:

3m (10 ft): MIL-STD-810G, 25° C (77° F), 55% relative humidity
2.5m (8.2 ft): 20 drops from -20° C to 50° C (4° F to 122° F), 55% relative humidity
2m (6.5 ft): 50 drops from -30° C to 50° C (-22° F to 122° F), uncontrolled relative humidity

Minimum Print Contrast:

15%

Minimum Element Resolution (Code 39):

5 mil

Maximum Element Resolution (Code 39):

100 mil

Minimum Element Resolution (DataMatrix):

10 mil

Maximum Element Resolution (DataMatrix):

100 mil

Image Sensor Resolution:

1900 x 800

Illumination Type:

LED

Illumination Color:

Green

Air Electrostatic Discharge (+/-):

20kV

Contact Electrostatic Discharge (+/-):

8kV

AI-powered:

Yes

Network & Communication

Bluetooth:

Yes

Radio Frequency:

Yes

Interfaces/Ports

Host Interface:

USB
Serial
Keyboard Wedge

Power Description

Maximum Operating Power Consumption:

7.50 W

Standby Current:

120 mA

Battery Information

Battery Included:

Yes

Battery Chemistry:

Lithium Ion (Li-Ion)

Battery Capacity:

3300 mAh

Maximum Battery Run Time:

14 Hour

Environmental Conditions

Operating Temperature:

-4°F (-20°C) to 122°F (50°C)

Storage Temperature:

-40°F (-40°C) to 158°F (70°C)

Humidity (Non-condensing):

95%

Physical Characteristics

Form Factor:

Handheld

Rugged:

Yes

Color Family:

Red

Product Color:

Red

Durability:

Drop Resistant

Height:

5.5"

Width:

Length:

7.7"

Weight (Approximate):

14.99 oz

Miscellaneous

Package Contents:

GRANIT ULTRA 2105iXLR Barcode Scanner
Battery (Battery-SCN11)
RS232 Cable (CBL-020-300-C00)
Horizontal Base(CCB23-100BT-07N)

Ingress Protection (IP) Rating:

IP65
IP68

Application/Usage:

Warehouse
Distribution
Manufacturing

Environmental Compliance:

Restriction of Hazardous Substances (RoHS)

Warranty

Limited Warranty:

3 Year

Item Numbers

UNSPSC: 43211701

Reviews

FAQs

Frequently Asked Questions

What is the maximum wireless range of the Honeywell 2105iXLR scanner?

The Honeywell Granit Ultra 2105iXLR operates on 2.4 GHz Bluetooth v. 4.2 with Class 1 radio capability, providing a maximum range of 100 meters (330 feet) in line of sight conditions. This extreme long-range capability makes it ideal for large warehouse and logistics environments where scanners need to operate from extended distances.

How long does the battery last on a single charge?

The 2105iXLR features a 3,300 mAh Li-ion battery that delivers up to 100,000 scans per charge, with an expected operating duration of 14 hours at 2 scans per second. Charging time varies from under 4 hours with a 5V 3A power supply or USB BC1.2 to under 12 hours with standard USB 2.0.

What connectivity options does this scanner support?

The 2105iXLR supports multiple host system interfaces including USB, Keyboard Wedge, and RS-232 TTL, with cables available to convert for +/-12V True use. This flexibility allows seamless integration with legacy systems and modern warehouse management platforms available from us.

Is the Honeywell 2105iXLR suitable for extreme environments?

Yes, the Granit Ultra 2105iXLR is built for harsh conditions with an operating temperature range of -20°C to 50°C (-4°F to 122°F) and storage capability from -40°C to 70°C. Its rugged design with vibration feedback and adjustable beeper makes it reliable in demanding warehouse, outdoor, and cold-storage applications.

What barcode types can the 2105iXLR read?

The Honeywell Granit Ultra 2105iXLR is a 1D/2D barcode scanner capable of reading both linear and two-dimensional barcodes. Its extreme long-range imaging technology enables reliable decoding from extended distances, making it suitable for high-volume logistics and inventory operations.

What accessories are included in the RS232 Kit?

The 2105IXLR-3SER-CLHN RS232 Kit includes the red Granit Ultra scanner (2105IXLR-3-CL), a 3,300 mAh battery (BAT-SCN11), an RS232 cable (CBL-020-300-C00), and a horizontal contact charging base (CCB23-100BT-07N). Contact us today to verify current kit configurations and availability.

The Honeywell 2105IXLR-3SER-CLHN Barcode Scanner is also known as HSM-2105IXLR3SERCLHN or 2105IXLR3SERCLHN.
