Honeywell Granit Ultra 2100iXLR – Barcode Scanner

Part Number: 2100IXLR-3N
Model: Granit Ultra 2100iXLR
3-year Premium Plus ($100.61)
3-year Premium ($45.91)
No Support
Add to My Shopping List Add to Compare
$793.55
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity Technology
Cable
Scanning Capability
1D2D
Barcode Symbology Supported
Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
Light Source
Laser

Product Description:

  Barcode Scanner, Honeywell Granit Ultra 2100iXLR, Granit Ultra Scanner-Only: Tethered, Rugged, 1D/2D, Extreme Long Range, Vibrator, Red Scanner, NA
Explore all Honeywell Granit Ultra 2100iHD Barcode Scanners
Add to Quote

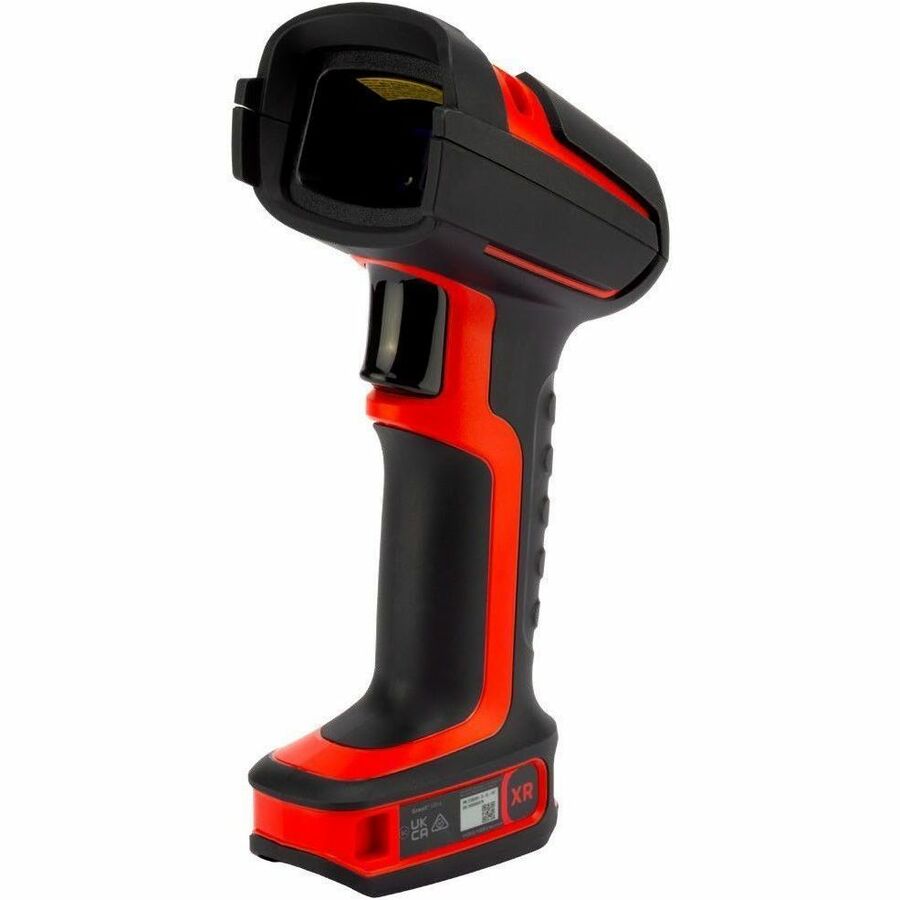

Honeywell 2100IXLR-3N Barcode Scanner
Honeywell 2100IXLR-3N Barcode Scanner
Honeywell 2100IXLR-3N Barcode Scanner Honeywell 2100IXLR-3N Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
Light Source:
Laser
Image Sensor Type:
Imager
Scan Pattern:
Area
Scanner Range:
Long Range
Features:
  • Vibration
  • Beep
  • Notification LED
  • Ergonomic Design
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 3m (10 ft): MIL-STD-810G, 25C (77°F), 55% RH
  • 2.5m (8 ft): 20 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
  • 2m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
Minimum Print Contrast:
15%
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
Green
Air Electrostatic Discharge (+/-):
20kV
Contact Electrostatic Discharge (+/-):
8kV
AI-powered:
Yes
Interfaces/Ports
Host Interface:
  • USB
  • Serial
  • Keyboard Wedge
Power Description
Maximum Operating Power Consumption:
2.75 W
Standby Current:
175 mA
Environmental Conditions
Operating Temperature:
-22°F (-30°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Color Family:
Red
Product Color:
Red
Durability:
  • Impact Resistant
  • Scratch Resistant
  • Drop Resistant
Height:
5.5"
Width:
3"
Length:
7.7"
Weight (Approximate):
11.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP65
  • IP68
Application/Usage:
  • Warehouse
  • Distribution
  • Manufacturing
  • Picking
  • Packing
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Honeywell Granit Ultra 2100iXLR reads both 1D and 2D barcodes with extreme long-range capability, making it ideal for high-bay warehouses and logistics operations where distance scanning is critical. This scanner delivers superior performance across diverse barcode formats used in modern supply chain environments.

The 2100iXLR is available as a tethered, scanner-only configuration. It connects via USB, Keyboard Wedge, or RS-232 TTL interfaces, providing reliable wired connectivity for stationary or cart-based scanning stations in warehouses and distribution centers.

The Honeywell 2100iXLR operates on 2.4 GHz Bluetooth v. 4.2 with Class 1 range extending to 100 meters (330 feet) line of sight when used in cordless mode. This extreme long-range capability enables scanning from elevated positions and across large warehouse floor areas.

The Granit Ultra 2100iXLR is engineered for rugged environments with an operating temperature range of -20°C to 50°C (-4°F to 122°F) and storage capability from -40°C to 70°C. This durability makes it suitable for cold storage, outdoor logistics, and demanding industrial applications where temperature fluctuations are common.

The scanner features a 3,300 mAh Li-ion battery supporting up to 100,000 scans per charge with an expected operational duration of 14 hours at 2 scans per second. Fast charging is available—USB BC1.2 or a 5V 3A power supply can fully charge the battery in under 4 hours.

The scanner includes good decode LEDs, battery status LED, Bluetooth connection status LED, an adjustable beeper with tone and volume controls, and adjustable vibration feedback. These multiple user indicators ensure operators receive clear confirmation of successful scans and device status in noisy warehouse environments.

The Honeywell 2100IXLR-3N Barcode Scanner is also known as HSM-2100IXLR3N or 2100IXLR3N.
