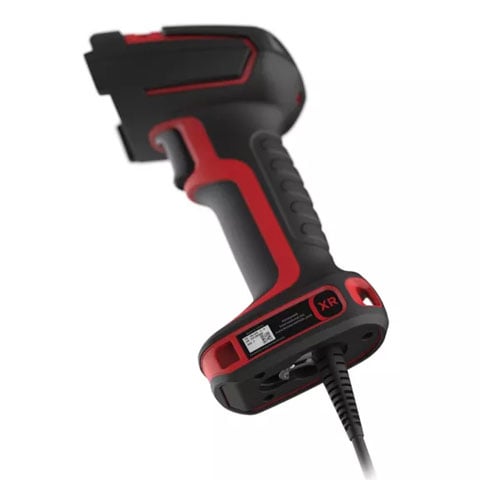

Honeywell Granit Ultra 2100iSR – Barcode Scanner – Corded – 1D, 2D – Standard Range

Part Number: 2100ISR-3N
3-year Premium Plus ($54.70)
No, stay at premium support package
$652.29
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
USB
Scanner Capability
1D, 2D

Product Description:

  Barcode Scanner, Honeywell Granit Ultra 2100iSR, Granit Ultra Scanner-Only: Tethered, Rugged, 1D/2D, Standard Range, Vibrator, Red Scanner, NA

Honeywell Granit Ultra 2100iSR Barcode Scanner Model Overview

The Honeywell Granit™ Ultra 2100ISR scanner is a robust area-imaging scanner designed for ultra-rugged environments. Engineered to enhance productivity, it swiftly reads and transmits a variety of barcodes, including damaged or low-quality prints, ensuring minimal delays during operations. With its high-speed processing, advanced AI algorithms, and enhanced decoding techniques, users can experience a remarkable 45% increase in scanning speed compared to previous models. Its durability ensures optimal performance in harsh conditions, making it ideal for warehouses and manufacturing facilities.


Key Features
  • ULTRA DURABILITY: Survives drops from up to 10 feet and operates in extreme temperatures ranging from -30°C to 50°C.
  • FAST SCANNING: Achieves rapid scans on damaged and low-quality barcodes for increased efficiency.
  • CLOSE PROXIMITY SCANNING: Designed for both near-field and long-distance barcode reading.
  • HOLISTIC SOLUTION: Seamlessly integrates with the Honeywell Scanner Management Utility (SMU).

Specifications
  • Dimensions: 194.8mm x 75.8mm x 139.5mm (7.7 in x 3.0 in x 5.5 in)
  • Weight: 330g (11.64 oz)
  • Operating Temperature: -30°C to 50°C (-22°F to 122°F)
  • Drop Rating: 10 feet (3m) drops and 7,500 tumbles at 1m (3.3ft)
  • Environmental Sealing: IP65 and IP68
  • Scan Pattern: Area imager (1280 × 1080 pixel array)
  • Illumination: White 2700K LED; Green 525nm LED
  • Warranty: Three years factory warranty
Honeywell 2100ISR-3N Barcode Scanner Overview

Honeywell Granit Ultra scanners expand capabilities and define the next generation of ultra-rugged scanning.

ULTRA SCAN PERFORMANCE

For a scanner to optimize productivity, it should read and transmit common barcodes nearly as fast as the user can pull the trigger. Granit Ultra is engineered to do just that. Damaged or low quality printed barcodes can cause scanners' pace to decrease, or even force cumbersome (and error-prone) manual data entry. To maximize throughput, scanners must successfully compensate for poor code quality before scan delays put pressure on production

Granit Ultra integrates high speed processing, AI algorithms, and decoding enhancements to result in an average 45% scanning speed increase vs. Granit XP*, enabling improved productivity. SR models are ready for action, reading barcodes from contact to arm's length.

ULTRA DURABILITY

In modern warehouse, distribution center, and manufacturing environments, any scanner must be durable enough to survive harsh operating conditions and powerful enough to capture and transmit barcode data without slowing workflows. Under exactly that kind of rough treatment, Honeywell Granit Ultra is ready to deliver. 10' drops from fork trucks, docks, and picking trucks, 7,500 tumbles from 3'/1m (typical working height), and wide operating temperatures from deep freezers to the heat of summer are no problem.

But great specs alone are meaningless if there are other weak links in the chain. For instance, customers often cite scratched and broken scan windows as a frequent failure point in competitive scanners. Honeywell Granit Ultra's small, deeply recessed, scratch- and impact-resistant scan window is designed to address this, helping ensure that the electronics and optics remain IP65/68 protected. Scanner cables are another commonly reported failure point for other brands. Honeywell's rigorous specifications on scanner cables (including 500K cycle flex, weighted pull, and even deep freezer specific versions tested to 300K flexes at a frigid -30C/-22F) ensure that each link in the data chain offers premium reliability.

ULTRA EASE OF USE

?Ready to operate right out of the box for many applications, Granit offers easy custom configuration in the time it takes to scan a barcode. Comfortable ergonomic design compliments the human hand and is readily compatible with the range of users. Crisply focused illumination intuitively defines the field of view, and a sharp aimer both defines the focal point and can be used for precise targeting in applications where many barcodes are located close together. And for workflows better expedited by reading many barcodes at once, Granit can read multiple codes in the field of view, organizing and outputting the data in a predefined order using Honeywell's Data Format Editor.

Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, PDF, 2D, Postal, Digimarc, DOT Code, and OCR symbologies
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
40.67"
Features:
  • Vibration
  • Beep
  • Notification LED
  • Ergonomic Design
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 3m (10 ft): MIL-STD-810G, 25C (77°F), 55% RH
  • 2.5m (8 ft): 20 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
  • 2m (6.5 ft): 50 drops from -30°C to 50°C (-22°F to 122°F), uncontrolled RH
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
5 mil
Minimum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
20kV
Contact Electrostatic Discharge (+/-):
8kV
Interfaces/Ports
Host Interface:
USB
Power Description
Maximum Operating Power Consumption:
2.75 W
Standby Current:
175 mA
Environmental Conditions
Operating Temperature:
-22°F (-30°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
95%
Physical Characteristics
Form Factor:
Handheld
Rugged:
Yes
Durability:
  • Impact Resistant
  • Scratch Resistant
  • Drop Resistant
Height:
5.5"
Width:
3"
Length:
7.7"
Weight (Approximate):
11.64 oz
Miscellaneous
Ingress Protection (IP) Rating:
  • IP65
  • IP68
Application/Usage:
  • Warehouse
  • Distribution
  • Manufacturing
  • Picking
  • Packing
  • Industrial
Warranty
Limited Warranty:
3 Year
Item Numbers
UNSPSC: 43211701
The Honeywell 2100ISR-3N Barcode Scanner is also known as 2100ISR3N
