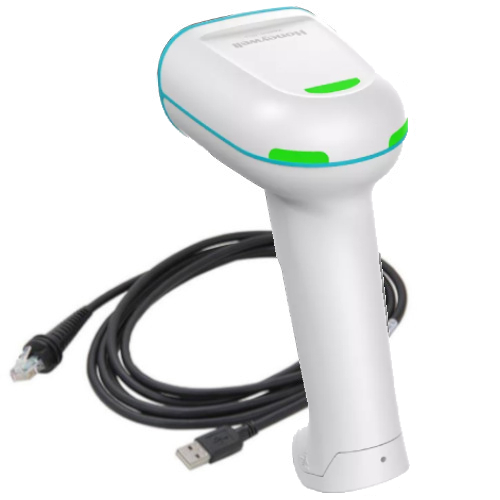

Honeywell 1960h – Barcode Scanner – Corded – 2D – Standard Range – Cable Only

Part Number: 1960HSR-5USB-N
Model: Xenon 1960h
3-year Premium Plus ($110.43)
3-year Premium ($55.73)
No Support
Add to My Shopping List Add to Compare
$359.79
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Barcode Scanners, Honeywell, 1960h USB Healthcare Kit, White Anti-Microbial Housing, SR Focus, 1D/2D, PDF417, USB Type A 3M Straight Cable, Vibration, NA/MX Only Code
Explore all Honeywell Xenon 1960h Barcode Scanners
Add to Quote
Honeywell 1960HSR-5USB-N Barcode Scanner
Honeywell 1960HSR-5USB-N Barcode Scanner
Honeywell 1960HSR-5USB-N Barcode Scanner Honeywell 1960HSR-5USB-N Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Honeywell Xenon 1960h Barcode Scanner Model Overview

The XENON™ ULTRA 1960h Healthcare Corded Handheld Scanner is engineered for precision and speed, serving as a vital tool for healthcare organizations committed to delivering exceptional patient care. With enhanced scan performance and reliability, it ensures that clinicians can conduct their duties efficiently while adapting to the evolving expectations of patients. Featuring a sleek anti-microbial housing designed to withstand multiple cleanings, the Xenon Ultra not only aids in infection control but also supports clinician productivity and employee retention.


Key Features
  • Anti-Microbial Housing: Enhanced resilience against germs and bacteria.
  • Improved Design: Reduced nooks and crannies for easy cleaning.
  • Multiple Operating Modes: Options like Patient Do-Not Disturb, Vibration, and Scan Lamp for optimal comfort.
  • Green-Dot Aimer: Improves scan accuracy and targeting.
  • Compatible with Existing Cables: Use existing cables from the Xenon XP 1950h.
  • Honeywell Scanner Management Utility: Simplifies scanner deployment and updates.

Specifications
  • Mechanical:
    • Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
    • Weight: 147.2 g (5.2 oz)
    • Input Voltage: 4.4V DC to 5.5V DC
    • Host System Interfaces: USB, Keyboard Wedge, RS-232
  • Environmental:
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Humidity: 0% to 95% relative humidity, non-condensing
    • Drop Resistance: 1.8 m (6 ft) to concrete
    • Environmental Sealing: IP52
  • Scan Performance:
    • Image Sensor: 1280 x 1080 pixel array
    • Decode Capabilities: Reads standard 1D, PDF, 2D, and more
    • Illumination: White LED aimer light source
  • Warranty: 5-year factory warranty
Honeywell 1960HSR-5USB-N Barcode Scanner Overview

As a leader in scanning technology, healthcare organizations have chosen Xenon scanners to help ensure clinicians are delivering fast, accurate and reliable patient care.

Patients are becoming savvier and are having higher expectations of what excellent patient care should be - and it goes far beyond an office visit or single hospital stay.

The Xenon Ultra for healthcare is a premium evolution of the widely known legacy Xenon and Xenon XP healthcare scanners, taking our enhanced scan performance and reliability one step further.

The Xenon Ultra 1960h incorporates Honeywell's next generation of scanning capability - allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

  • The Xenon Ultra offers an improved design reducing the amount of nooks or crannies to aid in the reduction of lingering germs.
  • In addition to a greendot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.
  • Multiple operating modes are available to ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.
  • Utilize the cable from your existing deployment of the Xenon XP 1950h on your new deployment of Xenon Ultra 1960.
  • The Honeywell Scanner Management Utility (SMU) creates a holistic solution that helps automate how you deploy and update the scanners in your environment.


Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Light Source:
LED
Image Sensor Type:
Imager
Scan Pattern:
Area
Scanner Range:
Standard Range
Scanning Distance:
43.90"
Features:
  • Vibration
  • Beep
  • Notification LED
Cable Type Included:
USB
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157.48 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 31.8 m (6 ft) to concrete across operating temp range
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV
Contact Electrostatic Discharge (+/-):
8kV
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
  • Serial
Power Description
Maximum Operating Power Consumption:
2.50 W
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Weight (Approximate):
5.19 oz
Miscellaneous
Package Contents:
  • 1 x Xenon Ultra 1960h Healthcare Scanner
  • 1 x USB Type A 3M Straight Cable


Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Healthcare
  • Inventory
  • Component Tracking
  • Specimen Collection
  • Pharmacy
  • Hospitality
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Honeywell Xenon Ultra 1960h features an anti-microbial housing with silver-ion additives that discourages the growth of germs and bacteria, making it ideal for clinical settings. Its design includes fewer nooks and crannies to aid in reducing lingering germs, and the housing is resilient to multiple cleanings with harsh disinfectants—a critical requirement for patient care environments. We offer this scanner specifically configured for healthcare organizations that need reliable, infection-control-ready barcode scanning.

The 1960HSR-5USB-N reads standard 1D, PDF417, 2D, Postal, and OCR symbologies with its area image scan pattern (838 x 640 pixel array). For a complete listing of all supported barcode symbologies, you can visit www.honeywellaidc.com/symbologies. Contact us today if you need specific symbology support verified for your application.

Yes—the scanner is designed to withstand 50 drops from 1.8 meters (6 feet) to concrete, and it has an IP41 environmental sealing rating that protects against dust and splashing. The anti-microbial housing is specifically engineered to resist the harmful effects of harsh chemical disinfectants used in healthcare settings. We offer this model for high-demand clinical environments where durability and cleanability are essential.

The 1960HSR-5USB-N comes with a USB Type A 3-meter straight cable connection to your host system. The scanner supports multiple host system interfaces including USB, Keyboard Wedge, RS232, and IBM 46xx (RS485), providing flexibility for different healthcare IT infrastructure setups. Available from us with standard USB connectivity for immediate integration into existing systems.

The Xenon Ultra 1960h is a premium evolution of the Xenon and Xenon XP healthcare scanners, incorporating Honeywell's next generation of scanning capability with improved design and anti-microbial housing. It maintains the proven scan performance of its predecessors while adding enhanced infection-control features specifically requested by healthcare organizations. Contact us today to discuss how the 1960h upgrades your clinical barcode scanning infrastructure.

The scanner operates reliably between 0°C to 50°C (32°F to 122°F) with input voltage of 4 VDC to 5.5 VDC, drawing 2.3 W operating power (450mA @ 5 VDC) and 0.45 W in standby mode. These specifications make it suitable for both climate-controlled clinical areas and variable-temperature hospital environments. Visit barcodesinc.com to verify compatibility with your facility's power infrastructure.

The Honeywell 1960HSR-5USB-N Barcode Scanner is also known as HSM-1960HSR5USBN or 1960HSR5USBN.
