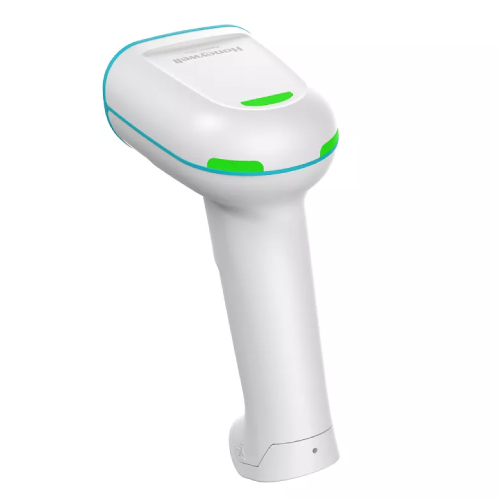

Honeywell 1960h – Barcode Scanner – Corded – 2D – Standard Range – Scanner Only

Part Number: 1960HSR-5-N
Model: Xenon 1960h
3-year Premium Plus ($110.43)
3-year Premium ($55.73)
No Support
Add to My Shopping List Add to Compare
$446.38
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Barcode Scanners, Honeywell, 1960h Healthcare Scanner Only, White, Anti-Microbial Housing, SR focus, 1D/2D, PDF417, Vibration
Explore all Honeywell Xenon 1960h Barcode Scanners
Add to Quote
Honeywell 1960HSR-5-N Barcode Scanner
Honeywell 1960HSR-5-N Barcode Scanner
Honeywell 1960HSR-5-N Barcode Scanner
Honeywell 1960HSR-5-N Barcode Scanner Honeywell 1960HSR-5-N Barcode Scanner Honeywell 1960HSR-5-N Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Honeywell Xenon 1960h Barcode Scanner Model Overview

The XENON™ ULTRA 1960h Healthcare Corded Handheld Scanner is engineered for precision and speed, serving as a vital tool for healthcare organizations committed to delivering exceptional patient care. With enhanced scan performance and reliability, it ensures that clinicians can conduct their duties efficiently while adapting to the evolving expectations of patients. Featuring a sleek anti-microbial housing designed to withstand multiple cleanings, the Xenon Ultra not only aids in infection control but also supports clinician productivity and employee retention.


Key Features
  • Anti-Microbial Housing: Enhanced resilience against germs and bacteria.
  • Improved Design: Reduced nooks and crannies for easy cleaning.
  • Multiple Operating Modes: Options like Patient Do-Not Disturb, Vibration, and Scan Lamp for optimal comfort.
  • Green-Dot Aimer: Improves scan accuracy and targeting.
  • Compatible with Existing Cables: Use existing cables from the Xenon XP 1950h.
  • Honeywell Scanner Management Utility: Simplifies scanner deployment and updates.

Specifications
  • Mechanical:
    • Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
    • Weight: 147.2 g (5.2 oz)
    • Input Voltage: 4.4V DC to 5.5V DC
    • Host System Interfaces: USB, Keyboard Wedge, RS-232
  • Environmental:
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Humidity: 0% to 95% relative humidity, non-condensing
    • Drop Resistance: 1.8 m (6 ft) to concrete
    • Environmental Sealing: IP52
  • Scan Performance:
    • Image Sensor: 1280 x 1080 pixel array
    • Decode Capabilities: Reads standard 1D, PDF, 2D, and more
    • Illumination: White LED aimer light source
  • Warranty: 5-year factory warranty
Honeywell 1960HSR-5-N Barcode Scanner Overview

As a leader in scanning technology, healthcare organizations have chosen Xenon scanners to help ensure clinicians are delivering fast, accurate and reliable patient care.

Patients are becoming savvier and are having higher expectations of what excellent patient care should be - and it goes far beyond an office visit or single hospital stay.

The Xenon Ultra for healthcare is a premium evolution of the widely known legacy Xenon and Xenon XP healthcare scanners, taking our enhanced scan performance and reliability one step further.

The Xenon Ultra 1960h incorporates Honeywell's next generation of scanning capability - allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies
Light Source:
LED
Image Sensor Type:
Imager
Scanner Range:
Standard Range
Scanning Distance:
43.90"
Features:
  • Vibration
  • Beep
  • Notification LED
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157.48 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 1.8 m (6 ft) to concrete across operating temp range
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
7.5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV
Power Description
Maximum Operating Power Consumption:
2.50 W
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Weight (Approximate):
5.19 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
  • Healthcare
  • Inventory
  • Component Tracking
  • Specimen Collection
  • Pharmacy
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Honeywell Xenon Ultra 1960h is specifically designed for healthcare with an anti-microbial housing that includes silver-ion additives to discourage the growth of germs and bacteria. Its improved design features fewer nooks and crannies, making it easier to clean and disinfect during multiple cleanings throughout the day. This makes it an ideal choice for clinicians who need fast, accurate, and reliable patient care delivery.

The 1960HSR-5-N reads standard 1D barcodes, 2D codes, PDF417, and other postal symbologies. It features an area image scanner with a 838 x 640 pixel array that provides excellent decode capability across multiple barcode formats commonly used in healthcare and logistics environments. For a complete listing of all supported barcode symbologies, visit www.honeywell.com/PSS-symbologies.

We offer the 1960HSR-5-N with multiple host system interface options including USB, Keyboard Wedge, and RS-232 connectivity. This flexibility allows it to integrate seamlessly with existing healthcare IT infrastructure and point-of-care systems. The corded design provides reliable power delivery at 4.4V to 5.5V DC.

The Honeywell 1960HSR-5-N corded model comes with a comprehensive 5-year factory warranty, providing extended protection for your investment. This warranty coverage reflects Honeywell's confidence in the durability and reliability of the Xenon Ultra 1960h scanner. Contact us today to discuss warranty options and support packages available from us.

Yes, the 1960HSR-5-N is specifically engineered as a disinfectant-ready scanner with anti-microbial housing that is resilient to multiple cleanings. It can operate in temperatures ranging from 0°C to 50°C (32°F to 122°F) and maintains IP41 environmental sealing for protection against moisture and contaminants. The silver-ion additive technology ensures the scanner remains hygienic even with frequent disinfection.

The 1960HSR-5-N offers configurable object detection with a default read distance of 3 inches when placed in its stand, which can be adjusted to 6 inches with configuration changes. It delivers motion tolerance up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus, with horizontal and vertical scan angles of 41.4° and 32.2° respectively. This performance makes it ideal for fast-paced healthcare scanning operations.

The Honeywell 1960HSR-5-N Barcode Scanner is also known as HSM-1960HSR5N or 1960HSR5N.
