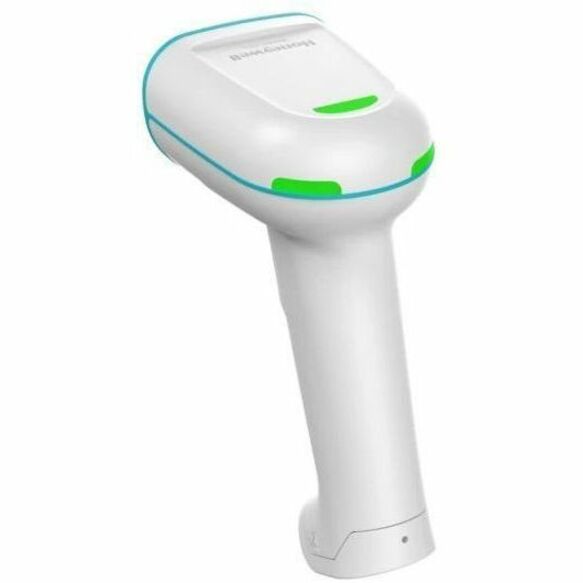

Honeywell 1960h – Barcode Scanner – Corded – 2D – Cable Only

Part Number: 1960HHD-5USB-N
Model: Xenon 1960h
3-year Premium Plus ($110.43)
3-year Premium ($55.73)
No Support
Add to My Shopping List Add to Compare
$447.92
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Barcode Scanners, Honeywell, 1960h USB Healthcare Kit, White Anti-Microbial Housing, HD Focus, 1D/2D, PDF417, USB Type A 3M Straight Cable, Vibration, NA/MX Only
Explore all Honeywell Xenon 1960h Barcode Scanners
Add to Quote
Honeywell 1960HHD-5USB-N Barcode Scanner
Honeywell 1960HHD-5USB-N Barcode Scanner
Honeywell 1960HHD-5USB-N Barcode Scanner Honeywell 1960HHD-5USB-N Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Honeywell Xenon 1960h Barcode Scanner Model Overview

The XENON™ ULTRA 1960h Healthcare Corded Handheld Scanner is engineered for precision and speed, serving as a vital tool for healthcare organizations committed to delivering exceptional patient care. With enhanced scan performance and reliability, it ensures that clinicians can conduct their duties efficiently while adapting to the evolving expectations of patients. Featuring a sleek anti-microbial housing designed to withstand multiple cleanings, the Xenon Ultra not only aids in infection control but also supports clinician productivity and employee retention.


Key Features
  • Anti-Microbial Housing: Enhanced resilience against germs and bacteria.
  • Improved Design: Reduced nooks and crannies for easy cleaning.
  • Multiple Operating Modes: Options like Patient Do-Not Disturb, Vibration, and Scan Lamp for optimal comfort.
  • Green-Dot Aimer: Improves scan accuracy and targeting.
  • Compatible with Existing Cables: Use existing cables from the Xenon XP 1950h.
  • Honeywell Scanner Management Utility: Simplifies scanner deployment and updates.

Specifications
  • Mechanical:
    • Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
    • Weight: 147.2 g (5.2 oz)
    • Input Voltage: 4.4V DC to 5.5V DC
    • Host System Interfaces: USB, Keyboard Wedge, RS-232
  • Environmental:
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Humidity: 0% to 95% relative humidity, non-condensing
    • Drop Resistance: 1.8 m (6 ft) to concrete
    • Environmental Sealing: IP52
  • Scan Performance:
    • Image Sensor: 1280 x 1080 pixel array
    • Decode Capabilities: Reads standard 1D, PDF, 2D, and more
    • Illumination: White LED aimer light source
  • Warranty: 5-year factory warranty
Honeywell 1960HHD-5USB-N Barcode Scanner Overview

As a leader in scanning technology, healthcare organizations have chosen Xenon scanners to help ensure clinicians are delivering fast, accurate and reliable patient care.

Patients are becoming savvier and are having higher expectations of what excellent patient care should be - and it goes far beyond an office visit or single hospital stay.

The Xenon Ultra for healthcare is a premium evolution of the widely known legacy Xenon and Xenon XP healthcare scanners, taking our enhanced scan performance and reliability one step further

The Xenon Ultra 1960h incorporates Honeywell's next generation of scanning capability - allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

FEATURES AND BENEFITS

The Xenon Ultra offers an improved design reducing the amount of nooks or crannies to aid in the reduction of lingering germs.

In addition to a greendot aimer to visibly enhance targeting and improve scan accuracy, the newly engineered and innovative scan platform empowers snappy scanning operations.

Multiple operating modes are available to ensure maximum patient comfort while maintaining clinician productivity, such as Patient Do-Not Disturb, Vibration, and Scan Lamp.

Utilize the cable from your existing deployment of the Xenon XP 1950h on your new deployment of Xenon Ultra 1960.

The Honeywell Scanner Management Utility (SMU) creates a holistic solution that helps automate how you deploy and update the scanners in your environment.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:

Decode Capabilities: Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies

Light Source:
LED
Scanner Range:
High Density
Scanning Distance:
32.07"
Features:
  • Vibration
  • Beep
  • Notification LED
Cable Type Included:
USB
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157.48 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:

1.8 m (6 ft) to concrete across operating temp range

Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Color:
White
Interfaces/Ports
Host Interface:
USB
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Weight (Approximate):
5.19 oz
Miscellaneous
Package Contents:
  • Xenon Ultra 1960H Healthcare Corded Handheld Scanner
  • USB Type A 3 meter (9.84 feet) Straight Cable
Ingress Protection (IP) Rating:
IP52
Application/Usage:
Healthcare
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Honeywell 1960HHD-5USB-N reads standard 1D, PDF, 2D, Postal, and OCR symbologies. For a complete listing of all supported barcode symbologies, refer to the Honeywell Scanning & Mobility Supported Symbologies Datasheet available through Honeywell's compliance center. Contact us today to confirm specific symbology requirements for your healthcare application.

Yes, the Honeywell Xenon Ultra 1960h is specifically designed for healthcare organizations and chosen by clinicians to deliver fast, accurate, and reliable patient care. The scanner features an anti-microbial housing with silver-ion additives that resists multiple cleanings and discourages the growth of germs and bacteria, making it ideal for hospital and clinical settings. We offer this scanner as part of our healthcare barcode solution lineup.

The Honeywell 1960HHD-5USB-N connects via USB Type A with a 3M straight cable included in the kit. This wired connection ensures stable, continuous communication with your host system without the need for wireless configuration or battery management. Available from us in a complete USB healthcare kit configuration.

The Honeywell Xenon Ultra 1960h is a premium evolution of the Xenon and Xenon XP healthcare scanners, incorporating Honeywell's next generation of scanning capability. It features an improved design with fewer nooks and crannies to aid in the reduction of lingering germs, and its anti-microbial housing with silver-ion additives is resilient to multiple cleanings. Contact us today to learn more about how this upgraded model can enhance your healthcare operations.

The Honeywell 1960HHD-5USB-N features an area image scan pattern with HD focus capability, motion tolerance up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus, and scan angles of Horizontal 41.4° and Vertical 32.2° in HD mode. It can read symbols at pitch and skew angles of ±45° and ±65° respectively, with a minimum symbol contrast of 20% reflectance difference. Visit barcodesinc.com for detailed technical specifications.

The Honeywell 1960HHD-5USB-N comes with a 3-year factory warranty and features a disinfectant-ready housing designed to withstand harsh chemical cleanings common in healthcare environments. The scanner's durable construction protects your investment while maintaining reliable performance in clinical settings. Contact us today to discuss warranty options and support for your healthcare scanning deployment.

The Honeywell 1960HHD-5USB-N Barcode Scanner is also known as HSM-1960HHD5USBN or 1960HHD5USBN.
