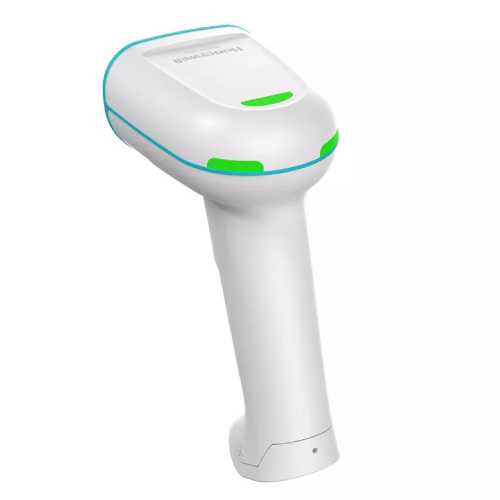

Honeywell 1960h – Barcode Scanner – Corded – 2D – Scanner Only

Part Number: 1960HHD-5-N
Model: Xenon 1960h
3-year Premium Plus ($110.43)
3-year Premium ($55.73)
No Support
Add to My Shopping List Add to Compare
$306.89
In Stock

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Connectivity
Corded
Form Factor
Handheld
Interface Options
Serial
Scanner Capability
2D

Product Description:

  Barcode Scanners, Honeywell, 1960h Healthcare Scanner Only, White, Anti-Microbial Housing, HD focus, 1D/2D, PDF417, Vibration
Explore all Honeywell Xenon 1960h Barcode Scanners
Add to Quote
Honeywell 1960HHD-5-N Barcode Scanner
Honeywell 1960HHD-5-N Barcode Scanner
Honeywell 1960HHD-5-N Barcode Scanner Honeywell 1960HHD-5-N Barcode Scanner
Frequently Purchased Together
Total: $00.00
Full specifications (PDF)

Honeywell Xenon 1960h Barcode Scanner Model Overview

The XENON™ ULTRA 1960h Healthcare Corded Handheld Scanner is engineered for precision and speed, serving as a vital tool for healthcare organizations committed to delivering exceptional patient care. With enhanced scan performance and reliability, it ensures that clinicians can conduct their duties efficiently while adapting to the evolving expectations of patients. Featuring a sleek anti-microbial housing designed to withstand multiple cleanings, the Xenon Ultra not only aids in infection control but also supports clinician productivity and employee retention.


Key Features
  • Anti-Microbial Housing: Enhanced resilience against germs and bacteria.
  • Improved Design: Reduced nooks and crannies for easy cleaning.
  • Multiple Operating Modes: Options like Patient Do-Not Disturb, Vibration, and Scan Lamp for optimal comfort.
  • Green-Dot Aimer: Improves scan accuracy and targeting.
  • Compatible with Existing Cables: Use existing cables from the Xenon XP 1950h.
  • Honeywell Scanner Management Utility: Simplifies scanner deployment and updates.

Specifications
  • Mechanical:
    • Dimensions: 108.2 mm x 70.4 mm x 160.2 mm (4.3 in x 2.8 in x 6.3 in)
    • Weight: 147.2 g (5.2 oz)
    • Input Voltage: 4.4V DC to 5.5V DC
    • Host System Interfaces: USB, Keyboard Wedge, RS-232
  • Environmental:
    • Operating Temperature: 0°C to 50°C (32°F to 122°F)
    • Humidity: 0% to 95% relative humidity, non-condensing
    • Drop Resistance: 1.8 m (6 ft) to concrete
    • Environmental Sealing: IP52
  • Scan Performance:
    • Image Sensor: 1280 x 1080 pixel array
    • Decode Capabilities: Reads standard 1D, PDF, 2D, and more
    • Illumination: White LED aimer light source
  • Warranty: 5-year factory warranty
Honeywell 1960HHD-5-N Barcode Scanner Overview

As a leader in scanning technology, healthcare organizations have chosen Xenon scanners to help ensure clinicians are delivering fast, accurate and reliable patient care.

Patients are becoming savvier and are having higher expectations of what excellent patient care should be - and it goes far beyond an office visit or single hospital stay.

The Xenon Ultra for healthcare is a premium evolution of the widely known legacy Xenon and Xenon XP healthcare scanners, taking our enhanced scan performance and reliability one step further.

The Xenon Ultra 1960h incorporates Honeywell's next generation of scanning capability - allowing patient care to stay top priority for clinicians, helping improve retention of employees and helping lower the total cost of ownership for hospitals.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Reads standard 1D, PDF, 2D, Postal Digimarc, DOT Code, and OCR symbologies Note: Decode capabilities dependent on configuration
Light Source:
LED
Image Sensor Type:
Imager
Depth of Field:
  • 18mm - 174mm (0.71in - 6.84 in) @ 3 mil Code 39
  • 7mm - 295mm (0.29 in - 11.62 in) @ 5 mil Code 39
  • 0 mm - 548 mm (0 in - 21.57 in) @ 10 mil Code 39
  • 0 mm - 502 mm (0 in - 19.77 in) @ 13 mil UPC
  • 0 mm - 345 mm (0 in - 13.6 in) @ 7.5 mil Code 128
  • 0 mm - 563 mm (0 in - 22.17 in) @ 15 mil Code 128
  • 4 mm - 814 mm (0.17 in - 32.07 in) @ 20 mil Code 39
  • 22 mm - 173 mm (0.86 in - 6.82 in) @ 5 mil PDF417
  • 8 mm - 237 mm (0.32 in - 9.32 in) @ 6.7 mil PDF417
  • 35 mm - 113 mm (1.39 in - 4.43 in) @ 5 mil DM
  • 16 mm - 183 mm (0.62 in - 7.19 in) @ 7.5 mil DM
  • 2 mm - 249 mm (0.76 in - 9.8 in) @ 10 mil DM
  • 1 mm - 230 mm (0.05 in - 9.07 in) @ 10 mil QR
  • 0 mm - 392 mm (0 in - 15.43 in) @ 20 mil QR
Scan Pattern:
Area
Scanner Range:
High Density
Scanning Distance:
32.07"
Features:
  • Vibration
  • Beep
  • Notification LED
Field of View (Horizontal):
42°
Field of View (Vertical):
36°
Reading Angle (Skew):
65°
Reading Angle (Pitch):
65°
Reading Angle (Roll):
360°
Motion Tolerance:
157.48 in/s
Maximum Ambient Light:
100000 lux
Drop Specification:
  • 31.8 m (6 ft) to concrete across operating temp range
Minimum Print Contrast:
15%
Minimum Element Resolution (Code 39):
3 mil
Maximum Element Resolution (Code 39):
20 mil
Minimum Element Resolution (DataMatrix):
5 mil
Maximum Element Resolution (DataMatrix):
10 mil
Minimum Element Resolution (PDF417):
5 mil
Maximum Element Resolution (PDF417):
6.7 mil
Image Sensor Resolution:
1280 x 1080
Illumination Type:
LED
Illumination Color:
White
Air Electrostatic Discharge (+/-):
15kV
Interfaces/Ports
Host Interface:
  • USB
  • Keyboard Wedge
  • Serial
Power Description
Maximum Operating Power Consumption:
2.50 W
Environmental Conditions
Operating Temperature:
32°F (0°C) to 122°F (50°C)
Storage Temperature:
-40°F (-40°C) to 158°F (70°C)
Humidity (Non-condensing):
0% to 95%
Physical Characteristics
Form Factor:
Handheld
Color Family:
White
Product Color:
White
Weight (Approximate):
5.19 oz
Miscellaneous
Ingress Protection (IP) Rating:
IP52
Application/Usage:
Healthcare
Item Numbers
UNSPSC: 43211701

Frequently Asked Questions

The Honeywell Xenon Ultra 1960h features anti-microbial housing with silver-ion additives that discourages the growth of germs and bacteria, making it ideal for clinical settings. Its design incorporates fewer nooks and crannies to reduce lingering germs, and it's built to withstand multiple cleanings and disinfectant protocols. We offer this scanner specifically for healthcare organizations that require infection control-ready equipment for patient care delivery.

The 1960HHD-5-N reads standard 1D, PDF417, 2D, Postal, and OCR symbologies with its area image scanning technology. It features a 838 x 640 pixel array that delivers reliable decode capability across a wide range of barcode types commonly used in healthcare and logistics environments. For a complete listing of all supported barcode symbologies, refer to Honeywell's official symbologies documentation.

The 1960HHD-5-N is a corded scanner with USB, Keyboard Wedge, and RS-232 host system interfaces for direct connection to your infrastructure. This wired configuration provides consistent power and data connectivity without the need for battery management or wireless pairing. Contact us today to discuss whether a corded or wireless scanning solution best fits your facility's workflow requirements.

The Honeywell 1960HHD-5-N is designed to withstand 50 drops of 1.8 meters (6 feet) to concrete, making it highly durable for active healthcare and warehouse environments. It features IP41 environmental sealing and operates reliably across light levels from 0 to 100,000 lux, with an operating temperature range of 0°C to 50°C (32°F to 122°F). Available from us with a 5-year factory warranty for long-term reliability.

The scanner delivers a horizontal scan angle of 41.4° and vertical scan angle of 32.2° with HD focus capability, allowing flexibility in barcode positioning. It supports motion tolerance up to 610 cm/s (240 in/s) for 13 mil UPC at optimal focus, and handles pitch and skew angles of ±45° and ±65° respectively. This performance makes it suitable for fast-paced clinical and warehouse scanning tasks.

The Xenon Ultra 1960h represents the next generation of Honeywell's healthcare scanning platform, building on the legacy of the Xenon and Xenon XP models with improved anti-microbial design and enhanced scanning capability. It maintains the proven reliability of previous generations while adding silver-ion additives to the housing for superior infection control. Visit barcodesinc.com to compare specifications or contact us today for guidance on upgrading your scanning infrastructure.

The Honeywell 1960HHD-5-N Barcode Scanner is also known as HSM-1960HHD5N or 1960HHD5N.
