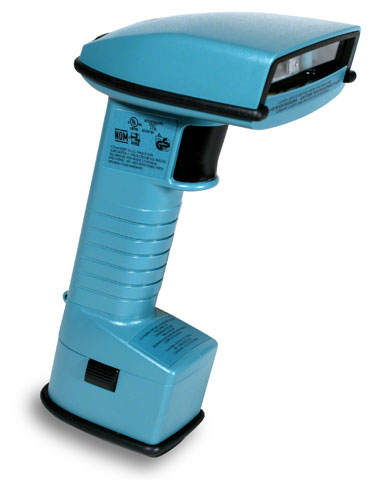

Hand Held ScanTeam 5770 – Barcode Scanner – 1D

Part Number: 5770ALRK-A2-PS2
Model: ScanTeam 5770
Add to My Shopping List Add to Compare
Discontinued Need Assistance?

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  advanced long range keyboard wedge kit: Scanner, PS/2 cable, base station, charge pack & quick start guide.
Explore all Hand Held ScanTeam 5770 Barcode Scanners
Add to Quote
Hand Held 5770ALRK-A2-PS2 Barcode Scanner
Hand Held 5770ALRK-A2-PS2 Barcode Scanner
Full specifications (PDF)

Hand Held ScanTeam 5770 Barcode Scanner Model Overview

The ScanTeam 5770 cordless scanner addresses the needs of many applications. It is designed for tough industrial use, such as on loading docks, where shipping and receiving of materials requires the freedom to move around.
Hand Held 5770ALRK-A2-PS2 Barcode Scanner Overview

The cordless SCANTEAM 5770ALR, designed to be easy to use, consists of the standard range laser scanner plus the SCANTEAM 2070 host interface base unit. The SCANTEAM 5770ALR is based on a strong product family background renown for high quality products. The SCANTEAM 2070 host interface base is also backed by a solid reputation for highly programmable options and a broad suite of supported terminal interfaces.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Wireless
Barcode Symbology Supported:
  • Codabar
  • Code 39
  • Code 128
  • ISBT 128
  • UPC
  • UPC-E
  • EAN/JAN
  • Code 2 of 5
  • Interleaved 2 of 5
  • Code 93
  • Code 11
  • ISBN
  • Telepen
Light Source:
Laser
Scan Rate:
36 scan/s
Depth of Field:
  • 20" - 37"@13mil
  • 40" - 88"@30mil
  • 26" - 99"@55mil
  • 123" - 321.6"@100mil - Retro Reflective
Power Description
Input Voltage:
6 V DC
Physical Characteristics
Weight (Approximate):
16 oz
Miscellaneous
Additional Information:

USB Cable separate

Certifications & Standards:

Laser Classification:

  • CDRH Class II(U.S)
  • Class IIIa (Europe)

Electromagnetic Emissions/Immunity:

  • USA: FCC Part 15 Class B
  • Canada: SOR 88/475 Class B
  • Europe: EN 55022 (CISPR22) Class B
  • EN 61000-3-2 & -3
  • ETS 300 826

Safety:

  • USA: UL listed
  • C22.2 No 950/UL 1950
  • Canada: cUL Listed
  • Europe: TUV Rheinland GS Licensed
  • EN 60950 (IEC950)
  • Australia: AS/NZS 3548

RF Approvals:

  • USA: FCC Part 15.249
  • Canada: RSS 210
  • Europe: ETS 300 328
  • Singapore: Type Approval for Spread Spectrum System
Item Numbers
UNSPSC: 43211701

Recommended Accessories

Category

  • Scanner Accessories (2)

Recommended Accessories for Model: Hand Held 5770ALRK-A2-PS2 Barcode Scanner

Top Scanner Accessories Purchased With Hand Held 5770ALRK-A2-PS2

Get help from a Barcoding Expert!

What type of Barcode are you scanning?

The Hand Held 5770ALRK-A2-PS2 Barcode Scanner is also known as HHP-5770ALRK-A2-PS2 or 5770ALRKA2PS2.
