Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800LX-15
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D

Product Description:

  extended long range IBM USB, Beige, Requires cable; NEW #3800G05E
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote
Hand Held 3800LX-15 Barcode Scanner
Hand Held 3800LX-15 Barcode Scanner
Hand Held 3800LX-15 Barcode Scanner
Hand Held 3800LX-15 Barcode Scanner Hand Held 3800LX-15 Barcode Scanner Hand Held 3800LX-15 Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LX-15 Barcode Scanner Overview

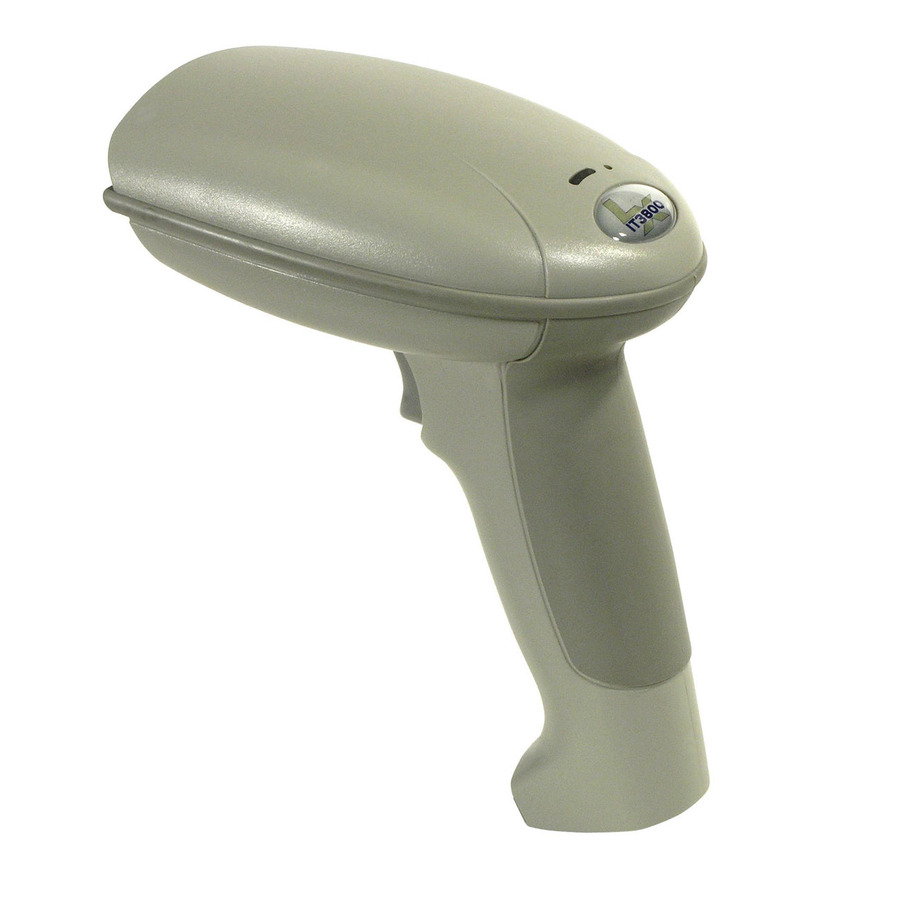

The ImageTeam(IT) 3800LX long range linear handheld imager combines a bright, sharp aiming line with extended reading distance capabilities to deliver exceptional performance in any lighting conditions. Its solid construction, rugged design and no internal moving parts ensures years of reliable service, even in demanding work environments. The IT3800LX connects to all popular PCs, POS systems, and portable data terminals. Backed by an industry leading 5-year warranty, the IT3800LX is ideal for applications such as retail point-of-sale, in-store inventory, document management, transaction processing, and outdoor retail applications.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9
  • PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
Light Source:
LED
Image Sensor Type:
Imager
Scan Rate:
270 scan/s
Maximum Scan Resolution:
6.50 mil
Depth of Field:
  • 2" - 16"@100% UPC
  • 3" - 36"@40mil
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Additional Information:

Decoded Output USB Retail Interface

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED

Safety:

  • Class 1
  • UL
  • cUL listed
  • TÜV
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
