Honeywell 3800g – Barcode Scanner – 1D

Part Number: 3800G05E
Model: 3800g
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  SCANNER ONLY, 1D Linear Imager, PS/2. Cables must be purchased separately. PS/2 cable (Part# 42206132-02E). Color: White.
Explore all Honeywell 3800g Barcode Scanners
Add to Quote
Honeywell 3800G05E Barcode Scanner
Honeywell 3800G05E Barcode Scanner
Honeywell 3800G05E Barcode Scanner
Honeywell 3800G05E Barcode Scanner Honeywell 3800G05E Barcode Scanner Honeywell 3800G05E Barcode Scanner
Full specifications (PDF)

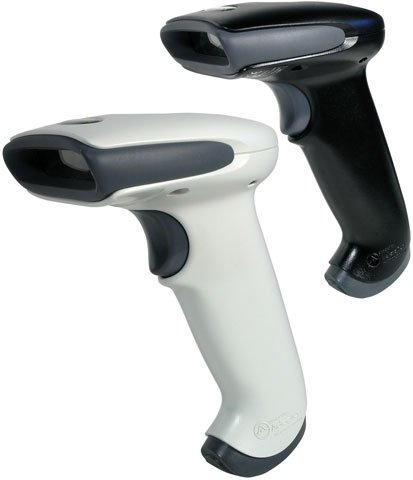

Honeywell 3800g Barcode Scanner Model Overview

The 3800g is built to deliver world-class performance for a broad range of applications in retail, manufacturing, warehousing, distribution and all points in between. Featuring the ideal balance of performance, durability, ergonomics and connectivity options, the 3800g will deliver years of hassle-free service. The 3800g features improved depth of field, fast barcode reading and high tolerance to motion, plus a convenient variety of connectivity options, including USB, PS/2 Keyboard Wedge and RS232 Serial.

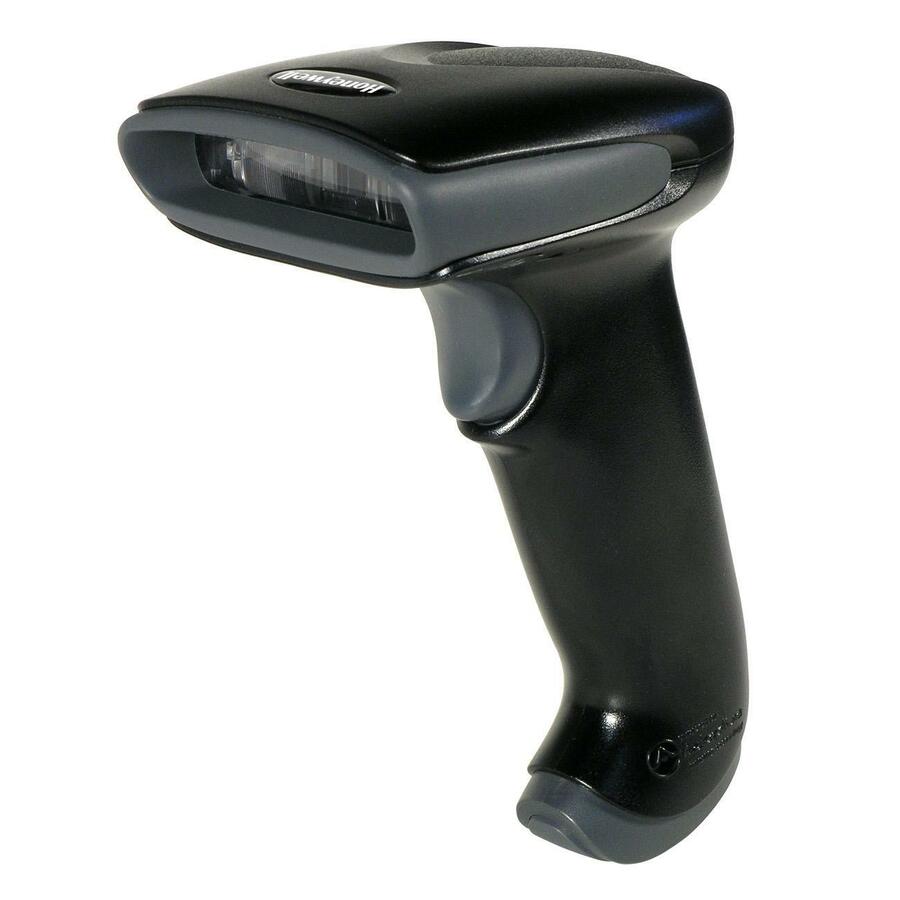

Honeywell 3800G05E Barcode Scanner Overview

The 3800g Bar Code Reader, first linear imager to earn the Adaptus Imaging Technology brand, the new 3800g is powered by Adaptus 5.0, delivering breakthrough linear imaging performance and versatility. Fast, intuitive bar code reading across a range of high and low density codes, the 3800g quickly reads even damaged and poorly printed bar codes - all in a single device.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
  • 1D
  • 2D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Straight 2 of 5 Industrial
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • GS1 DataBar
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
3 mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Product Color:
Ivory
Height:
5.9"
Width:
3.1"
Depth:
4.4"
Weight (Approximate):
5.60 oz
Miscellaneous
Additional Information:

Supported Interfaces:

  • Keyboard Wedge
  • RS-232
  • USB

USB Cable separate

Certifications & Standards:
  • FCC Class B
  • CE EMC Class B
  • CE Low Voltage Directive
  • IEC60825-1 LED Safety: Class 1
  • UL
  • cUL listed
  • RoHS
Environmentally Friendly:
Yes
Warranty
Limited Warranty:
5 Year
Item Numbers
UNSPSC: 43211701
