Hand Held ImageTeam 3800 – Barcode Scanner – 1D

Part Number: 3800LR-11E
Model: ImageTeam 3800
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

Scanner Capability
1D
Scanner Type
Imager

Product Description:

  Long range High performance linear imager, Decoded output with Retail interface
Explore all Hand Held ImageTeam 3800 Barcode Scanners
Add to Quote

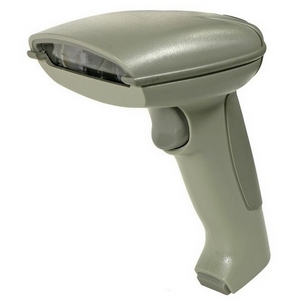

Hand Held 3800LR-11E Barcode Scanner
Hand Held 3800LR-11E Barcode Scanner
Hand Held 3800LR-11E Barcode Scanner
Hand Held 3800LR-11E Barcode Scanner Hand Held 3800LR-11E Barcode Scanner Hand Held 3800LR-11E Barcode Scanner
Full specifications (PDF)

Hand Held ImageTeam 3800 Barcode Scanner Model Overview

This durable model is excellent in handheld scanning applications, such as point of sale where hand scanning is required for large bulky items, shipping and warehousing or anywhere where low to medium density barcodes are being read 2 to 3 feet away. The ImageTeam 3800 can be used indoors or outside in bright sunlight.
Hand Held 3800LR-11E Barcode Scanner Overview

The 3800 LR is a high performance, handheld Bar Code Reader. The 3800LR uses linear imaging technology to set new standard for handheld scanners by combining a bright, sharp aiming line with high resolution imaging to deliver exceptional reading performance. The 3800 LR handle is smoothly contoured to fit all size hands, plus has a soft grip area to add comfort and prevent slipping. Its aesthetically pleasing look surrounds a rugged, durable construction, built for demanding work environments.

Full specifications (PDF)
Technical Information
Connectivity Technology:
Cable
Scanning Capability:
1D
Barcode Symbology Supported:
  • Codabar
  • Code 3 of 9 including PARAF
  • Interleaved 2 of 5
  • Code 2 of 5
  • Matrix 2 of 5
  • Code 11
  • Code 93
  • Code 128
  • UPC
  • EAN/JAN
  • China Postal Code
  • RSS
  • PDF 417
Light Source:
LED
Image Sensor Type:
Linear
Scan Rate:
270 scan/s
Maximum Scan Resolution:
5 mil
Depth of Field:
  • 2.5" - 4"@3mil - 100% UPC
  • 2.5" - 6.5"@5mil
  • 2" - 7.5"@7.5mil
  • 1" - 9.5"@13mil
Scan Pattern:
Linear
Interfaces/Ports
Host Interface:
Multi-interface
Power Description
Input Voltage:
5 V DC
Physical Characteristics
Form Factor:
Handheld
Color:
Beige
Height:
6"
Width:
3.1"
Depth:
5.3"
Weight (Approximate):
6.30 oz
Miscellaneous
Package Contents:
  • 3800LR Bar Code Reader
  • 10 ft.USB Type A Coiled Cable
Additional Information:

Supported Interface:

  • OCIA

    • Platform Supported:
    • PC
    • Mac
    Certifications & Standards:
    • FCC Class B
    • CE EMC Class B
    • CE Low Voltage Directive
    • IEC60825-1

    LED Safety:

    • Class 1
    • UL
    • cUL
    • TUV
    Warranty
    Limited Warranty:
    5 Year
    Item Numbers
    UNSPSC: 43211701
