GVision L15AX-JA-452G Touchscreen

GVision P15BX-AB-459G Touchscreen A newer version of this item is available.
It is replaced by the GVision P15BX-AB-459G Touchscreen.

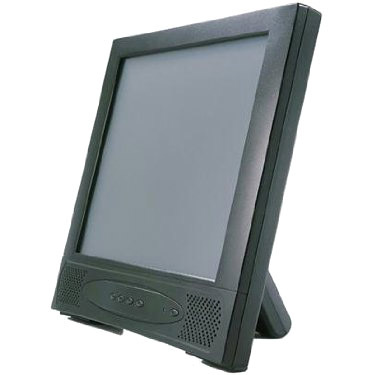

GVision L15AX - GVision L15AX Touchscreen LCD Monitor - 15" - 5-wire Resistive - 1024 x 768 - 0.297mm
  • The 400:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • 5-wire Resistive technology can be activated with virtually any object such as a stylus, gloved hand, pen and your fingers
Read More

Need a different version? See all GVision L15AX Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
GVision L15AX-JA-452G Touchscreen
GVision L15AX-JA-452G Touchscreen GVision L15AX-JA-452G Touchscreen
GVision L15AX-JA-452G Touchscreen
GVision L15AX-JA-452G Touchscreen
Full specifications (PDF)
GVision L15AX Touchscreen Model Overview
The most popular GVision 15" POS touchscreen with resolutions up to 1024x768 and a "no-wobble" photoframe stand and resistive GTouch sensor. The L15AX has a high contract color TFT LCD display that supports resolutions up to XGA 1024x768 and is compatible with IBM and VESA standards. Also comes equipped with advanced OSD control for picture quality adjustment and a built-in audio system.
GVision L15AX-JA-452G Touchscreen Overview

High contrast color TFT LCD display supports resolution. Support DDC1/2B for Plug & Play compatibility. Advanced OSD control for picture quality adjustment. Built-in audio system. Stable photo frame stand for touch solution

Full specifications (PDF)
Technical Information
Screen Size Class:
15"
Viewable Screen Size:
15"
Screen Mode:
XGA
Response Time:
16 ms
Aspect Ratio:
4:3
Horizontal Viewing Angle:
150°
Vertical Viewing Angle:
125°
Horizontal Frequency:
60 kHz
Video
Maximum Resolution:
1024 x 768
Standard Refresh Rate:
75 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
400:1
Brightness:
250 Nit
Audio
Speakers:
Yes
Number of Speakers:
2
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
5-wire Resistive
Interfaces/Ports
VGA:
Yes
Built-in Devices
Built-in Devices:
Speaker
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
36 W
Physical Characteristics
Height:
12.8"
Width:
15"
Depth:
3.5"
Weight (Approximate):
9.48 lb
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0012300118705, 0044111289183, 0787668587578, 0801706034159, 4923213100908
UPC: 012300118705, 044111289183, 787668587578, 801706034159
EAN: 0012300118705, 0044111289183, 0787668587578, 0801706034159, 4923213100908
UNSPSC: 43211903
