GVision P15BX-AB-459G Touchscreen

The GVision P15BX-AB-459G Touchscreen has been discontinued.
No direct replacement is available.
Please contact us for a suitable substitute.

GVision P15BX - GVision P15BX-AB-459G 15" LCD Touchscreen Monitor - 4:3 - 8 ms - 15" Class - 5-wire Resistive - 1024 x 768 - XGA - Adjustable Display Angle - 16.7 Million Colors - 700:1 - 250 Nit - CCFL Backlight - Speakers - DVI - USB - VGA - Black - T, RoHS, WEEE - 3 Year

Experience an energetic display of colors, contrast and pictures with the xga lcd touchscreen monitor
The XGA touchscreen highlights XGA display with the resolution of up to 1024 x 768 pixels
The 700:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
CCFL backlighting technology enabled for a bright and sharp display
Furnishes captivating visuals with about 250 Nit brightness levels
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all GVision P15BX Touchscreens

Discontinued Need Assistance?

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

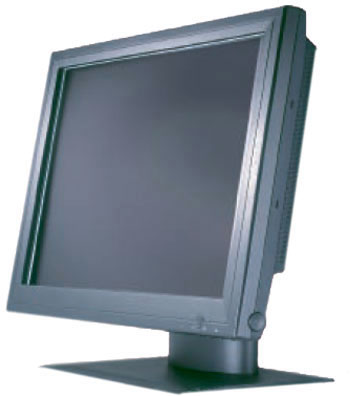

GVision P15BX Touchscreen Model Overview

The P15BX is a 15" touch screen monitor for POS applications. It features fashionable housing and a stable aluminum stand. The P15BX has a high contract color TFT LCD open frame display that supports resolutions up to XGA 1024x768. It is also compatible with IBM VGA and VESA standards. The P15BX comes with a built-in power adapter and cable management that is designed in the base.

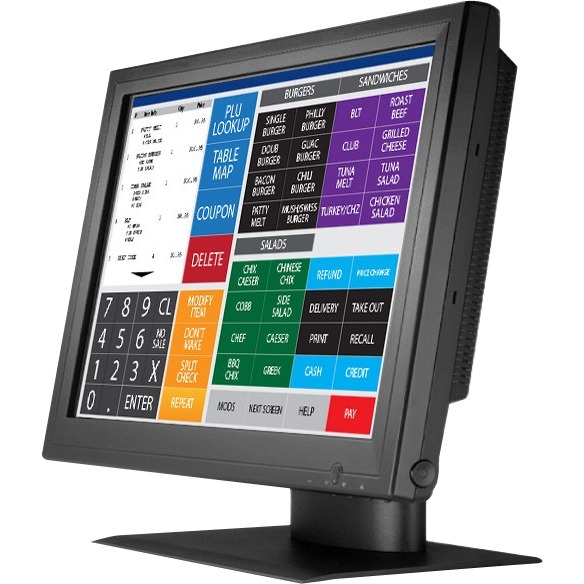

GVision P15BX-AB-459G Touchscreen Overview

GVision's P15BX is a 15" touch screen display designed specifically for use in rugged and harsh point-of-sale (POS) environments. The P15BX has an aluminum adjustable base that can be tilted from -5° to 90° or you can simply remove the base and use the industry standard VESA 75mm mounting options so it can easily be mounted on a wall or articulated arm. It is the ideal solution for demanding applications that requires a stable monitor and resilient touchscreen.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare
Anti-reflective

Response Time:

8 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

140°

Vertical Viewing Angle:

130°

Adjustable Display Angle:

Yes

Mount Type:

Wall Mountable
Arm-mountable
Desk Mountable

Backlight Technology:

CCFL

Tilt Angle:

-5°to90°

Features:

Tempered Glass
Sunlight Readable
Water Proof
Dust Resistant

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

75 Hz

Color Supported:

16.7 Million Colors

Contrast Ratio:

700:1

Brightness:

250 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

5-wire Resistive

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Built-in Devices

Built-in Devices:

USB Hub
Speaker

Power Description

Input Voltage:

120 V AC
230 V AC

Operating Power Consumption:

48 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Color:

Black

Height:

12.4"

Width:

13.8"

Depth:

5.5"

Weight (Approximate):

9.92 lb

Miscellaneous

Certifications & Standards:

IP54

EMC:

Safety:

UL
c-UL

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

TÜV
RoHS
WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0801706055482

UPC: 801706055482

EAN: 0801706055482

UNSPSC: 43211903
