Fargo 93691 ID Card Printer
Full specifications (PDF)

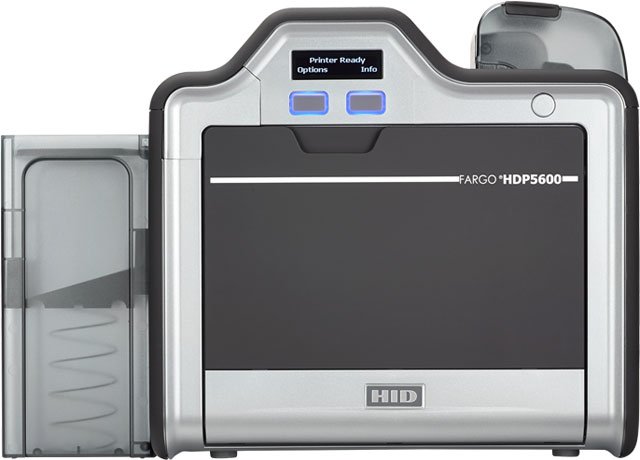

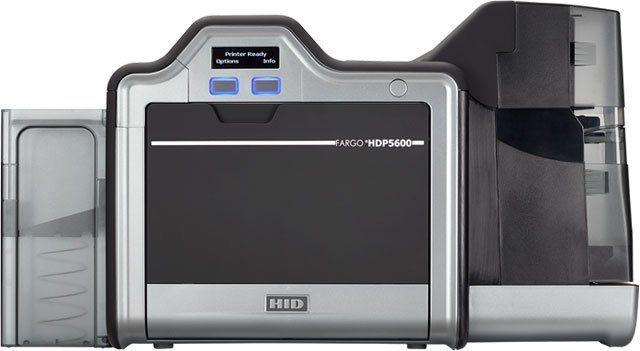

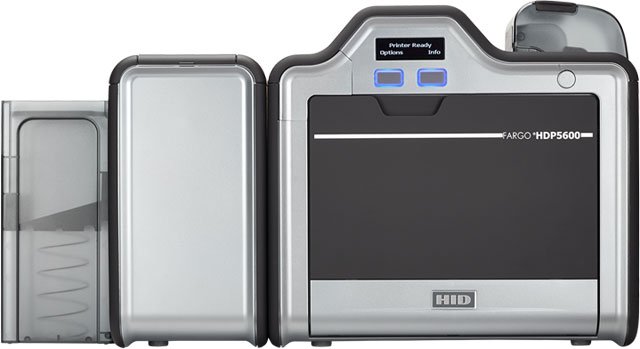

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93691 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93691
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93691
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93691
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution does the Fargo HDP5600 offer?
The Fargo HDP5600 features 600 dpi printing resolution, delivering superior text and image quality for high-definition ID cards and smart cards. This base model resolution is ideal for organizations requiring crisp, professional-grade card output for government agencies, universities, corporations, and healthcare facilities.
What encoding options are included with the Fargo 93691?
The Fargo 93691 comes equipped with ISO Magnetic Stripe Encoding, HID Prox (125 kHz) reader capability, and a Contact Smart Card Encoder (Omnikey Cardman 5125) for ISO7816-compatible smart cards. This all-in-one encoding solution supports magnetic stripe tracks 1, 2, and 3, making it versatile for multi-function card applications.
What card sizes and types does the HDP5600 accept?
The HDP5600 accepts standard CR-80 cards (3.375" L x 2.125" W) and CR-79 adhesive back cards, with card thickness ranging from .009" to .040" (9 mil to 40 mil). The printer works with PVC or polyester cards with polished PVC finish, providing flexibility for various ID card applications.
How fast can the Fargo HDP5600 print ID cards?
Print speed varies by ribbon configuration: 7 seconds per card for black-only (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color (YMCKO*), and 31 seconds for full-color with dual black panels (YMCKOK*). These speeds represent the time from card drop to output hopper and do not include encoding or PC processing time.
What connectivity options does the Fargo 93691 provide?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server, enabling both direct connection and network deployment. This dual-interface design supports flexible integration into existing IT infrastructure for enterprise and institutional environments.
What ribbon options are available for the Fargo HDP5600?
We offer multiple ribbon configurations including full-color with resin black and overlay (YMCKO*, 250 prints), full-color with dual black panels (YMCKOK*, 200 prints), fluorescing options (YMCFKO*, 200 prints), single-color options (KO*, 500 prints), and resin color ribbons in various hues (1000 prints each). The printer also supports rewrite technology that eliminates the need for ribbons on compatible cards.
