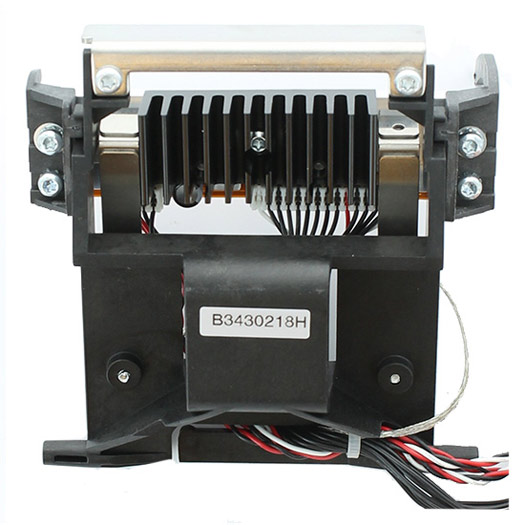

Fargo 86091 Printhead
Frequently Asked Questions
What print resolution does the Fargo 86091 printhead deliver?
The Fargo 86091 printhead delivers 300 dpi (11.8 dots/mm) continuous tone resolution, enabling sharp, professional-quality ID card printing with up to 16.7 million colors and 256 shades per pixel. This resolution is suitable for detailed graphics, photographs, and text on standard CR-80 and CR-79 card formats.
What ribbon options are compatible with the Fargo 86091 printhead?
The Fargo 86091 supports multiple ribbon configurations including full-color YMCKO (250 prints), full-color half-panel YMCKO (350 prints), dual resin black YMCKOK (200 prints), resin black KO (500 prints), dye-sublimation black BO (500 prints), and single-color resin ribbons in black, green, blue, red, white, silver, and gold (1000 prints each). The printhead also supports rewrite technology cards that require no ribbon.
What are the print speed specifications for the Fargo 86091?
Print speeds vary based on ribbon type: 7 seconds per card with resin black only (K*), 12 seconds with resin black and overlay (KO*), 24 seconds with full-color YMCKO, and 31 seconds with dual resin black and color YMCKOK. These speeds make the printhead suitable for both on-demand and batch ID card production in warehouse and logistics environments.
Which card sizes and thicknesses does the Fargo 86091 printhead accept?
The Fargo 86091 printhead accepts standard CR-80 cards (3.375˝L x 2.125˝W / 85.6mm x 54mm) and CR-79 adhesive-back cards (3.313˝L x 2.063˝W / 84.1mm x 52.4mm), with card thickness ranging from .009˝ to .040˝ (9 mil to 40 mil / .229mm to 1.0mm). The printable area extends edge-to-edge on CR-80 formats for maximum design flexibility.
What printing methods does the Fargo 86091 printhead support?
The Fargo 86091 printhead uses dye-sublimation and resin thermal transfer printing methods, allowing for continuous-tone color output and durable, professional-grade ID card production. These methods ensure vibrant colors and excellent print longevity across various ribbon configurations.
Is the Fargo 86091 printhead compatible with existing Fargo ID card printers?
The Fargo 86091 is designed for use with Fargo ID card printer systems including the HDP5000, HDP5600, and HDPii models. We recommend verifying compatibility with your specific printer model before purchase—contact us today for detailed compatibility information and to ensure proper integration with your existing equipment.
