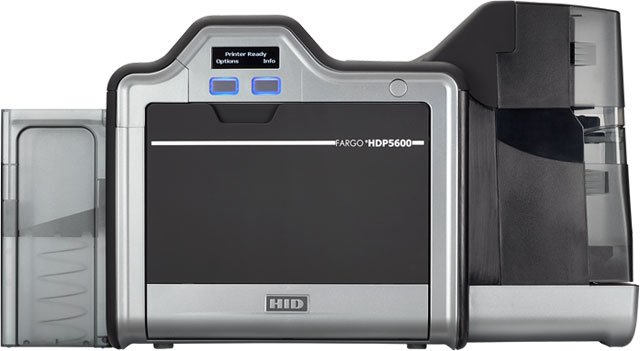

The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
Modular Design: Expandable with additional lamination and encoding modules.
Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
Print Speed:
Up to 24 seconds per card (150 cards/hour, YMC with transfer)
Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
Warranty: Three years, including one year of free loaner support (U.S. only)
Fargo 93672 ID Card Printer Overview

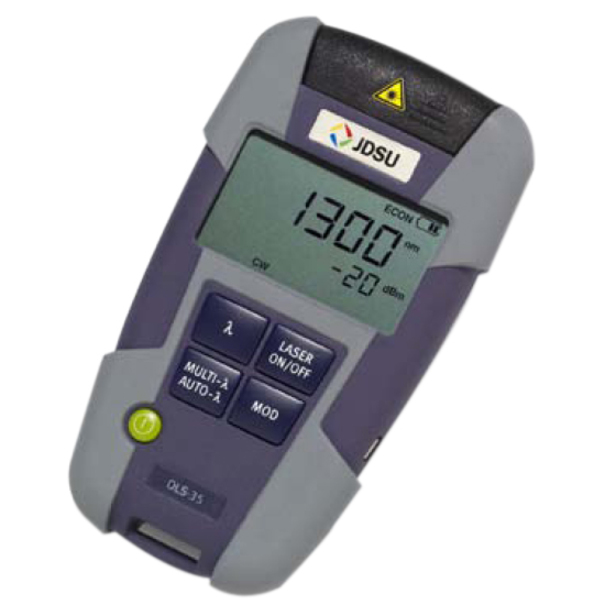

The JDSU OLS-3x series is the new generation of small and rugged optical light sources for quick, easy and convenient field insertion loss measurement and continuity check.
All JDSU sources are equipped with Auto- ? and Multi- ? functions compatible with any JDSU power meters. This one button operation provides a quick, simple and error-free testing solution, which makes SmartPocket sources the ideal tool for daily field testing.
What printing resolution does the Fargo HDP5600 offer?
The Fargo HDP5600 features 600 dpi printing resolution for superior text and image quality. This high-resolution capability makes it ideal for producing detailed ID cards and multi-function smart cards that require crisp, professional output across government agencies, universities, corporations, and healthcare facilities.
What smart card encoding options are available with this printer?
The HDP5600 supports multiple encoding standards including HID Prox (125 kHz), iCLASS and MIFARE/DESFire (13.56 MHz contactless), and Contact Smart Card encoding via Omnikey Cardman 5121 and 5125 readers. This versatility allows you to produce cards compatible with virtually any access control or identification system your organization requires.
What card sizes and types does the Fargo HDP5600 accept?
The printer accepts standard CR-80 cards (3.375" x 2.125") and CR-79 adhesive back cards, with card thickness ranging from .009" to .040" (9 mil to 40 mil). It works with PVC or polyester cards with polished PVC finish, making it compatible with most standard ID card stock available from us.
What connectivity options does the HDP5600 provide?
The HDP5600 offers both USB 2.0 and Ethernet connectivity with an internal print server, allowing flexible integration into your network infrastructure. This dual-interface design supports both direct connection to individual workstations and inline printing and encoding scenarios in high-volume production environments.
What ribbon options are available for color printing?
The HDP5600 supports multiple ribbon configurations including full-color YMCKO (250 prints), full-color with dual black panels YMCKOK (200 prints), and single-color options like resin black KO (500 prints). You can also choose specialized ribbons with fluorescing panels or leverage rewrite technology that requires no ribbon, depending on your card production needs.
Is the HDP5600 suitable for high-volume ID card production?
Yes, the HDP5600 is designed as an all-in-one solution for organizations that routinely produce large volumes of high-definition IDs and smart cards. With print speeds ranging from 7 seconds per card for single-color to 31 seconds for full dual-panel color output, combined with support for dual-sided printing and multiple encoding options, it delivers the throughput and capability needed for enterprise-scale card issuance programs. Contact us today to discuss your production requirements.
The Fargo 93672 ID Card Printer is also known as
FGO-93672
Full specifications (PDF)
