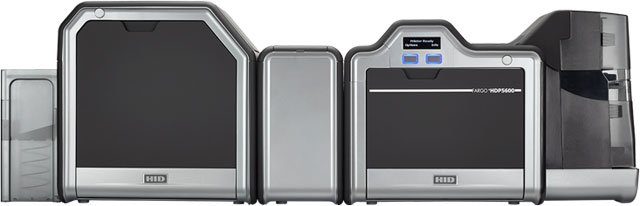

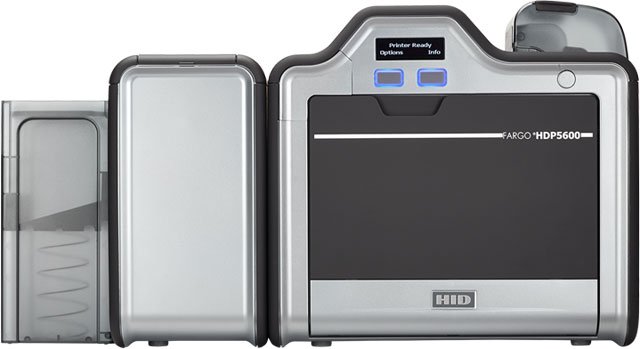

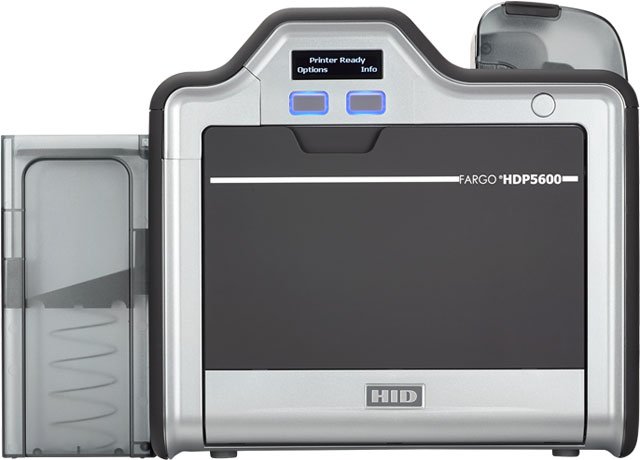

The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
Modular Design: Expandable with additional lamination and encoding modules.
Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
Print Speed:
Up to 24 seconds per card (150 cards/hour, YMC with transfer)
Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
Warranty: Three years, including one year of free loaner support (U.S. only)
Fargo 93670 ID Card Printer Overview

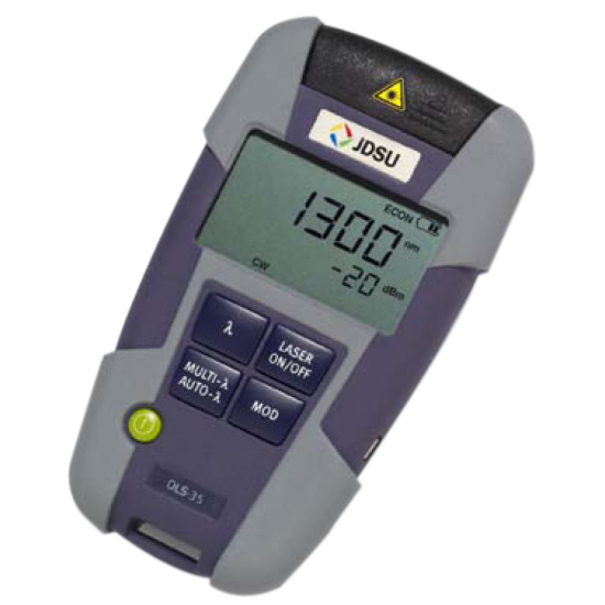

The JDSU OLS-3x series is the new generation of small and rugged optical light sources for quick, easy and convenient field insertion loss measurement and continuity check.
All JDSU sources are equipped with Auto- ? and Multi- ? functions compatible with any JDSU power meters. This one button operation provides a quick, simple and error-free testing solution, which makes SmartPocket sources the ideal tool for daily field testing.
What printing resolution and color capabilities does the Fargo HDP5600 offer?
The Fargo HDP5600 features 600 dpi printing resolution for superior text and image quality, with support for up to 16.7 million colors and 256 shades per pixel. This high-resolution capability makes it ideal for producing professional-grade ID cards with crisp text and vibrant imagery for government agencies, universities, corporations, and healthcare facilities.
What encoding options are available on the Fargo HDP5600?
The Fargo HDP5600 comes equipped with ISO Magnetic Stripe Encoder, iCLASS contactless smart card encoder, MIFARE/DESFire encoder, and Contact Smart Card Encoder (Omnikey Cardman 5121). These multi-function encoding capabilities allow you to produce smart cards and magnetic stripe cards in addition to standard photo ID cards.
What card sizes and types does the Fargo HDP5600 support?
The printer accepts standard CR-80 cards (3.375" L x 2.125" W) and CR-79 adhesive back cards, with a print area that covers edge-to-edge printing. It supports PVC or polyester cards with polished PVC finish, and accepts card thicknesses ranging from .009" to .040" (9 mil to 40 mil).
How fast can the Fargo HDP5600 print ID cards?
Print speed varies depending on the ribbon configuration: 7 seconds per card for single-color resin black, 12 seconds for black with overlay, 24 seconds for full-color YMCKO, and 31 seconds for full-color with dual black panels. These speeds represent the time from card drop to output hopper and do not include encoding time or PC processing.
What connectivity options does the Fargo HDP5600 provide?
The Fargo HDP5600 offers both USB 2.0 and Ethernet connectivity with an internal print server, allowing flexible deployment in networked environments. This dual-interface design supports both direct PC connection and inline printing and encoding configurations.
What ribbon options are available for the Fargo HDP5600?
We offer multiple ribbon configurations including full-color YMCKO (250 prints), full-color with dual black panels YMCKOK (200 prints), fluorescent options YMCFKO/YMCFKOK, and single-color options in black, green, blue, red, white, silver, and gold (1000 prints each). The printer also supports rewrite technology that requires no ribbon for certain applications.
The Fargo 93670 ID Card Printer is also known as
FGO-93670
Full specifications (PDF)
