Fargo 93669 ID Card Printer
Full specifications (PDF)

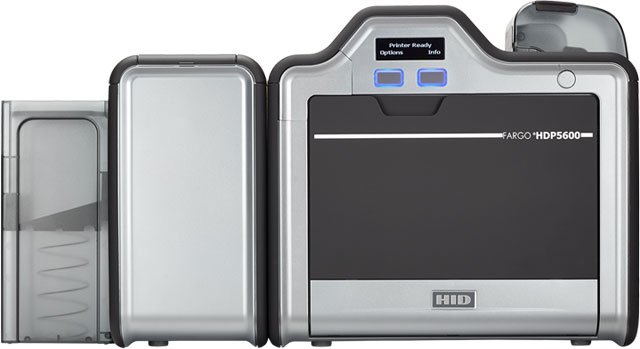

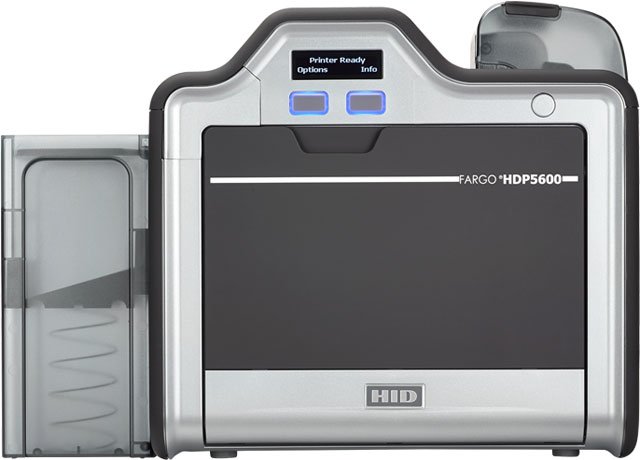

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93669 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93669
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93669
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93669
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution and color capabilities does the Fargo HDP5600 offer?
The Fargo HDP5600 delivers 600 dpi printing resolution for superior text and image quality, with support for up to 16.7 million colors and 256 shades per pixel. This high-resolution dye-sublimation and resin thermal transfer technology makes it ideal for producing professional-grade ID cards with crisp detail and vibrant color reproduction.
What encoding options are available with this ID card printer?
The HDP5600 comes equipped with both HID Prox (125 kHz) and Contact Smart Card Encoder (Omnikey Cardman 5125) capabilities as standard. This all-in-one solution supports ISO 7816 memory and microprocessor smart cards, making it suitable for multi-function credential applications across government, healthcare, and corporate environments.
What card sizes and thicknesses can the Fargo HDP5600 handle?
The printer accepts standard CR-80 cards (3.375" L x 2.125" W) and CR-79 adhesive back cards, with a print area that supports edge-to-edge printing. It can process card thicknesses ranging from .009" to .040" (9 mil to 40 mil), accommodating both PVC and polyester cards with polished PVC finish.
How fast can the HDP5600 print ID cards?
Print speed varies based on ribbon configuration: 7 seconds per card for single-color resin black, 12 seconds for black with overlay, 24 seconds for full-color YMCKO, and 31 seconds for dual black panel YMCKOK. These speeds are measured from card drop to output hopper and do not include encoding time or PC processing.
What ribbon options are available for this printer?
We offer multiple ribbon configurations including full-color YMCKO (250 prints), dual black panel YMCKOK (200 prints), fluorescent options YMCFKO (200 prints), single-color resin or dye-sublimation black (500-1000 prints), and specialty colors like green, blue, red, white, silver, and gold (1000 prints each). The printer also supports rewrite technology that requires no ribbon.
What are the connectivity and operating requirements for the HDP5600?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server, and operates within a temperature range of 65-80°F with 20-80% non-condensing humidity. It requires 100-240 VAC power supply at 3.3A and is compatible with Windows XP/Vista/7, Server 2003/2008, and Linux operating systems.
