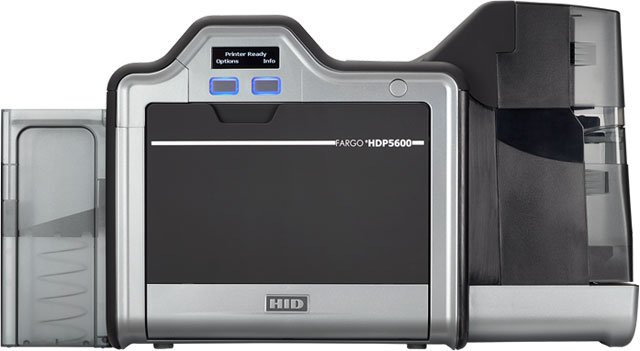

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93668 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93668
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93668
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93668
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution does the Fargo HDP5600 offer?
The Fargo HDP5600 features 300 dpi (11.8 dots/mm) continuous tone printing resolution, delivering high-quality text and image output for professional ID cards. This resolution supports up to 16.7 million colors with 256 shades per pixel for vibrant, detailed card designs.
What smart card encoding options are available with this printer?
The HDP5600 includes a Contact Smart Card Encoder (Omnikey Cardman 5121) and supports 13.56 MHz contactless encoding for iCLASS, MIFARE, and ISO 14443 A/B standards. It also reads and writes to all ISO7816 memory and microprocessor smart cards, making it ideal for multi-function credential applications.
What card sizes and thicknesses does the Fargo HDP5600 accept?
The printer accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive back cards, with a print area covering edge-to-edge on CR-80 format. Card thickness compatibility ranges from .009˝ to .040˝ (9 mil to 40 mil), supporting PVC or polyester cards with polished PVC finish.
How fast can the HDP5600 print ID cards?
Print speed varies by ribbon type: 7 seconds per card for resin black only (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color (YMCKO*), and 31 seconds for full-color with dual black panels (YMCKOK*). Speed measurements are taken from card drop to output hopper and do not include encoding or PC processing time.
What connectivity options does the HDP5600 provide?
The HDP5600 features both USB 2.0 and Ethernet connectivity with an internal print server, allowing flexible integration into network environments. Single-wire Ethernet encoding is available for iCLASS and contact smart card encoding applications.
What industries and applications is the HDP5600 designed for?
The HDP5600 is an all-in-one solution ideal for government agencies, universities, corporations, and healthcare facilities that need to produce large volumes of high-definition ID cards or multi-function smart cards. Its combination of 300 dpi printing, smart card encoding, and reliable performance makes it suitable for comprehensive credential management programs.
