Fargo 93653 ID Card Printer
Full specifications (PDF)

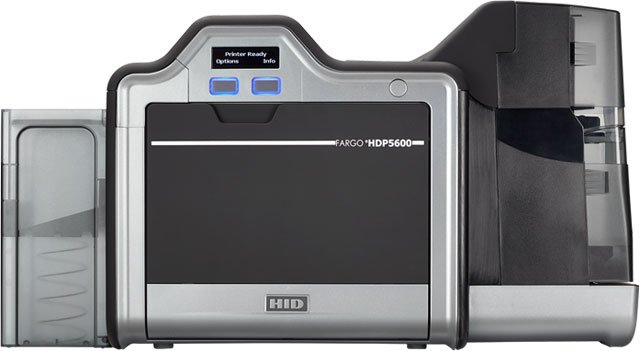

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93653 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93653
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93653
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93653
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution and card capacity does the Fargo HDP5600 offer?
The Fargo HDP5600 features 600 dpi printing resolution for superior text and image quality, making it ideal for high-definition ID production. It includes a 200-card input hopper and supports CR-80 standard card sizes with edge-to-edge printing capabilities, allowing organizations to produce large volumes of professional IDs efficiently.
What encoding options are available with the HDP5600?
The HDP5600 supports multiple encoding technologies including ISO Magnetic Stripe Encoding, HID Prox (125 kHz) readers, and contactless smart card encoders for iCLASS, MIFARE, and DESFire. It also includes contact smart card encoder options with Omnikey Cardman 5121 and 5125 modules, making it suitable for multi-function smart card applications across government, healthcare, and corporate environments.
Can the HDP5600 print on both sides of an ID card?
Yes, the HDP5600 offers dual-sided printing capability as a standard feature. This allows you to produce complete, professional ID cards with information and security features on both the front and back of each card in a single device.
What print speeds can I expect from the HDP5600?
Print speeds vary based on ribbon configuration: 7 seconds per card for single-color (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color (YMCKO*), and 31 seconds for full-color with dual black panels (YMCKOK*). These speeds are measured from card drop to output hopper and do not include encoding time or PC processing time.
What connectivity options does the HDP5600 provide?
The HDP5600 includes USB 2.0 and Ethernet connectivity with an internal print server, supporting both direct and networked printing environments. This dual connectivity allows flexible deployment in various IT infrastructure setups for government agencies, universities, corporations, and healthcare facilities.
What card types and thicknesses does the HDP5600 accept?
The HDP5600 accepts PVC or polyester cards with polished PVC finish in standard CR-80 and CR-79 adhesive back sizes, with print areas of 3.36˝L x 2.11˝W and 3.3˝L x 2.04˝W respectively. The printer supports card thickness from .009˝ to .040˝ (9 mil to 40 mil), accommodating standard ID card stock and multi-function smart cards.
