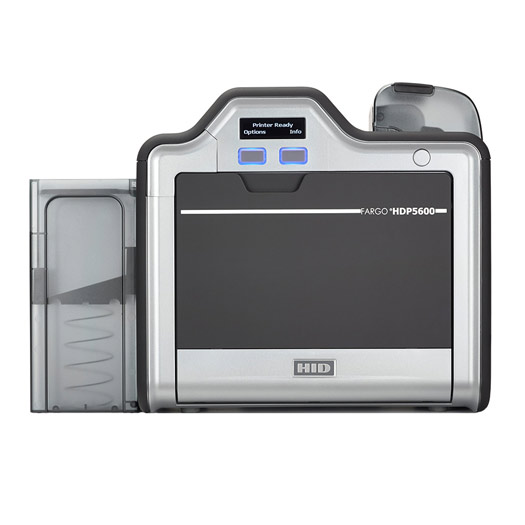

Fargo 93601 ID Card Printer
Full specifications (PDF)
Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93601 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93601
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93601
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93601
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What print resolution does the Fargo HDP5600 offer?
The Fargo HDP5600 delivers high-resolution printing at 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm), ensuring superior text and image quality for professional ID cards. The 600 dpi option is ideal for detailed graphics and security features that require crisp, clear output.
What is the print speed of the Fargo HDP5600 ID card printer?
The HDP5600 achieves print speeds up to 24 seconds per card (150 cards per hour) with YMC ribbon in batch mode, with speeds varying based on ribbon type and lamination options. For dual-sided printing with simultaneous lamination, the printer produces approximately 102 cards per hour with YMCK ribbon.
What card sizes and thicknesses does the Fargo HDP5600 support?
The HDP5600 accepts standard CR-80 card sizes (3.375" L x 2.125" W / 85.6 mm L x 54 mm W) with thicknesses ranging from .030" to .050" (0.762 mm to 1.27 mm). The printer features an input cartridge capacity of 100 cards and an output hopper capacity of 200 cards.
Can the Fargo HDP5600 encode magnetic stripes and smart cards?
Yes, the HDP5600 is an all-in-one solution that includes ISO magnetic stripe encoding capability as a base model feature. The printer also supports optional smart card encoding for both contact and contactless applications, making it versatile for multi-function ID card production.
What operating systems are compatible with the Fargo HDP5600?
The HDP5600 supports Windows 10, 8, 7, Vista, XP, Server 2012 R2, Server 2012, Server 2008 R2, Server 2008, Server 2003 R2, and Server 2003 R1, as well as Mac OS X v10.10 through v10.6 and Linux. This broad compatibility ensures seamless integration into most enterprise environments.
Is the Fargo HDP5600 suitable for high-volume ID card production?
Yes, the HDP5600 is specifically designed as a cost-effective solution for organizations that need to produce large volumes of high-definition IDs routinely. It is ideal for government agencies, universities, corporations, and healthcare facilities requiring reliable, all-in-one ID and smart card production capabilities.
