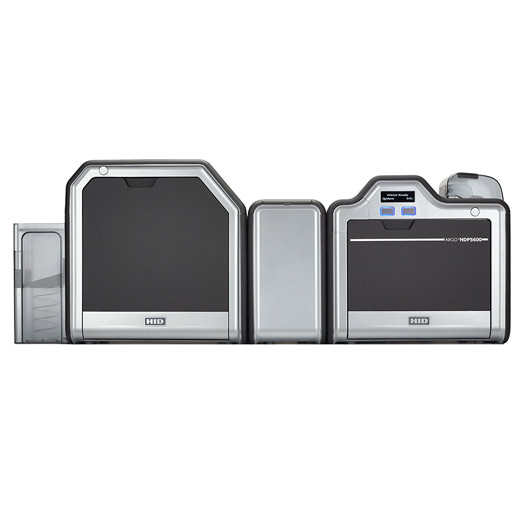

Fargo 93281 ID Card Printer
Full specifications (PDF)
Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93281 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93281
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93281
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93281
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution options are available on the Fargo HDP5600?
The Fargo HDP5600 is available in both 300 DPI and 600 DPI (23.6 dots/mm) printing resolution. The 600 DPI option produces crisp, photographic-quality images with brilliantly vibrant colors and precise printing of small text and barcodes, making it ideal for high-security credentials.
Can the HDP5600 print on both sides of an ID card?
Yes, the HDP5600 supports optional dual-sided printing through a field-upgradable flipper module that can be added at any time. Dual-sided printing provides extra space for additional cardholder information, barcodes, contact details, or duplicated information for enhanced visibility.
What encoding options does the HDP5600 support?
The HDP5600 can be upgraded with multiple encoding modules including ISO Magnetic Stripe Encoder (2 and 3 track), Omnikey Cardman 5121 (iClass, MIFARE, DESFire), Omnikey Cardman 5125 (HID Proximity), and Omnikey Cardman 5127 (iClass, MIFARE, DESFire, and HID Proximity). Smart card and proximity card encoders can be combined with the magnetic stripe encoder for flexible credential issuance.
What makes retransfer technology more secure than direct-to-card printing?
Retransfer technology prints card images onto a clear film that is fused to the card surface, so the printhead never contacts the card directly. This design makes counterfeiting more difficult because attempting to peel apart the card layers destroys the image, and the retransfer film itself adds a protective layer. Retransfer ribbons with holographic marks further increase security by reducing replication capability.
What lamination options are available for the HDP5600?
We offer single-sided and dual-sided lamination modules for the HDP5600 in standard laminates for durability, UV-resistant laminates for fade resistance, and holographic laminates for added security. Each laminate type is also available in special configurations for smart card and magnetic stripe cards.
How fast can the HDP5600 print ID cards, and what warranty does it include?
The HDP5600 is capable of printing up to 150 cards per hour with a 200-card output hopper, reducing downtime and supply trips. The system includes a 3-year manufacturer warranty and a lifetime printhead warranty to ensure reliable operation throughout the life of your printer.
