Fargo 93268 ID Card Printer
Full specifications (PDF)

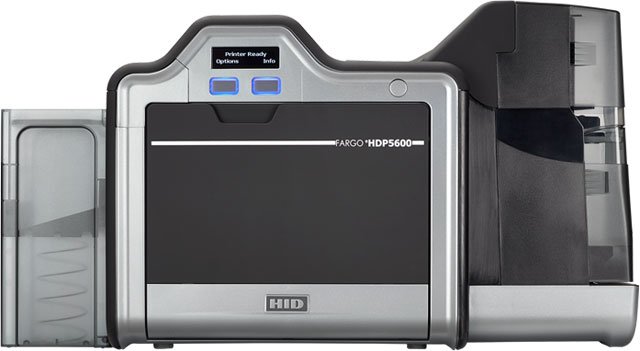

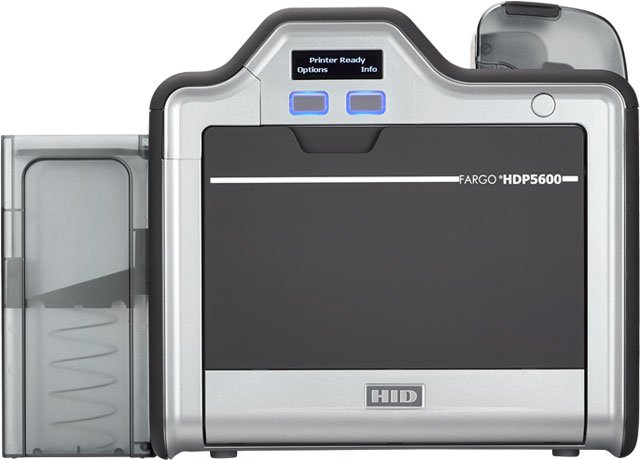

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93268 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93268
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93268
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93268
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution and color capabilities does the Fargo HDP5600 offer?
The Fargo HDP5600 features 300 dpi (11.8 dots/mm) continuous tone resolution with support for up to 16.7 million colors and 256 shades per pixel. This high-resolution capability ensures superior text and image quality for professional ID card production, making it ideal for government agencies, universities, corporations, and healthcare facilities that require crisp, detailed card output.
What smart card encoding options are available with the HDP5600?
The HDP5600 comes equipped with multiple encoding capabilities including iCLASS, MIFARE/DESFire contactless smart card encoding, and a Contact Smart Card Encoder (Omnikey Cardman 5121) that reads and writes to all ISO7816 1/2/3/4 memory and microprocessor smart cards. This all-in-one solution eliminates the need for separate encoding hardware.
What card sizes and thicknesses can the HDP5600 print on?
The HDP5600 accepts standard CR-80 cards (3.375˝L x 2.125˝W / 85.6mmL x 54mmW) and CR-79 adhesive back cards (3.313˝L x 2.063˝W / 84.1mmL x 52.4mmW). The printer supports card thickness from .009˝ to .040˝ (9 mil to 40 mil / .229mm to 1.016mm) and works with PVC or polyester cards with polished PVC finish.
What are the print speeds for different ribbon configurations?
Print speeds vary based on ribbon type: 7 seconds per card for single-color resin black (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color YMCKO*, and 31 seconds for full-color with dual black panels (YMCKOK*). These speeds are measured from card drop to output hopper and do not include encoding time or PC processing.
What ribbon options are available for high-volume ID card production?
We offer multiple ribbon configurations to suit different production needs, including full-color YMCKO* (250 prints), full-color half-panel YMCKO* (350 prints), dual black panel YMCKOK* (200 prints), single-color resin black (1000 prints), and specialty options like fluorescent and colored ribbons. The HDP5600 also supports rewrite technology that requires no ribbon for certain applications.
What connectivity and software options does the HDP5600 provide?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server for flexible deployment in networked environments. It includes FARGO Workbench diagnostic utility with Color Assist spot-color matching software and supports Windows XP/Vista/Server 2003 & 2008/Windows 7 and Linux drivers. Contact us today to discuss integration with your existing systems.
