Fargo 93250 ID Card Printer
Full specifications (PDF)

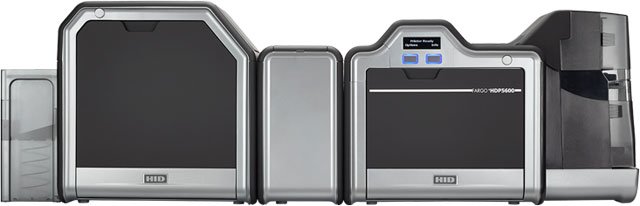

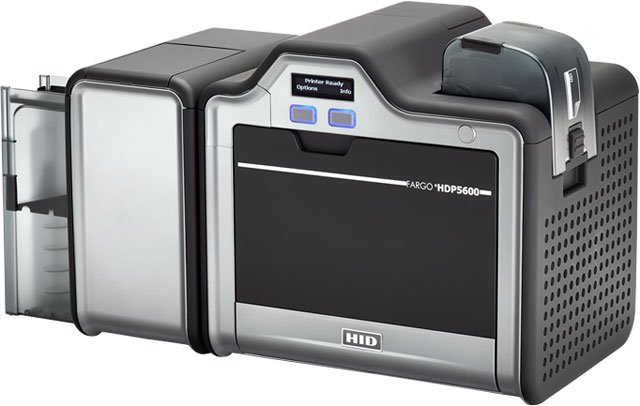

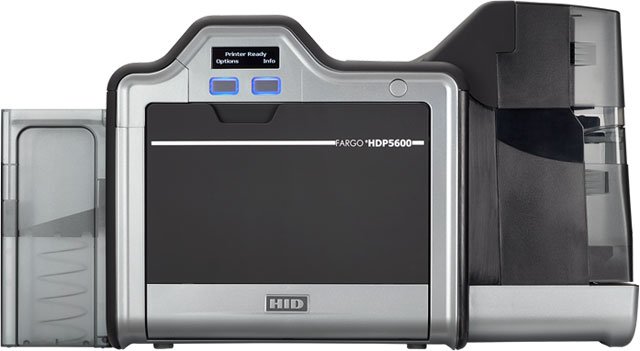

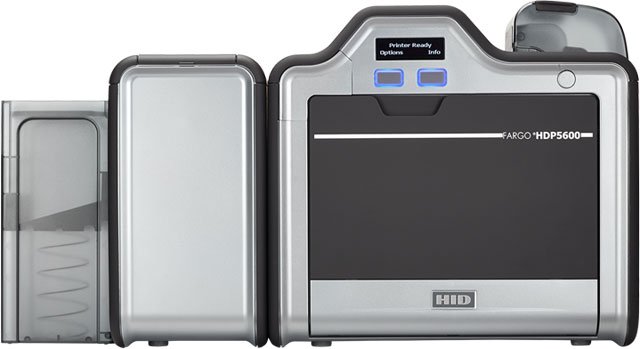

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.
- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93250 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93250
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93250
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93250
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What print resolution and color capabilities does the Fargo HDP5600 offer?
The Fargo HDP5600 delivers 300 dpi (11.8 dots/mm) continuous tone printing with support for up to 16.7 million colors and 256 shades per pixel. This high-resolution capability ensures superior text and image quality for professional ID cards and smart cards across government, university, corporate, and healthcare applications.
What encoding options are available with the Fargo HDP5600?
We offer the Fargo HDP5600 with multiple encoding capabilities including ISO magnetic stripe encoding, iCLASS contactless smart card encoding, MIFARE/DESFire contactless encoding, and contact smart card encoding via the Omnikey Cardman 5121 module. This all-in-one solution eliminates the need for separate encoding equipment.
What card sizes and types does the Fargo HDP5600 support?
The printer accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive-back cards, with a print area that extends edge-to-edge on CR-80 format. It supports PVC or polyester cards with polished PVC finish, and can handle card thickness from 0.009˝ to 0.040˝ (9 mil to 40 mil).
What print speeds can I expect from the Fargo HDP5600?
Print speeds vary based on ribbon configuration: 7 seconds per card for single-color resin black (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color YMCKO, and 31 seconds for full-color with dual black panels (YMCKOK*). These speeds are measured from card input to output and do not include encoding or PC processing time.
What ribbon options are available for the Fargo HDP5600?
We offer a wide range of ribbon configurations including full-color YMCKO (250 prints), dual black panel YMCKOK (200 prints), fluorescing options YMCFKO (200 prints), single-color options (500-1000 prints), and specialty colors like green, blue, red, white, silver, and gold. The printer also supports rewrite technology that requires no ribbon.
Is the Fargo HDP5600 suitable for high-volume ID card production?
Yes, the Fargo HDP5600 is specifically designed as a cost-effective solution for organizations that need to routinely produce large volumes of high-definition IDs and multi-function smart cards. Its combination of fast print speeds, multiple encoding options, and flexible ribbon configurations makes it ideal for government agencies, universities, corporations, and healthcare facilities with demanding production requirements. Contact us today to discuss your volume needs and find the right configuration available from us.
