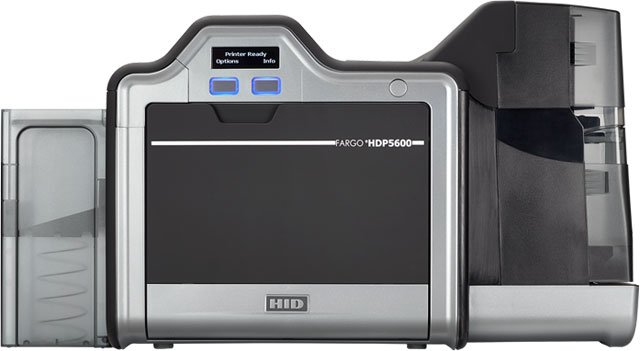

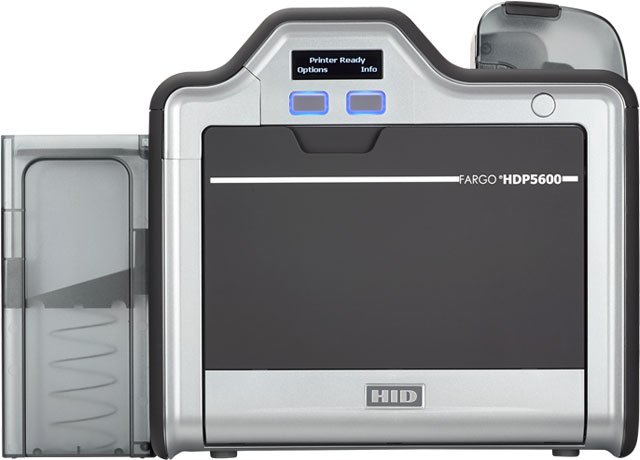

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.

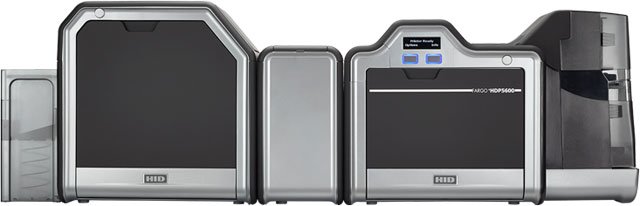

- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93224 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93224
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93224
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93224
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution and color capabilities does the Fargo HDP5600 offer?
The Fargo HDP5600 features 300 dpi (11.8 dots/mm) continuous tone printing with support for up to 16.7 million colors and 256 shades per pixel. This resolution delivers superior text and image quality ideal for high-definition ID card production in government agencies, universities, corporations, and healthcare facilities.
What encoding options are available with the Fargo HDP5600?
The HDP5600 comes standard with an ISO Magnetic Stripe Encoder and includes an Omnikey Cardman 5121 contactless encoder supporting iCLASS, MIFARE, and DESFire smart card technologies. These encoding capabilities make it suitable for multi-function smart card applications requiring both magnetic stripe and contactless functionality.
What card sizes and types does the Fargo HDP5600 accept?
The printer accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive back cards, with card thickness ranging from .009˝ to .040˝ (9 mil to 40 mil). Supported card types include PVC or polyester cards with polished PVC finish, with monochrome resin required for 100% polyester cards.
What are the print speeds for different ribbon configurations on the HDP5600?
Print speeds vary by ribbon type: 7 seconds per card for single-color (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color (YMCKO*), and 31 seconds for full-color with dual black panels (YMCKOK*). Print speed is measured from card drop to output hopper and does not include encoding time or PC processing time.
What connectivity and software options does the Fargo HDP5600 provide?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server, compatible with Windows XP, Vista, Server 2003/2008, Windows 7, and Linux operating systems. The printer includes FARGO Workbench diagnostic utility with Color Assist spot-color matching software for enhanced operation and troubleshooting.
What ribbon options are available for high-volume ID card production?
We offer multiple ribbon configurations to suit different production needs, including full-color YMCKO ribbons (250 prints), half-panel options (350 prints), dual black panel configurations (200 prints), fluorescent options (175-200 prints), and single-color resin or dye-sublimation ribbons (500-1000 prints). Rewrite technology is also available for applications requiring no ribbon consumption.
