Fargo 93223 ID Card Printer
Full specifications (PDF)

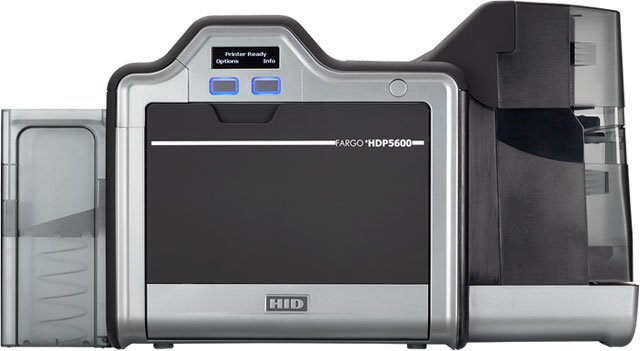

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.

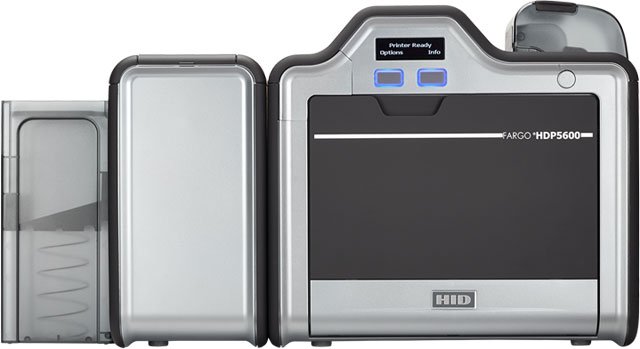

- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.

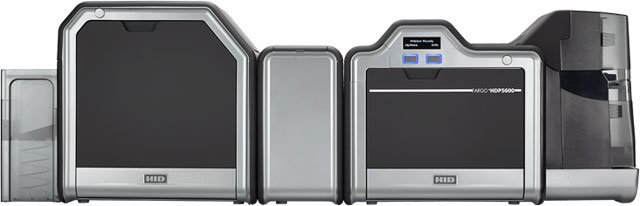

- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93223 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93223
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93223
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93223
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution does the Fargo HDP5600 offer?
The Fargo HDP5600 features a base model with 300 dpi (11.8 dots/mm) continuous tone printing, with a high resolution 600 dpi option available for superior text and image quality. This resolution capability makes it ideal for producing sharp, professional ID cards with detailed imagery and text.
What card sizes and types does this ID card printer support?
The HDP5600 accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive back cards (3.313˝L x 2.063˝W), with a print area that extends edge-to-edge on CR-80 format. The printer supports PVC or polyester cards with polished PVC finish, and accepts card thickness from .009˝ to .040˝ (9 mil to 40 mil).
What encoding options are available with the Fargo HDP5600?
The HDP5600 comes standard with an HID Prox Reader (Omnikey Cardman 5125) and supports multiple encoding options including 125 kHz HID Prox, 13.56 MHz contactless smart card encoding (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693), contact smart card encoding, and ISO magnetic stripe encoding on tracks 1, 2, and 3. This all-in-one solution eliminates the need for separate encoding devices.
How fast can the HDP5600 print ID cards?
Print speed varies by ribbon configuration: 7 seconds per card for single-color resin black (K*), 12 seconds for black with overlay (KO*), 24 seconds for full-color YMCKO*, and 31 seconds for full-color with dual black panels (YMCKOK*). These speeds are measured from card drop to output hopper and do not include encoding or PC processing time.
What ribbon options are available for color and monochrome printing?
We offer a comprehensive range of ribbon options including full-color YMCKO* (250 prints), YMCKOK* with dual black panels (200 prints), fluorescing color options YMCFKO* and YMCFKOK*, monochrome resin and dye-sublimation black (500-1000 prints), and specialty colors in green, blue, red, white, silver, and gold (1000 prints each). The printer also supports rewrite technology cards that require no ribbon.
What are the connectivity and system requirements for the HDP5600?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server, supporting Windows XP, Vista, Server 2003/2008, Windows 7, and Linux operating systems. The printer operates in temperatures from 65° to 80°F (18° to 27°C) with 20–80% non-condensing humidity, and includes FARGO Workbench diagnostic utility software with color matching capabilities. Contact us today to ensure compatibility with your specific IT environment.
