Fargo 93221 ID Card Printer
Full specifications (PDF)

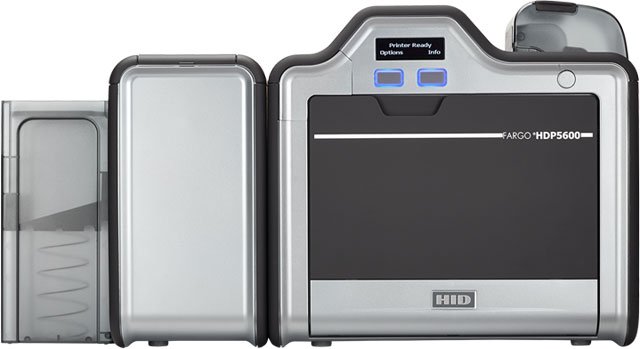

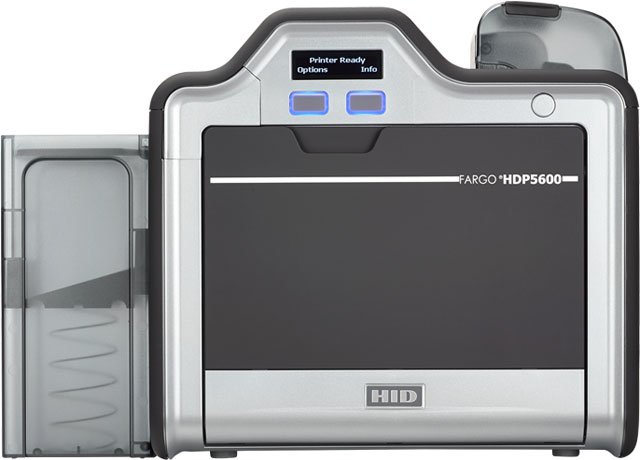

Fargo HDP5600 ID Card Printer Model Overview
The FARGO® HDP5600 High Definition Printer/Encoder combines precision with versatility, making it the ideal choice for organizations that require high-quality card printing. With a remarkable resolution of 600 dpi, the HDP5600 ensures sharper images and vibrant colors, enhancing your brand image. This dual-sided printer is modular and can be upgraded with lamination and encoding options to adapt to your needs. Enhanced with Wi-Fi® capabilities, it allows for seamless network printing in various environments, whether in retail chains or educational institutions, ensuring quick and efficient issuance of ID cards and smart cards.
Key Features
- High-Definition Printing: Achieves 600 dpi for crisp images and vibrant colors.
- Dual-Sided Printing/Encoding: Easily upgradeable for dual-sided applications.

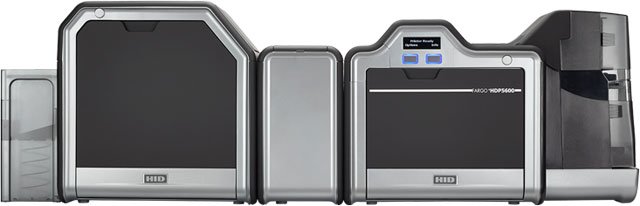

- Modular Design: Expandable with additional lamination and encoding modules.
- Wi-Fi® Capable: Network printing capability allows for flexible card issuance.
- Durable Card Production: Produces long-lasting cards resistant to wear and tampering.
Specifications
- Print Method: HDP Dye-Sublimation / Resin Thermal Transfer
- Resolution: 600 dpi (23.6 dots/mm) or 300 dpi (11.8 dots/mm)
- Print Speed:
- Up to 24 seconds per card (150 cards/hour, YMC with transfer)
- Up to 29 seconds per card (124 cards/hour, YMCK with transfer)
- Up to 40 seconds per card (90 cards/hour, YMCKK with transfer)
- Accepted Card Sizes: CR-80 (3.375" L x 2.125" W)
- Input/Output Capacity: 200 cards input capacity; 100 cards output capacity
- Software Drivers: Compatible with Windows 10/8/7/Vista/XP, Mac OS X, Linux
- Warranty: Three years, including one year of free loaner support (U.S. only)
Recommended Accessories
Category
- ID Card Printer Accessories (4)
- Miscellaneous (1)
- Plastic ID Card Printer Printhead (1)
Recommended Accessories for Model: Fargo 93221 ID Card Printer
Top ID Card Printer Accessories Purchased With Fargo 93221
-
Fargo MDP-03001 AccessoryPrinter Spare Parts, HID, Asy-Cover-Frt-W-Cables HDP5600Ships from vendor — chat for lead time$315.44 -
Fargo 089022 AccessoryPrinter Spare Parts, HID, Dual-Side Printing Module For HDP5000 And HDP5600 With Included 5125 Encoder Module PreinstalledShips from vendor — chat for lead time$1,820.69 -
Fargo PCA-00324 AccessoryPrinter Spare Parts, HID, Asy PCB Controller With Prog HDP5600 P3Ships from vendor — chat for lead time$1,641.44
Top Miscellaneous Purchased With Fargo 93221
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Top Plastic ID Card Printer Printhead Purchased With Fargo 93221
-
Fargo 86091 PrintheadID Card Printer Printheads, HID, Thermal Printhead HDP5000, HDP5600, 300Dpi And HDPiiShips from vendor — chat for lead time$590.09
Frequently Asked Questions
What printing resolution and speed does the Fargo HDP5600 offer?
The Fargo HDP5600 delivers 300 dpi (11.8 dots/mm) continuous tone printing with speeds ranging from 7 seconds per card for single-color resin black to 31 seconds per card for full-color with dual black panels. This resolution ensures superior text and image quality suitable for high-definition ID production in government, university, corporate, and healthcare environments.
What card types and sizes are compatible with the HDP5600?
The HDP5600 accepts standard CR-80 cards (3.375˝L x 2.125˝W) and CR-79 adhesive back cards, with a print area of up to 3.36˝L x 2.11˝W for edge-to-edge printing. The printer supports PVC or polyester cards with polished PVC finish, and card thickness ranges from .009˝ to .040˝ (9 mil to 40 mil).
What encoding options are available on the Fargo HDP5600?
The HDP5600 includes ISO Magnetic Stripe Encoding as a standard feature, supporting dual high- and low-coercivity encoding on tracks 1, 2, and 3. Additional encoding modules are available, including contact smart card encoders, contactless smart card encoders (iCLASS, MIFARE, ISO 14443 A/B, ISO 15693), and 125 kHz proximity readers.
What ribbon options does the HDP5600 support?
We offer multiple ribbon configurations for the HDP5600, including full-color YMCKO (250 prints), full-color with dual black panels YMCKOK (200 prints), single-color resin black (1,000 prints), and specialty options with fluorescing panels or rewrite technology. Each ribbon type delivers different print speeds and color capabilities to match your production needs.
Can the HDP5600 handle lamination, and what are the specifications?
Yes, the HDP5600 is available with a card lamination module that supports single-sided or dual-sided simultaneous lamination. When combined with the lamination module, the complete system dimensions are 18.9˝H x 18.7˝W x 9.2˝D and weighs 20 lbs, making it an all-in-one solution for secure ID production.
What connectivity and operating requirements does the HDP5600 have?
The HDP5600 features USB 2.0 and Ethernet connectivity with an internal print server for flexible deployment. It operates on 100-240 VAC, 50/60 Hz power supply and requires operating temperatures between 65° to 80° F with 20–80% non-condensing humidity. The printer includes a two-year warranty on both the unit and printhead with unlimited pass coverage on UltraCard™.
