Elo E967730 Touchscreen
Full specifications (PDF)

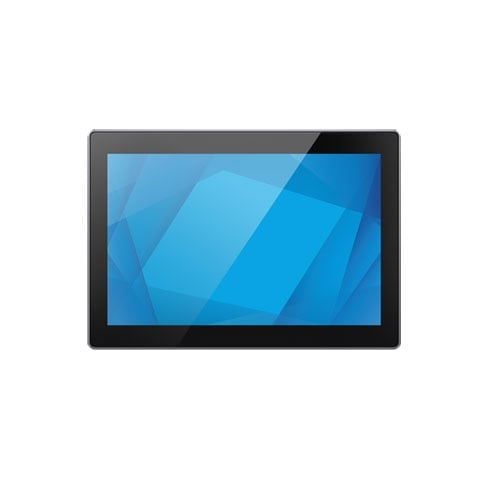

Elo 0704LS 7" Touchscreen Model Overview
Key features:
- 7-inch HD display for brilliant clarity
- Ultra-thin design with a narrow border
- TouchPro® PCAP technology supporting 10 touches
- Durable IK07 design with scratch-resistant glass
- USB-C interface for convenient connectivity
- Low blue light and flicker-free features
- Three-year warranty for peace of mind
Specifications:
- Color: Dark gray
- Diagonal Size: 7 inches / 177.8 mm
- Active Touch Area: 5.90" x 3.69"
- LCD Technology: Active matrix TFT LCD
- Touch Technology: TouchPro PCAP
- Number of Touches: 10
- Aspect Ratio: 16:10
- Native Resolution: 1280 x 800
- Brightness: 360 nits (TouchPro)
- Response Time: 35 msec
- Viewing Angle: 88° / 88°
- Contrast Ratio: 800:1
- Dimensions with Stand: 6.81" x 4.78" x 0.57"
- Weight: Unpackaged: 0.71 lbs
- Operating Temperature: 0° C to 40° C
- Humidity: 20% - 80%
- Warranty: 3 years
- MTBF: 50,000 hours
Recommended Accessories
Category
- Cables, Connectors, and Adapters (1)
- Mounting Hardware and Stands (2)
- Pos Workstation Accessories (2)
- Touchscreen Accessories (8)
Recommended Accessories for Model: Elo E967730 Touchscreen
Top Cables, Connectors, and Adapters Purchased With Elo E967730
-
Elo E129019 Cables, Connectors, and AdaptersCables, Connectors, and Adapters, Elo, USB-C to USB-C Cable KitIn Stock$44.83
Top Mounting Hardware and Stands Purchased With Elo E967730
-
Elo E045151 Mounting Hardware and StandsMounting Hardware & Stands, Elo, Pole Mount Bracket, Compatible with I-Series and 02-SeriesIn Stock$121.80 -
Elo E767159 Mounting Hardware and StandsMounting Hardware and Stands, ELO, Z10 POS Stand for 15-Inch I-Series 3 Slate with IntelItem on backorder — chat for lead time$135.34
Top Pos Workstation Accessories Purchased With Elo E967730
-
Elo E038989 POS Touch TerminalMounting Hardware & Stands, ELO, Rear Facing Display Pole Mount KitItem on backorder — chat for lead time$152.00 -
$39.10
Top Touchscreen Accessories Purchased With Elo E967730
-
Elo E047663 AccessoryMounting Hardware & Stands, ELO, Accessory 12-Inch Pole Mount Kit for I-Series and M-SeriesIn Stock$207.51 -
Elo E160104 AccessoryMounting Hardware & Stands, ELO, Accessory Table Top Stand for the 1002L and 10IIn Stock$186.47 -
Elo E047864 AccessoryMounting Hardware & Stands, ELO, Bolt Down 18-Inch Pole Mount Kit for I-Series and M-Series MonitorsIn Stock$241.51
Frequently Asked Questions
What are the display specifications of the Elo E967730 touchscreen?
The Elo E967730 features a 7-inch active matrix TFT LCD display with 1280 x 800 HD resolution and a 16:10 aspect ratio. It delivers 400 nits of brightness on the panel and 360 nits with TouchPro PCAP, with an 800:1 contrast ratio and ±88° viewing angles in both horizontal and vertical directions for excellent visibility from multiple angles.
What touch technology does the Elo E967730 use?
The Elo E967730 is equipped with TouchPro® PCAP (projected capacitive) touch technology that supports up to 10 simultaneous touches. This advanced touch technology enables responsive multi-touch interactions suitable for self-service kiosks, POS systems, and human-machine interfaces.
How is the Elo E967730 powered and connected?
The Elo E967730 uses a single USB Type-C connector that handles power, video, and touch data simultaneously, simplifying installation and reducing cable clutter. This unified connection makes it ideal for compact installations and mobile applications where space is limited.
What are the durability features of the Elo E967730?
The Elo E967730 is built with IK07 impact protection and features chemically strengthened, scratch-resistant glass to withstand high-traffic environments. It also carries multiple certifications including TÜV Rheinland (Low Blue Light, Flicker-Free), CE, FCC, UL, and RoHS compliance.
What is the physical size and weight of the Elo E967730?
The Elo E967730 measures 6.81" x 4.78" x 0.57" (173.06 mm x 121.56 mm x 14.6 mm) and weighs only 0.71 lbs (0.32 kg), making it ultra-compact and lightweight for flexible mounting in tight spaces. It supports 75mm VESA-compatible mounting for easy integration into existing systems.
What industries and applications is the Elo E967730 designed for?
The Elo E967730 is purpose-built for point-of-sale (POS) systems, self-service kiosks, human-machine interfaces (HMI), and digital signage applications. Its compact, ultra-thin design and robust construction make it ideal for high-traffic commercial environments where durability and responsive touch performance are essential.
