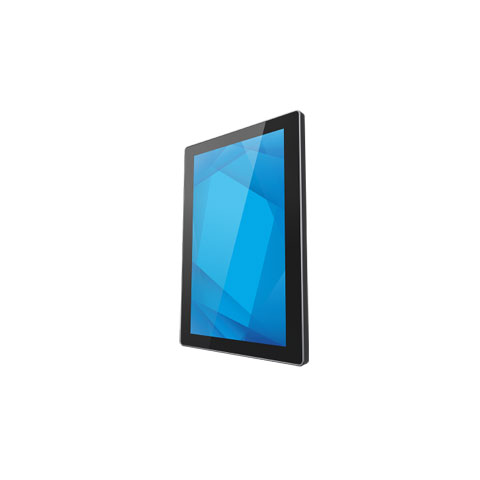

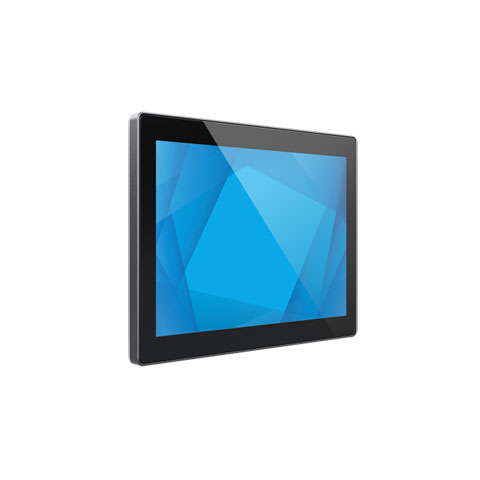

Elo 0704LS 7" Touchscreen
Seamless Interaction, Sleek Design.
Full specifications (PDF)
Price Match Guarantee
Found a better price? We'll match it within 60 days of your purchase.
Elo 0704LS 7" Touchscreen Options
-
Elo E967730 Touchscreen
Touchscreen Monitors, Elo 0704LS 7", 7-inch Wide LCD Monitor, HD 1280 x 800, Projected Capacitive 10-touch, USB Controller, Anti-Glare, Zero-Bezel, No Stand, USB-C Input, Gray, WorldwideIn Stock$334.81
Frequently Asked Questions
What touch technology does the Elo 0704LS use and how many simultaneous touches does it support?
The Elo 0704LS is equipped with TouchPro® PCAP (Projected Capacitive) technology that supports up to 10 simultaneous touch points. This advanced touch technology ensures responsive and accurate interaction, making it ideal for multi-user applications like self-service kiosks and interactive signage. We offer the 0704LS as a reliable solution for demanding commercial environments.
What connectivity options does the Elo 0704LS provide?
The Elo 0704LS features a USB-C interface that consolidates power, video, and touch signals into a single cable, streamlining setup and reducing clutter. This unified connectivity simplifies installation and reduces the number of cables required, making it an efficient choice for modern POS systems and kiosks. Contact us today for integration assistance with your existing infrastructure.
Is the Elo 0704LS durable enough for high-traffic retail and warehouse environments?
Yes, the Elo 0704LS features IK07-rated impact protection and chemically-strengthened, scratch-resistant glass designed to withstand demanding commercial environments. Its durable construction makes it well-suited for retail, POS systems, and warehouse applications where reliability is critical. We back this monitor with a 3-year warranty for added peace of mind.
What are the display specifications of the Elo 0704LS?
The Elo 0704LS features a 7-inch HD display with 1280 x 800 native resolution, 360 nits brightness, and an 800:1 contrast ratio. The active matrix TFT LCD technology with optical bonding delivers brilliant clarity and stunning visual performance. The 16:10 aspect ratio provides an optimal viewing experience for various commercial applications.
Does the Elo 0704LS offer eye-comfort features for extended use?
Yes, the Elo 0704LS includes TÜV Rheinland-certified low blue light and flicker-free technology to enhance user comfort during prolonged use. These features help reduce eye strain, making the monitor suitable for environments where staff or customers interact with the display for extended periods. Available from us with a 3-year warranty to ensure long-term reliability.
What are the operating temperature and humidity ranges for the Elo 0704LS?
The Elo 0704LS operates reliably in temperature ranges from 0°C to 40°C with humidity levels between 20% and 80%. These environmental specifications make it suitable for standard commercial indoor environments such as retail stores, logistics facilities, and warehouse operations. Visit barcodesinc.com for detailed technical specifications and deployment guidance.
Elo 0704LS 7" Touchscreen Model Overview
Key features:
- 7-inch HD display for brilliant clarity
- Ultra-thin design with a narrow border
- TouchPro® PCAP technology supporting 10 touches
- Durable IK07 design with scratch-resistant glass
- USB-C interface for convenient connectivity
- Low blue light and flicker-free features
- Three-year warranty for peace of mind
Specifications:
- Color: Dark gray
- Diagonal Size: 7 inches / 177.8 mm
- Active Touch Area: 5.90" x 3.69"
- LCD Technology: Active matrix TFT LCD
- Touch Technology: TouchPro PCAP
- Number of Touches: 10
- Aspect Ratio: 16:10
- Native Resolution: 1280 x 800
- Brightness: 360 nits (TouchPro)
- Response Time: 35 msec
- Viewing Angle: 88° / 88°
- Contrast Ratio: 800:1
- Dimensions with Stand: 6.81" x 4.78" x 0.57"
- Weight: Unpackaged: 0.71 lbs
- Operating Temperature: 0° C to 40° C
- Humidity: 20% - 80%
- Warranty: 3 years
- MTBF: 50,000 hours
