Elo E965017 Touchscreen

Part Number: E965017
Model: Parts
Add to My Shopping List Add to Compare
Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price

Quantity:

Product Highlights

View All
Screen Size Class
19"
Viewable Screen Size
19"
Screen Mode
WXGA+
Response Time
7.30 ms

Product Description:

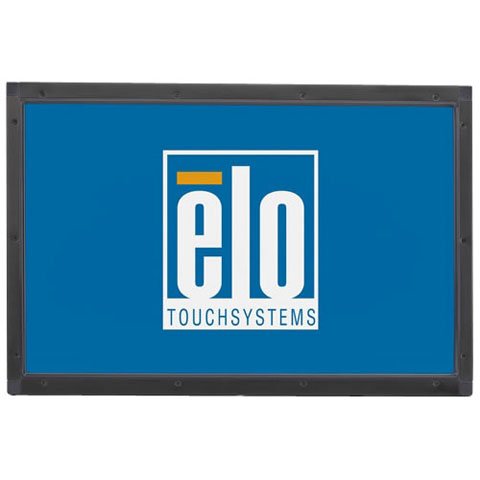

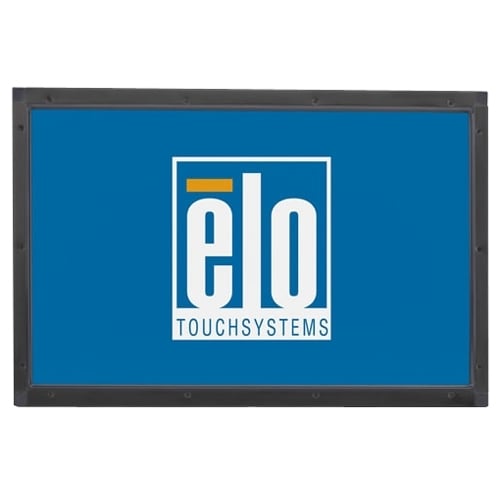

  Elo 1938L Open-Frame Touchscreen LCD Monitor - 19" - Surface Acoustic Wave - 1440 x 900 - 16:10 - Black
Explore all Elo Parts Accessories
Add to Quote
Elo E965017 Touchscreen
Elo E965017 Touchscreen
Elo E965017 Touchscreen
Elo E965017 Touchscreen
Elo E965017 Touchscreen
Elo E965017 Touchscreen Elo E965017 Touchscreen Elo E965017 Touchscreen Elo E965017 Touchscreen Elo E965017 Touchscreen

Elo Parts Accessory Model Overview

Products and parts from ELO.
Elo E965017 Touchscreen Overview

The 1938L open-frame touchmonitor delivers a cost-effective touch solution for OEMs and systems integrators, and complements the expanded family of Elo touch solutions for gaming and amusement, retail self-service and kiosk applications. This compact touchmonitor is "designed for touch," with proven expertise and reliability built-in, not added as an afterthought by altering an existing monitor.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
WXGA+
Response Time:
7.30 ms
Aspect Ratio:
16:10
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Video
Maximum Resolution:
1440 x 900
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Physical Characteristics
Product Color:
Black
Height:
11.7"
Width:
17.5"
Depth:
1.9"
Weight (Approximate):
10.48 lb
Miscellaneous
Package Contents:
  • 1938L Open Frame Touchscreen LCD Monitor
  • All Detachable Touch/Video Cables
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0741149301688, 7411493016882
UPC: 741149301688
EAN: 0741149301688, 7411493016882
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E965017 Touchscreen is also known as ELO-E965017 or E965017.
