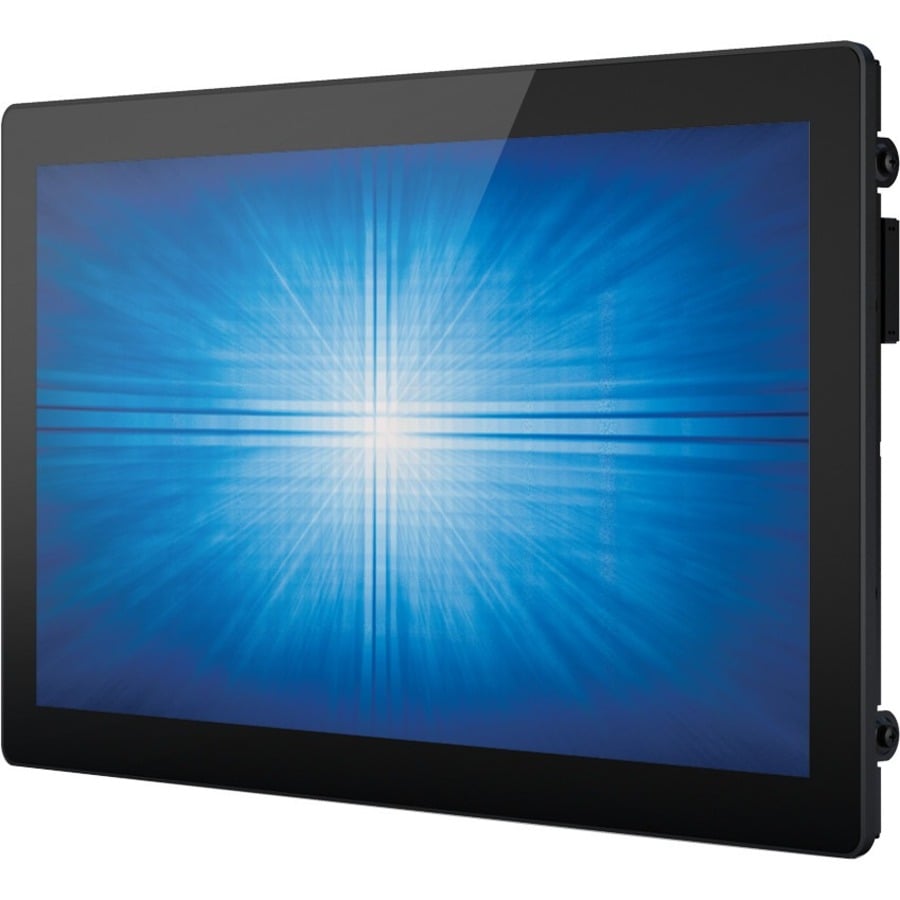

The Elo 2094L 19.5-inch Open-Frame Touch Display combines sleek design with impressive functionality. Engineered with cutting-edge LED backlighting, this touch monitor delivers exceptional image clarity while reducing energy consumption. Its versatile applications make it an ideal choice for kiosks, retail self-service, amusement gaming, and industrial automation. The durable touchscreen is sealed against dirt and liquids, ensuring reliable performance in various environments. With options for both single and multi-touch technologies, the 2094L promises a responsive and engaging user experience.
Key Features
Choice of Touch Technology: Available in IntelliTouch® Surface Acoustic Wave (SAW) or zero-bezel projected capacitive (PCAP).
LED Backlighting: Energy-efficient and sleek design enhances visual appeal.
178° Viewing Angles: Sharp colors and graphics in both portrait and landscape modes.
Durable Touchscreen: PCAP 2GS offers superior optical clarity and is designed for longevity.
Multi-Touch Capability: Supports up to ten simultaneous touches with Thru-glass functionality.
Comprehensive Agency Approvals: Ensures product safety and reliability.
Specifications
Model: 2094L
Color: Black
Active Display Area: 434.9 x 238.7 mm (17.12 x 9.40 inches)
Diagonal: 19.5 inches
Native Resolution: 1920 x 1080
Brightness: 250 nits (typical)
Contrast Ratio: 3000:1
Power Consumption: 20W ON, 1.5W SLEEP, 0.5W OFF
Operating Temperature: 0 °C to 40 °C (32 °F to 104 °F)
Weight: Unpackaged: 10.36 lb (4.7 kg)
Warranty: 3 years standard
Elo E328883 Touchscreen Overview

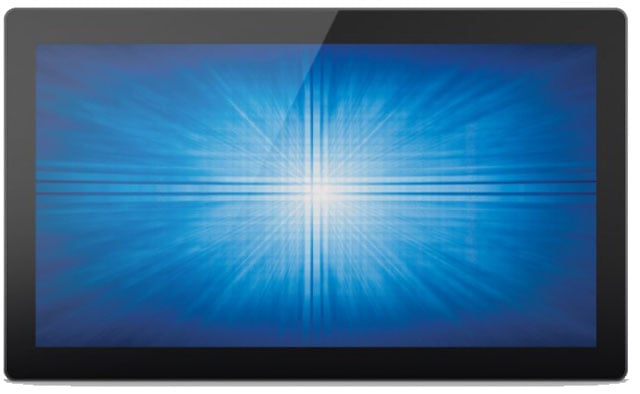

The Elo 2094L 19.5-inch open-frame LCD touchscreen features a slim design and narrow outside dimensions due to the state-of-the-art, energy-saving LED backlight, using less electricity to operate and generating less heat. This compact display is designed for touch, with proven Elo expertise and reliability built in. The 2094L provides stable, drift-free operation with outstanding image clarity and light transmission-for accurate touch responses and vivid images. Featuring a brilliant wide viewing angle panel, the open-frame touchscreen instantly grabs and holds the users' attention for kiosks, casino and amusement, retail self-service, and industrial automation environments.
Easily integrated.
The touchscreen is sealed against dirt, dust and liquids, which simplifies integration into the final enclosure. Projected capacitive (PCAP) units can be sealed into a solution and obtain an IP65 rating on the front side of the unit. With the design and tooling being controlled by Elo, long-lasting product availability can be expected as well as backwards compatibility where we can make it possible to help minimize additional enclosure costs.
Touch ready.
Available with a choice of industry-leading touch technologies, in single- or multi-touch technology, including IntelliTouch® single-touch surface acoustic wave (SAW), and our latest multi-touch TouchPro™ PCAP two-glass solution (2GS) technology has a zero-bezel that delivers both a 10-touch tablet-like experience along with two-touch thru-glass functionality-both modes support single or dual latex gloves as well as cloth gloves.
Commercial-grade.
The Elo open frame touchscreen display delivers the quality and reliability Elo is known for, and is backed by our three-year standard warranty. We design, build and are responsible for the complete solution with touch integrated from the start. Using our own touchscreens combined with our software and drivers, everything is designed to work together and is tested as part of our life testing processes. All of our products go through rigorous reliability testing (over 20 tests) to deliver 50,000 MTBF.
Other features.
Viewing angle of 178° (h) x 178° (v), for sharp colors and graphics in both portrait and landscape modes
Projected capacitive (PCAP) two glass solution (2GS) offers pristine optical clarity and touch durability that passes UL-60950 & IK-07 impact testing
10-touch TouchPro projected capacitive (PCAP) with two-touch thru-glass capabilities
What are the video connectivity options on the Elo E328883 2094L touchscreen?
The Elo 2094L open-frame touchscreen features multiple video interfaces including HDMI, VGA, and DisplayPort connections. This versatile connectivity allows you to integrate the display with various systems and equipment commonly found in kiosk, retail, and industrial automation environments. We include HDMI and VGA cables in the box to get you started right away.
Is the Elo 2094L suitable for self-service kiosk applications?
Yes, the Elo 2094L 19.5-inch open-frame touchscreen is specifically designed for commercial kiosk applications including self-service environments. Its brilliant wide viewing angle panel and proven drift-free touch response make it ideal for applications where users need to interact with the display from various angles and positions. The industrial-grade construction ensures reliable operation in high-traffic kiosk settings.
What touch technology does the Elo E328883 use?
The Elo 2094L features IntelliTouch single-touch technology with a dual serial/USB touch controller interface. This proven touch solution delivers accurate, drift-free touch responses that are essential for reliable kiosk and industrial automation applications. The touch interface is integrated directly into the open-frame design for seamless operation.
What display specifications does the Elo 2094L touchscreen offer?
The Elo 2094L delivers a 1920 x 1080 resolution with 16.7 million colors on a 19.5-inch WVA LCD panel. With 225 nits brightness (typical), a 3000:1 contrast ratio (typical), and a 16:9 aspect ratio, this display provides vivid images and excellent clarity for commercial and industrial applications. The LED backlight is energy-efficient, using less electricity and generating less heat than traditional backlighting.
What is included in the box when purchasing the Elo E328883?
The Elo 2094L comes complete with an HDMI cable, VGA cable, RJ45 OSD remote control, USB touch cable, quick install guide, side-mount brackets with screws, and documentation including the EEI label and Japan Class-B information sheet. Everything you need for installation and operation is included—no separate power brick is required.
Is the Elo 2094L suitable for industrial automation and healthcare environments?
Yes, the Elo 2094L is specifically engineered for industrial automation and healthcare applications as part of Elo's 90-Series product line. Its industrial-grade construction, reliable open-frame design, and proven drift-free operation make it well-suited for these demanding environments. The narrow outside dimensions and slim design also make it easy to integrate into space-constrained installations.
The Elo E328883 Touchscreen is also known as
ELO-E328883
or E328883.
