Elo E926109 Touchscreen

Part Number: E926109

Model: Entuitive 1529L

Discontinued See Replacement

Price Match Guarantee - We'll match any authorized retailer's price i

Quantity:

Product Highlights

View All

Screen Size Class

15"

Viewable Screen Size

15"

Screen Mode

XGA

Screen Surface

Anti-glare

Product Description:

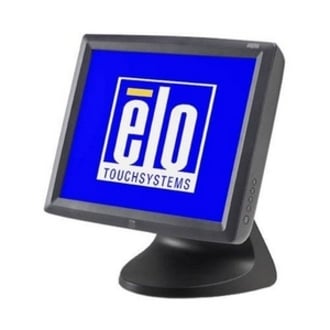

Elo 3000 Series 1529L Touch Screen Monitor - 15" - Surface Acoustic Wave - Dark Gray

Explore all Elo Entuitive 1529L Touchscreens

Add to Quote

Overview

Full specifications (PDF)

Elo Entuitive 1529L Touchscreen Model Overview

The Elo Entuitive 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing, a stable tilt base that is removable or reversible for wall mounting, a VESA mounting option, connectivity incorporated within the monitor, reducing the number of power bricks and communication cables, and side controls with lockout for public use. Elo's Entuitive 1529L touchmonitor offers a wide range connectivity, including serial and USB, and a choice of IntelliTouch surface wave, AccuTouch five-wire resistive or CarrollTouch infrared touch technologies. Also available is the Entuitive 1529L TouchComputer, a silent, fanless integrated all-in-one touchcomputer within the footprint of a 15" LCD monitor.

Elo E926109 Touchscreen Overview

Elo's 1529L touchmonitor expands the company's family of reliable, easily integrated, multifunction touch solutions and is now available with Elo's newest, breakthrough touch technology. The 1529L has been designed for touch from the ground up, with such features as spill-resistant sealing.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

15"

Viewable Screen Size:

15"

Screen Mode:

XGA

Screen Surface:

Anti-glare

Response Time:

8 ms

Aspect Ratio:

4:3

Horizontal Viewing Angle:

140°

Vertical Viewing Angle:

120°

Mount Type:

Desk Mountable
Wall Mountable

Features:

Security Lock

Horizontal Frequency:

60 Hz

Video

Maximum Resolution:

1024 x 768

Standard Refresh Rate:

60 Hz

Color Supported:

16.2 Million Colors

Contrast Ratio:

500:1

Brightness:

322 Nit

Audio

Speakers:

Yes

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Surface Acoustic Wave

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Serial Port:

Yes

Power Description

Input Voltage:

120 V AC
230 V AC

Operating Power Consumption:

20 W

Off-Mode Power Consumption:

2 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

75 x 75

Product Color:

Dark Gray

Height with Stand:

11.27"

Width with Stand:

13.99"

Depth with Stand:

10.44"

Weight (Approximate):

10.60 lb

Weight with Stand (Approximate):

14.40 lb

Miscellaneous

Package Contents:

3000 Series 1529L Touch Screen Monitor
AC Power Cable
Touch/Video/Accessory Cables

Additional Information:

Two watt/channel speakers located in display head

Platform Supported:

Environmentally Friendly:

Yes

Environmental Certification:

WEEE

Warranty

Limited Warranty:

3 Year

Item Numbers

GTIN: 0172302716269, 5711045327506, 7411493010538

UPC: 172302716269

EAN: 0172302716269, 5711045327506, 7411493010538

UNSPSC: 43211903
