Elo E880503 Touchscreen

Elo E012584 Touchscreen A newer version of this item is available.
It is replaced by the Elo E012584 Touchscreen.

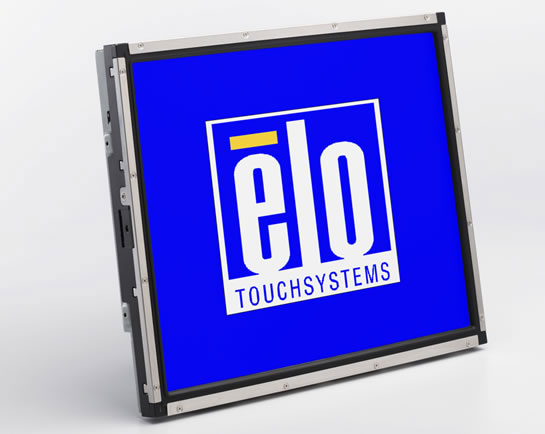

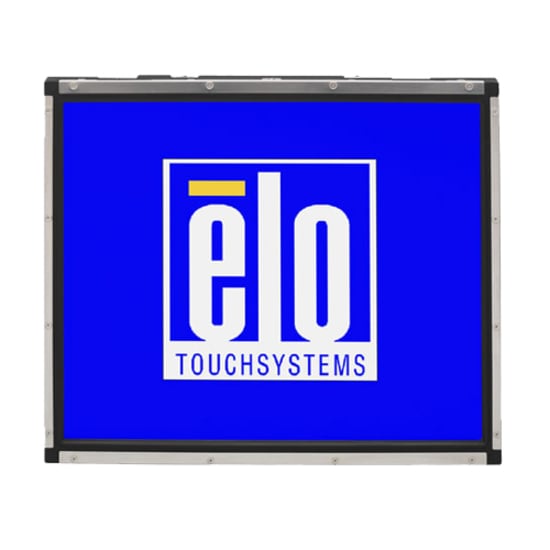

Elo 1739L - Elo 1739L 17" Open-frame LCD Touchscreen Monitor - 5:4 - 7.20 ms - 17" Class - Capacitive - 1280 x 1024 - SXGA - 16.7 Million Colors - 1,000:1 - 300 Nit - USB - VGA - Steel, Black - 3 Year
  • Explore a world loaded with potentially vivid entertainment outcomes with the Elo Open-frame LCD Touchscreen Monitor
  • Capacitive touchscreen technology is impenetrable to contaminants and liquids, for instance, dust, oil, grease and water globules
  • The SXGA touchscreen highlights SXGA display with the resolution of up to 1280 x 1024 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 300 Nit brightness
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Need a different version? See all Elo 1739L Touchscreens

Discontinued See Replacement
Add to Quote
Add to My Shopping List Add to Compare
Elo E880503 Touchscreen
Elo E880503 Touchscreen Elo E880503 Touchscreen
Elo E880503 Touchscreen
Elo E880503 Touchscreen
Full specifications (PDF)
Elo 1739L Touchscreen Model Overview
The Elo 1739L features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal. Available with clear glass IntelliTouch surface wave for the utmost in optical quality, the 1739L is ideal for kiosk applications.
Elo E880503 Touchscreen Overview

Elo chassis LCD monitors have a long-lasting product cycle because the enclosure is controlled by Elo specifications. Future panel improvements are therefore possible without external changes. The 1739L Open-frame Touchscreen LCD Monitor features a wide viewing angle panel along with a unique, injection-molded minibezel and virtually invisible watertight seal.

Full specifications (PDF)
Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
7.20 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Mount Type:
Bracket-mountable
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
300 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Capacitive
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Input Voltage:
  • 110 V AC
  • 220 V AC
Operating Power Consumption:
36 W
Physical Characteristics
VESA Mount Compatible:
Yes
Product Color:
  • Steel
  • Black
Height:
12"
Width:
14.5"
Depth:
1.9"
Weight (Approximate):
8.82 lb
Miscellaneous
Package Contents:
  • 1739L Open-frame Touchscreen LCD Monitor
  • Detachable Touch Cable
  • Video Cable
Environmentally Friendly:
Yes
Environmental Certification:
RoHS
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 7411493183034
EAN: 7411493183034
UNSPSC: 43211903
