Elo E855244 Touchscreen

Elo E328883 Touchscreen A newer version of this item is available.
It is replaced by the Elo E328883 Touchscreen.

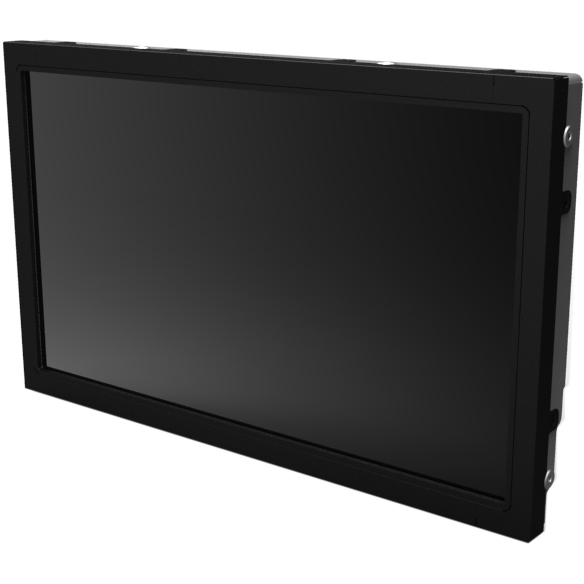

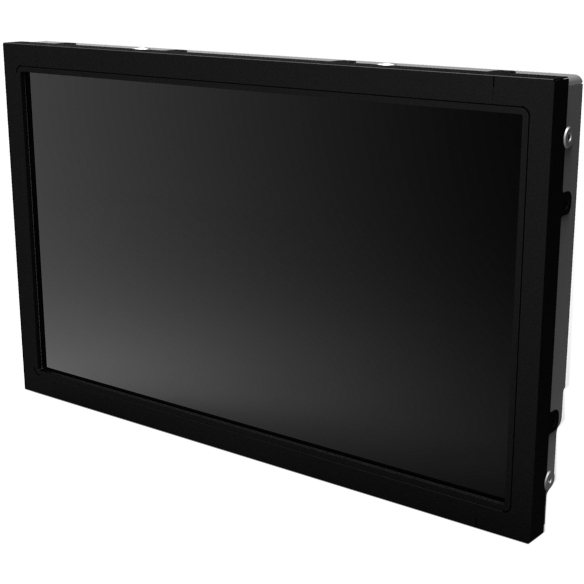

Elo 1940L - Elo 1940L 19" Open-frame LCD Touchscreen Monitor - 16:9 - 5 ms - 19" Class - IntelliTouch Surface WaveMulti-touch Screen - 1366 x 768 - WXGA - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Steel, Black - RoHS, China RoHS, WEEE - 3 Year
  • The open-frame lcd touchscreen monitor is simply ideal for clubhouse gaming, entertainment, and self-administration booth applications
  • The IntelliTouch Surface Wave touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • The WXGA touchscreen highlights WXGA display with the resolution of up to 1366 x 768 pixels
  • The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
  • Furnishes captivating visuals with about 250 Nit brightness levels
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More
Discontinued See Replacement
Add to Quote
Elo 1940L Touchscreen Model Overview
Available with either IntelliTouch Plus multi touch surface acoustic wave touchscreen technology or projected capacitive for a no bezel look, the 1940L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission for an accurate touch response and vivid images. The 1940L is an ideal solution for many public applications including gift registry, food ordering, airline check in, DVD and bill paying kiosks.
Elo E855244 Touchscreen Overview

Available with either IntelliTouch Plus multi-touch surface acoustic wave touchscreen technology or projected capacitive for a no bezel look, the 1940L provides stable "drift-free" operation with outstanding image clarity, resolution, and light transmission - for an accurate touch response and vivid images! The 1940L is an ideal solution for many public applications including gift registry, food ordering, airline check-in, DVD and bill-paying kiosks.

Wide-aspect displays like the Elo 1940L with 16:9 aspect ratio are easier to use and incorporate into commercial and industrial environments than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred where a larger touch activated surface area is desired. Increasingly popular in public venue environments these displays deliver a high-definition cinematic-like experience. The new 1940L features an energy-saving LED panel, 170°(h) x 160°(v) viewing angle and 1000:1 contrast ratio for a bright display in a thin, compact, space-saving mechanical design.

Technical Information
Screen Size Class:
19"
Viewable Screen Size:
19"
Screen Mode:
WXGA
Response Time:
5 ms
Aspect Ratio:
16:9
Horizontal Viewing Angle:
170°
Vertical Viewing Angle:
160°
Mount Type:
Rack-mountable
Backlight Technology:
LED
Video
Maximum Resolution:
1366 x 768
Standard Refresh Rate:
60 Hz
Color Supported:
16.7 Million Colors
Contrast Ratio:
1,000:1
Brightness:
250 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
IntelliTouch Surface Wave
Multi-touch Screen:
Yes
Interfaces/Ports
DVI:
Yes
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
25 W
Standby Power Consumption:
2 W
Off-Mode Power Consumption:
1 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
75 x 75
Product Color:
  • Steel
  • Black
Height:
10.6"
Width:
17.6"
Depth:
1.5"
Weight (Approximate):
7.40 lb
Miscellaneous
Platform Supported:
PC
Environmentally Friendly:
Yes
Environmental Certification:
  • RoHS
  • China RoHS
  • WEEE
Warranty
Limited Warranty:
3 Year
Item Numbers
GTIN: 0013686010591, 0741149328791, 5711045449451
UPC: 013686010591, 741149328791
EAN: 0013686010591, 0741149328791, 5711045449451
UNSPSC: 43211903
Questions? Get help from
a POS Expert!

What is your POS application?

The Elo E855244 Touchscreen is also known as ELO-E855244 or E855244.
