Elo E832132 Touchscreen

Elo 1715L - 17" LCD Touchscreen Monitor - 5: 4 - 25 ms - 17" Class - Surface Acoustic Wave - 1280 x 1024 - SXGA - 16.2 Million Colors - 800: 1 - 280 Nit - USB - VGA - Dark gray
  • The 800:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
  • Enjoy crisp content and energetic hues with the 280 Nit brightness
  • The Surface Acoustic Wave (SAW) touchscreens comprise of a glass overlay with the transmitting and accepting piezoelectric transducers for the X and Y-axis
  • VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs
Read More

Full specifications (PDF)

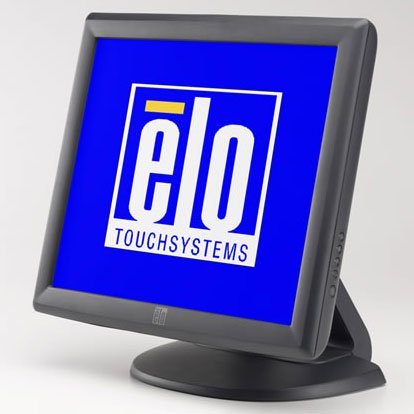

17" Flat Panel Desktop Touch Monitor in Dark gray
The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solution. It packs Elo's quality and reliability into an integrated, affordable touchmonitor featuring IntelliTouch pure glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications. This monitor is "designed for touch" with a sealed touchscreen and stable tilt base along with a long lasting product cycle and dual serial/USB interface.
Elo E832132 Overview

The 1715L touchmonitor is designed, developed and built to provide the most cost-effective touch solutions for system integrators and VARs. It packs Elo quality and reliability into an integrated, affordable touch monitor.

Full specifications (PDF)

Technical Information
Screen Size Class:
17"
Viewable Screen Size:
17"
Screen Mode:
SXGA
Response Time:
25 ms
Aspect Ratio:
5:4
Horizontal Viewing Angle:
160°
Vertical Viewing Angle:
160°
Video
Maximum Resolution:
1280 x 1024
Standard Refresh Rate:
60 Hz
Color Supported:
16.2 Million Colors
Contrast Ratio:
800:1
Brightness:
280 Nit
Touchscreen Information
Touchscreen:
Yes
Touchscreen Type:
Surface Acoustic Wave
Interfaces/Ports
USB:
Yes
VGA:
Yes
Power Description
Operating Power Consumption:
50 W
Physical Characteristics
VESA Mount Compatible:
Yes
VESA Mount Standard:
100 x 100
Color:
Dark Gray
Weight (Approximate):
15.20 lb
Item Numbers
GTIN: 0741149318549, 7411493185496
UPC: 741149318549
EAN: 0741149318549, 7411493185496
UNSPSC: 43211903


The Elo E832132 is also known as Elo Touch Systems ELO-E832132 .
