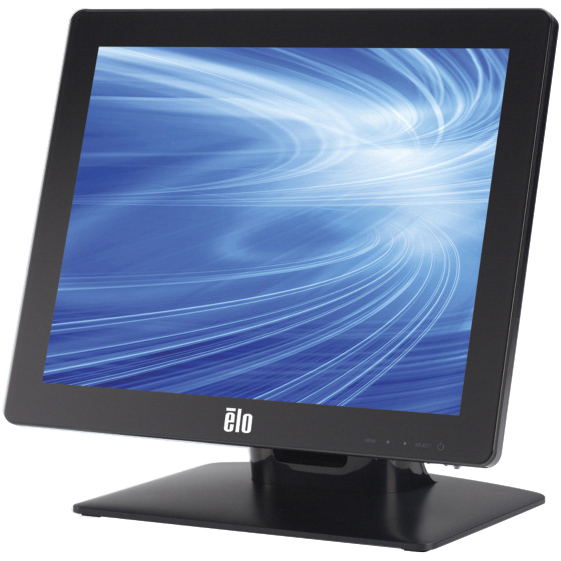

The 1717L 17-inch LED Desktop Touchmonitor is designed for heavy public use, combining a sleek appearance with advanced touch technology. Its rugged, modern form factor makes it an ideal solution for high-traffic environments such as retail outlets and hospitality settings. Equipped with options like AccuTouch resistive and IntelliTouch surface acoustic wave, this touchmonitor not only enhances interaction but also ensures reliability and durability. Enjoy power efficiency with 40% energy savings thanks to LED technology while benefiting from a standard three-year warranty.
Key Features:
Edge-to-edge Zero-bezel: AccuTouch resistive and iTouch surface acoustic wave
Antiglare or Clear glass
Black or White color options
Built for Touch Reliability
40% Energy Savings using LED Technology
Integrated cable management
Space-saving design
Desktop, wall or VESA mounting
Specifications:
Model: 1717L
Color: Black or White
Active Display Area: 13.3 x 10.6 inches / 338 x 270 mm
Monitor Dimensions (with stand): 15.4 x 8.5 x 14.2 inches / 392 x 215 x 361 mm
Monitor Thickness: 1.7 inches / 43 mm
Diagonal Size: 17.0"
Native Resolution: 1280 x 1024
Brightness: 250 nits (LCD Panel)
Power Consumption: 20W (Typical ON), 1.8W (Sleep), 1.4W (Off)
Weight: 5.4 kg / 11.9 lb.
Touch Interface: Serial (RS232) and USB
Warranty: 3 years standard
Elo E179069 Touchscreen Overview
The 1717L zero-bezel touchmonitor is built to withstand the rigors of continuous public use with a rugged, "built for touch" industrial design. It delivers style and performance with a wide variety of features for a higher level of functionality. It is well suited for public venues where point-of-sale (POS), point-of-information (POI), point-of-service, shelf-level and countertop interactive digital signage, loyalty systems, kiosk information systems are found.
The optional 3-track magnetic stripe reader (MSR), programmable to either HID or Keyboard Emulation, is easily installed by the user, providing an elegant, integrated solution and eliminating the need for external brackets or attachments. The 1717L features two leading zero-bezel touch touchscreen technologies for a smooth, easy-clean surface: AccuTouch five-wire resistive technology, the most widely used for retail applications and proven to survive splashing liquids, food and grease; iTouch pure-glass surface wave technology, for the ultimate in optical quality for dry retail and hospitality applications.
What touchscreen technologies are available for the Elo 1717L?
The Elo 1717L offers a choice of four touchscreen technologies to suit different environments. AccuTouch five-wire resistive is ideal for retail and hospitality settings where liquid, food, and grease exposure is common. For dry applications requiring superior optical quality, both IntelliTouch surface acoustic wave (SAW) and IntelliTouch zero-bezel options are available. Contact us today to select the right touch technology for your application.
Is the Elo 1717L suitable for point-of-sale systems?
Yes, the Elo 1717L is well-suited for point-of-sale, point-of-information, point-of-service, interactive signage, and loyalty systems. Its rugged built-for-touch design is engineered to withstand the rigors of continuous public use in retail and hospitality environments. Visit barcodesinc.com to explore how this touchscreen monitor can enhance your POS deployment.
What mounting options does the Elo 1717L support?
The Elo 1717L offers multiple mounting options for installation flexibility, including wall- and pole-mount via standard VESA mount patterns, as well as tabletop use with the included desktop stand. The monitor features capped through-mount holes on the base to ensure table-top security. We offer the stand base assembly and filler plate as included accessories to support your preferred installation method.
Does the Elo 1717L include a magnetic stripe reader?
The Elo 1717L offers an optional three-track magnetic stripe reader (MSR) that is easily installed by the user and programmable to either HID or Keyboard Emulation (USB only). This integrated solution eliminates the need for external brackets or attachments, providing a clean, professional appearance. Contact us today to configure your unit with or without MSR capability.
What are the display specifications for the Elo 1717L?
The Elo 1717L features a 17-inch LCD touchscreen with a 5:4 aspect ratio, 1280 x 1024 SXGA resolution, and 16.7 million colors. It delivers 225 nits brightness (typical) with LED backlighting and a 1000:1 contrast ratio (typical). The zero-bezel design provides a modern, sleek appearance suitable for retail and hospitality applications.
What connectivity options are included with the Elo 1717L?
The Elo 1717L includes VGA video interface and RS232 Serial/USB touch controller interface for flexible connectivity. The package comes with a VGA cable (DB-15 Male to DB-15 Male), USB cable (USB Type A Plug to USB Type B Plug), and power cable with IEC 60320-C5 connector. This multi-interface design ensures compatibility with a wide range of POS and retail systems available from us.
The Elo E179069 Touchscreen is also known as
ELO-E179069
or E179069.
Full specifications (PDF)
