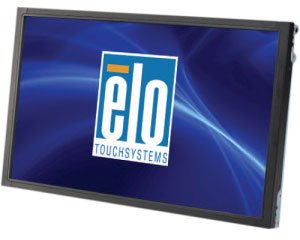

Elo E811441 Touchscreen

A newer version of this item is available.
It is replaced by the Elo E330429 Digital Signage Display.

Elo 2243L - Elo 2243L 22" Open-frame LCD Touchscreen Monitor - 16:9 - 5 ms - 22" Class - CapacitiveMulti-touch Screen - 1920 x 1080 - Full HD - 16.7 Million Colors - 1,000:1 - 250 Nit - LED Backlight - DVI - USB - VGA - Black

Capacitive touchscreen technology is impenetrable to contaminants and liquids, for instance, dust, oil, grease and water globules
The Full HD screen size with 1920x1080 resolution provides the native display of a Full HD video source without any degradation due to down-sampling technologies
The 1,000:1 contrast ratio produces enhanced sharpness and shading accuracy in each picture
LED backlight enhances the display performance to deliver an outstanding color range and contrast ratio
Furnishes captivating visuals with about 250 Nit brightness levels
VESA mount compatibility allows you to mount the touch screen on a wall or with a stand depending on your specific needs

Need a different version? See all Elo 2243L Touchscreens

Discontinued See Replacement

Chat Now for Qty Discount

Add to Quote

Overview

Full specifications (PDF)

Elo 2243L Touchscreen Model Overview

The 22" ELO 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the ELO 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

Elo E811441 Touchscreen Overview

The Elo TouchSystems 2243L open-frame LCD touchmonitor with its slim design and narrow outside dimensions gives kiosk integrators an edge in developing the most aesthetically pleasing products. Wide-aspect displays like the Elo 2243L are easier to use and incorporate than traditional open-frame touchmonitors. Wide-screen format displays allow extra content on the screen and are quickly becoming preferred in casino gaming, amusement and entertainment settings and are increasingly popular in public venue environments due to the high-definition cinematic-like experience. Typical applications for the 2243L include: gaming and amusement, information kiosks and self-service, as well as interactive digital signage applications.

Detailed Specs

Full specifications (PDF)

Technical Information

Screen Size Class:

22"

Viewable Screen Size:

22"

Screen Mode:

Full HD

Response Time:

5 ms

Aspect Ratio:

16:9

Horizontal Viewing Angle:

170°

Vertical Viewing Angle:

160°

Mount Type:

Rack-mountable

Backlight Technology:

LED

Video

Maximum Resolution:

1920 x 1080

Color Supported:

16.7 Million Colors

Contrast Ratio:

1,000:1

Brightness:

250 Nit

Touchscreen Information

Touchscreen:

Yes

Touchscreen Type:

Capacitive

Multi-touch Screen:

Yes

Interfaces/Ports

DVI:

Yes

USB:

Yes

VGA:

Yes

Power Description

Operating Power Consumption:

25 W

Standby Power Consumption:

2.20 W

Off-Mode Power Consumption:

1.10 W

Physical Characteristics

VESA Mount Compatible:

Yes

VESA Mount Standard:

100 x 100

Product Color:

Black

Height:

11.7"

Width:

20.2"

Depth:

1.7"

Weight (Approximate):

10.58 lb

Item Numbers

GTIN: 0118662757337, 0741149331067

UPC: 118662757337, 741149331067

EAN: 0118662757337, 0741149331067

UNSPSC: 43211903

Reviews

Q&A

Accessories

Questions? Get help from
a POS Expert!

The Elo E811441 Touchscreen is also known as ELO-E811441 or E811441.
